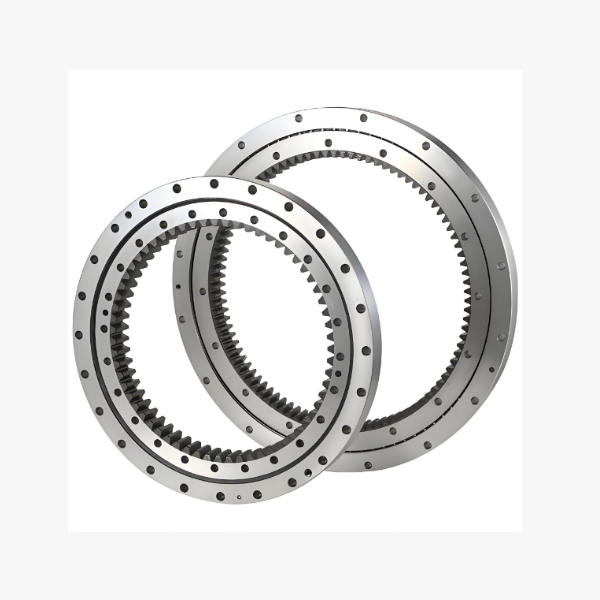

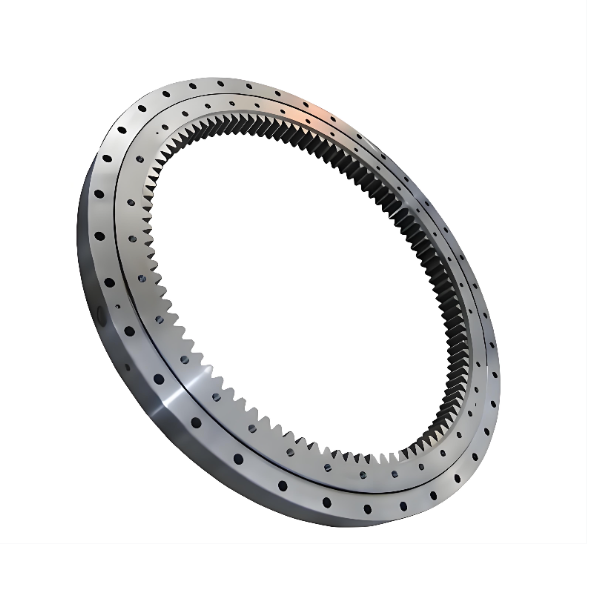

Internal Gear Type Double Row Reducing Ball Slewing Bearing

Internal Gear Type Double Row Reducing Ball Slewing Bearing
Internal Gear Type Double Row Reducing Ball Slewing BearingInternal Gear Type Double Row Reducing Ball Slewing BearingInternal Gear Type Double Row Reducing Ball Slewing Bearing
    In the race to miniaturize machinery without compromising power, the exposure of critical components is often the weakest link. While external gears offer accessibility, they are vulnerable to debris, impact, and contamination in tight spaces. The Internal Gear Type Double Row Reducing Ball Slewing Bearing solves this by tucking the drive mechanism safely inside the bearing’s structure.
Request a Quote
Custom slew bearing for Spain customerCustom slew bearing for Spain customer
Custom slew bearing for UnitedKingdom customerCustom slew bearing for UnitedKingdom customer
Slew bearing for Brazll customerSlew bearing for Brazll customer
Slewing bearings exported to RusslaSlewing bearings exported to Russla
Slewing bearings for UnitedStates customerSlewing bearings for UnitedStates customer
Slewing ring exported to Southeast AsiaSlewing ring exported to Southeast Asia
Slewing ring exported to Southwest AsiaSlewing ring exported to Southwest Asia
Slewing ring exported to North AmericaSlewing ring exported to North America
Slewing ring exported to South AmericaSlewing ring exported to South America
Slewing ring exported to South AfricaSlewing ring exported to South Africa
Slew bearing for India customerSlew bearing for India customer
Slew bearing for Latin America customerSlew bearing for Latin America customer
Slewing bearing for Türkiye customerSlewing bearing for Türkiye customer
Slewing bearing for Uzbekistan customerSlewing bearing for Uzbekistan customer
Slewing ring exported to South KoreaSlewing ring exported to South Korea
Slewing ring exported to MexicoSlewing ring exported to Mexico
Custom slew bearing for Mexico customerCustom slew bearing for Mexico customer
Custom slew bearing for Italy customerCustom slew bearing for Italy customer
Custom slew bearing for Vietnam customerCustom slew bearing for Vietnam customer
Slewing bearing for Europe customerSlewing bearing for Europe customer


Product Series Overview: Slim, Strong, and Secure

Our internal gear reducing ball slewing bearing series is designed for applications where the rotation mechanism must be invisible to the outside world yet capable of heavy lifting.
  • Reduced Cross-Section Architecture: Utilizing high-strength alloy steels and optimized heat treatment, we achieve a significantly thinner axial height compared to standard bearings of similar load capacity. This "reducing" design allows for sleeker product profiles and lower centers of gravity.
  • Protected Internal Gearing: The gear teeth are cut into the inner diameter of the outer ring (or outer diameter of the inner ring, depending on configuration), shielding them from dust, chips, and accidental impact. This is crucial for clean rooms, food processing, and outdoor automated units.
  • Double-Row Load Stability: Two independent rows of balls handle axial, radial, and moment loads simultaneously. This dual-path design ensures exceptional rigidity and prevents tilting, even when the bearing profile is ultra-slim.
  • Seamless Motor Integration: The internal gear allows for a central motor mount or a compact pinion arrangement within the bore, leading to cleaner cable management and a more balanced mechanical layout.


Key Features: Precision Engineering for Demanding Spaces

Why specify an internal gear type double row reducing ball slewing bearing? The benefits extend far beyond simple size reduction:
  1. Superior Contamination Protection: The biggest advantage of internal gearing is safety. The gear teeth are enclosed within the bearing assembly, making them immune to external debris, water spray, and physical contact. This drastically reduces maintenance needs and extends service life in dirty or wet environments.
  2. Maximized Space Efficiency: The reducing ball design shrinks the axial dimension without sacrificing load ratings. This is perfect for applications with strict height limitations, such as under-floor robotics, portable medical devices, or aerospace actuators.
  3. High Torque Density: Despite the slim profile, the double-row configuration provides massive contact area for load distribution. This results in high torque capacity and excellent resistance to overturning moments, ensuring precise positioning under load.
  4. Quiet and Smooth Operation: Internal gear meshes often operate more quietly than external counterparts due to better lubrication retention and reduced noise radiation. Combined with our precision-ground raceways, this ensures whisper-quiet rotation essential for medical and office automation.
  5. Customizable Gear Geometry: We tailor the internal gear module, pressure angle, and tooth profile to match your specific motor and drive requirements. Whether you need a standard involute profile or a custom modification for backlash control, we engineer it to fit.


Applications: Powering the Invisible Mechanics

The internal gear double row reducing slewing bearing is the preferred choice for sophisticated, space-constrained machinery:
  • Collaborative Robots (Cobots) & Industrial Arms: Ideal for wrist and elbow joints where the motor can be housed centrally, protecting the gear train while allowing for a slender, human-safe arm design.
  • Medical Imaging & Surgical Tables: Provides the smooth, sterile, and vibration-free rotation required for CT scanners, C-arms, and operating tables, where exposed gears are a hygiene risk.
  • Semiconductor & Food Processing Equipment: The enclosed gear design meets strict hygiene standards by preventing particle generation and allowing for easy wash-downs without damaging the drive mechanism.
  • Automated Warehouse Systems (AGVs/AMRs): Used in steering columns and lift mechanisms where low height and protection from floor debris are critical for uninterrupted operation.
  • Satellite & Aerospace Antennas: Offers a lightweight, compact solution for tracking systems that must withstand launch vibrations and operate reliably in vacuum or extreme temperatures.
  • Compact Surveillance & Radar Systems: Enables 360-degree rotation in a low-profile package, protecting the drive gears from weather and vandalism.
