Innovative Technology & Key Features

Designing a three-row roller slewing bearing is an exercise in managing extreme stress concentrations. Here is how our engineering team ensures these giants perform flawlessly under pressure:

1. Independent Load Path Architecture

The core innovation is the physical separation of the three roller rows. The axial row uses long cylindrical rollers to resist vertical thrust, while the two radial rows are arranged at 90° to each other to capture horizontal forces and overturning moments. This design prevents load interference, meaning a shock in the radial direction doesn't compromise the axial capacity. It maximizes the utilization of every millimeter of the raceway.

2. Vacuum-Degassed Heavy-Section Steel

For bearings of this magnitude, material purity is non-negotiable. We use premium vacuum-degassed alloy steels (42CrMo4, 50Mn, Q345E) specifically formulated for heavy sections. This process removes hydrogen and oxygen inclusions that could act as crack initiation points under cyclic heavy loading. Our rings are forged from solid billets, ensuring a continuous grain flow that follows the contour of the ring for maximum toughness.

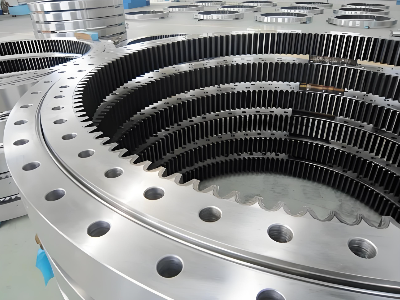

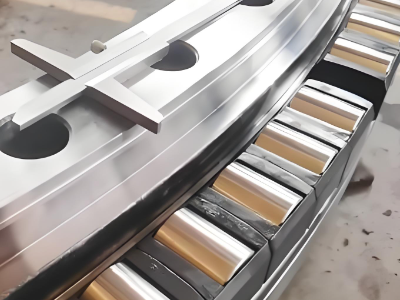

3. Precision Roller Matching & Grouping

Not all rollers are created equal. In our assembly process, cylindrical rollers are precision-measured and grouped by diameter tolerance within microns. These matched sets are installed into their respective rows to ensure uniform load sharing. This eliminates "hot spots" where a single oversized roller might carry disproportionate stress, significantly extending the slewing bearing's fatigue life.

4. Deep Induction Hardening with Controlled Depth

The raceways undergo a rigorous induction hardening process, achieving a surface hardness of 58-62 HRC with a controlled depth of 4-6mm. Crucially, we maintain a soft, ductile core (<30 HRC) to absorb shock loads without brittle fracture. For the largest diameters, we utilize specialized scanning equipment to verify hardness consistency across the entire circumference, ensuring no weak zones exist.

5. Robust Multi-Stage Sealing for Harsh Environments

Given their application in mining and marine sectors, these bearings face brutal conditions. Our sealing system features a multi-labyrinth design combined with high-tensile nitrile rubber lips and optional steel scraper rings. This configuration creates a tortuous path for contaminants, effectively blocking dust, slurry, and saltwater while retaining grease even under high-pressure washing.

Technical Parameters

Slewing Bearing Types: Why Go Triple Row?

• Single Row Ball: Best for light loads and compact spaces. Limited moment capacity.
• Double Row Ball: Good for medium loads with combined axial/radial needs. A balance of size and power.
• Triple Row Roller (Our Specialty): The ultimate solution for heavy-duty slewing bearings. When the overturning moment is the dominant design constraint, nothing beats the three-row roller design. It offers the highest load-to-size ratio for massive structures. While taller than ball bearings, its ability to handle gigantic loads makes it the only viable option for cranes over 500 tons, large wind turbines, and heavy mining shovels.

Application Fields

Our triple row roller slewing rings are the backbone of industries where failure is not an option:

Heavy-Lift Cranes & Maritime Engineering

From floating cranes lifting offshore platform modules to land-based crawler cranes erecting skyscrapers, these bearings support immense boom loads. Their ability to handle high tilting moments ensures stability even when the load is extended far from the center of rotation.

Wind Energy (Multi-MW Turbines)

As wind turbines grow to 10MW, 15MW, and beyond, the yaw and pitch systems face unprecedented forces. Our triple row bearings are widely used in the main yaw drives of offshore wind farms, where they must withstand constant cyclic loading from wind gusts and wave action while maintaining precise alignment.

Mining & Excavation

Large hydraulic mining shovels and bucket-wheel excavators operate in some of the harshest environments on earth. Our bearings are designed to resist abrasive dust, heavy shock loads from digging, and continuous 24/7 operation. The robust sealing system is critical here to prevent premature failure.

Port & Ship-to-Shore (STS) Cranes

STS cranes move thousands of containers daily. The rotating base of these giants relies on triple row roller bearings to handle the dynamic loads of lifting and swinging heavy containers across the dock. Reliability here directly impacts port throughput.

Amusement Parks (Super-Sized Rides)

While smaller rides use ball bearings, the world's largest Ferris wheels (like the London Eye or High Roller) and giant observation decks require the sheer strength of triple row rollers to support the weight of fully loaded passenger capsules against strong winds.

Radar & Defense Systems

Large phased-array radar antennas and missile launch systems require absolute stability. The high rigidity of our bearings ensures that heavy antenna arrays remain perfectly level and oriented, regardless of wind speed or vehicle movement.

Customization Solutions

• Ultra-Large Diameter Manufacturing: We have the capability to forge and machine rings exceeding 5 meters in diameter, catering to the next generation of offshore wind turbines and super-cranes.
• Specialized Gear Integration: We can integrate massive helical or herringbone gears directly into the outer or inner ring, optimizing tooth geometry for high-torque, low-speed slew drives.
• Extreme Environment Packages: For Arctic mining or tropical offshore platforms, we customize seal materials (Viton, Silicone), apply specialized anti-corrosion coatings (Zinc-Nickel, Duplex), and fill with synthetic greases rated for extreme temperatures.
• Sensor-Ready Designs: We can machine integrated mounting pockets for absolute encoders, load cells, and tilt sensors, facilitating Industry 4.0 predictive maintenance and real-time load monitoring.
• Split-Ring Designs: For applications where installation space is limited and a solid ring cannot be fitted, we offer split-ring configurations that bolt together on-site without compromising load capacity.

Why Choose Us?

1. True Heavy-Industry Capability: We are not a light-machine shop. Our facility is equipped with large-scale forging presses, deep-carburizing furnaces, and CNC lathes capable of handling 5-meter+ diameters. We have the physical capacity to build what others can only dream of.
2. Engineering-Led Quality Control: Our QC goes beyond simple dimensional checks. We perform ultrasonic testing (UT) on raw materials, magnetic particle inspection (MPI) on raceways, and full-load simulation testing on prototypes. Every bearing comes with a comprehensive digital dossier.
3. Cost-Efficiency Without Compromise: By controlling the entire supply chain from steel melting to final assembly, we offer pricing that is highly competitive against Western brands, without sacrificing the material purity or heat treatment standards required for safety-critical applications.
4. Global Project Logistics: Shipping a 10-ton bearing requires expertise. We handle all aspects of heavy-lift logistics, including specialized crating, ocean freight booking, and customs clearance, ensuring your equipment arrives on time and damage-free.
5. Long-Term Partnership Mindset: We view ourselves as an extension of your engineering team. We offer lifetime technical support, spare parts availability guarantees, and on-site installation guidance if needed.
