Made In China Dual Worm Gear Rotary Drive

Made In China Dual Worm Gear Rotary Drive
Made In China Dual Worm Gear Rotary Drive

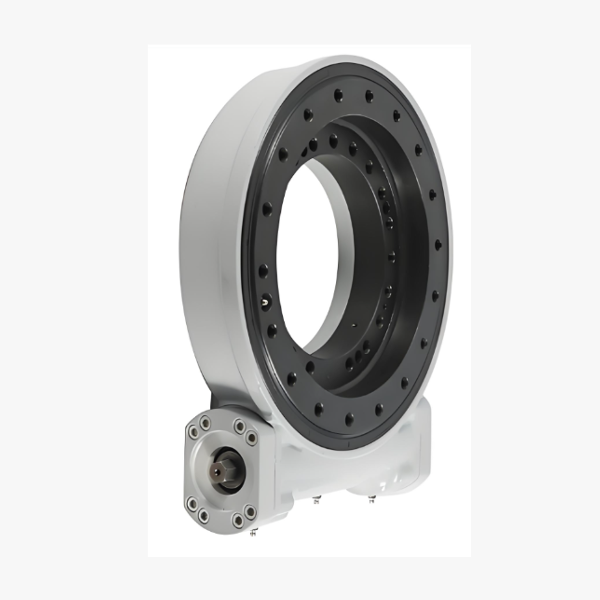

    Our dual worm gear rotary drive utilizes a sophisticated double-enveloping architecture where both the worm and the wheel feature concave profiles. This design creates a multi-point contact zone that distributes loads far more effectively than traditional single-worm or cylindrical gear systems. The result is a compact unit capable of handling shock loads that would fracture conventional drives, all while maintaining a natural, mechanical self-lock that holds position without brakes.
Request a Quote
Custom slew bearing for Spain customerCustom slew bearing for Spain customer
Custom slew bearing for UnitedKingdom customerCustom slew bearing for UnitedKingdom customer
Slew bearing for Brazll customerSlew bearing for Brazll customer
Slewing bearings exported to RusslaSlewing bearings exported to Russla
Slewing bearings for UnitedStates customerSlewing bearings for UnitedStates customer
Slewing ring exported to Southeast AsiaSlewing ring exported to Southeast Asia
Slewing ring exported to Southwest AsiaSlewing ring exported to Southwest Asia
Slewing ring exported to North AmericaSlewing ring exported to North America
Slewing ring exported to South AmericaSlewing ring exported to South America
Slewing ring exported to South AfricaSlewing ring exported to South Africa
Slew bearing for India customerSlew bearing for India customer
Slew bearing for Latin America customerSlew bearing for Latin America customer
Slewing bearing for Türkiye customerSlewing bearing for Türkiye customer
Slewing bearing for Uzbekistan customerSlewing bearing for Uzbekistan customer
Slewing ring exported to South KoreaSlewing ring exported to South Korea
Slewing ring exported to MexicoSlewing ring exported to Mexico
Custom slew bearing for Mexico customerCustom slew bearing for Mexico customer
Custom slew bearing for Italy customerCustom slew bearing for Italy customer
Custom slew bearing for Vietnam customerCustom slew bearing for Vietnam customer
Slewing bearing for Europe customerSlewing bearing for Europe customer


Product Series Overview: The Architecture of Strength

Our dual worm gear series is not a one-size-fits-all commodity; it is a modular platform designed for adaptability across industries.
  • Double-Enveloping Geometry: The heart of our drive. The unique wrapping contact between the worm and wheel increases the effective contact area by up to 300%, drastically boosting torque capacity and wear resistance.
  • Inherent Self-Locking Safety: The high friction angle generated by the dual-worm interaction provides a fail-safe mechanical lock. This prevents reverse rotation under heavy loads, a critical feature for vertical applications like lifts and solar trackers during power outages.
  • Modular & Customizable: Available in various reduction ratios and mounting configurations. We can customize input shafts, output flanges, and motor interfaces (hydraulic or electric) to fit your specific machine envelope.
  • Extreme Environmental Protection: Standard units come with IP66 sealing, with options for IP68 submersible ratings. Our seals are designed to keep out fine dust, high-pressure water, and corrosive salts, ensuring longevity in harsh climates.


Key Features: Why Global Engineers Choose Our Drives

Why specify a dual worm gear rotary drive made in China from our facility? Because we bridge the gap between premium performance and competitive pricing:
  1. Unmatched Torque-to-Size Ratio: By maximizing tooth contact, we deliver significantly higher torque in a smaller package compared to single-worm alternatives. This allows you to downsize your motor or increase your payload without expanding your machine's footprint.
  2. Zero Back-Driving Risk: In safety-critical applications, reliance on electronic brakes is a single point of failure. Our dual worm mechanism offers a physical, mechanical guarantee against load drift, providing peace of mind for operators and inspectors.
  3. Superior Shock Load Absorption: Construction sites and outdoor environments are unpredictable. Our drives absorb sudden impacts—whether from wind gusts on a solar panel or a crane catching a swinging load—without damaging the gear teeth.
  4. Quiet and Smooth Operation: The multi-tooth engagement reduces noise and vibration, making our drives ideal for applications near residential areas or in precision automation where smooth motion is paramount.
  5. Direct Manufacturer Support: Buying direct from our Chinese factory eliminates middlemen markups. More importantly, it gives you direct access to our engineering team for rapid prototyping, custom modifications, and responsive after-sales support.


Applications: Powering Diverse Industries Worldwide

The versatility of our dual worm gear rotary drive makes it the go-to solution for:
  • Solar Tracking Systems: The industry standard for single-axis and dual-axis trackers. Our self-locking feature holds panels steady in high winds, while the robust design withstands decades of outdoor exposure.
  • Cranes and Lifting Equipment: Essential for slewing mechanisms in mobile cranes, aerial work platforms, and marine winches where holding a load safely is non-negotiable.
  • Industrial Automation & Robotics: Used in welding positioners, turning rolls, and heavy-duty robotic joints requiring precise, repeatable rotation under load.
  • Satellite & Radar Antennas: Provides the smooth, jitter-free movement needed for accurate signal tracking in defense and telecommunications.
  • Mining & Construction Machinery: Powers the rotation of drill rigs, excavators, and tunnel boring machines in the most abrasive and dusty environments on earth.
  • Medical & Imaging Equipment: Delivers the silent, stable rotation required for CT scanners and radiotherapy tables, ensuring patient safety and image clarity.

Tag: Made In China Dual Worm Gear Slewing Drive
