Product Series Overview: Two Levels of Defense
The SEA and PEA series are tailored to different tiers of environmental severity, giving you the flexibility to match protection levels with project budgets without compromising core quality.
-

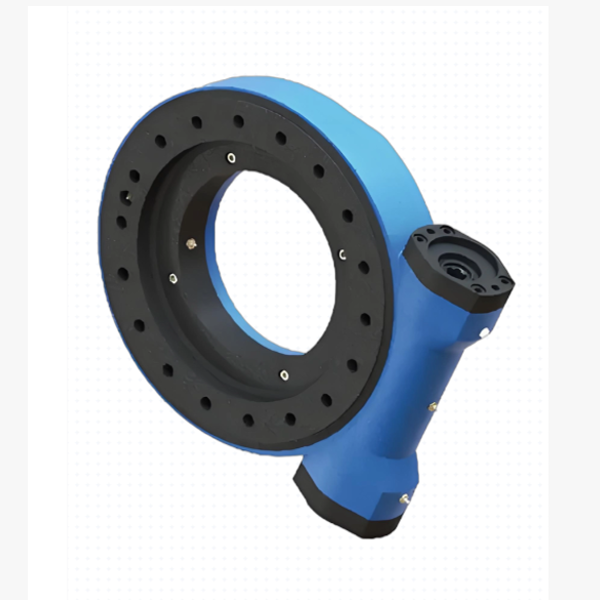

SEA Series (Standard Enhanced Architecture): The Rugged Defender
Built for demanding industrial and agricultural environments. The SEA Series features a reinforced fence frame oil seal configuration that effectively blocks dust, sand, and splashing water. It utilizes high-strength ductile iron housing and standard synthetic lubricants, making it the ideal cost-effective solution for single-axis solar trackers, irrigation systems, and general material handling equipment where debris ingestion is a primary concern.
-
PEA Series (Premium Enhanced Architecture): The Ultimate Shield
Engineered for extreme conditions where failure is not an option. The PEA Series upgrades the sealing system to a multi-layer fence frame with premium Viton® oil seals and enhanced labyrinth channels capable of withstanding IP69K high-pressure, high-temperature washdowns. With precision-ground globoid gears, specialized corrosion-resistant coatings (C5-M), and thermal-stable lubricants, the PEA Series is the go-to choice for offshore platforms, mining crushers, food & beverage processing lines, and dual-axis solar trackers in hyper-arid or hyper-humid zones.
Key Features: Engineering a Barrier Against Contamination
What sets the SEA/PEA fence frame oil seal rotary drives apart? It’s the meticulous attention to sealing dynamics:
-
Advanced Fence Frame Seal Structure: The defining feature of this series. A rigid, multi-grooved "fence" surrounds the output shaft, creating a tortuous path for contaminants. Dust and mud must navigate multiple right-angle turns and expansion chambers, losing momentum and dropping out before reaching the inner oil seal.
-
Multi-Stage Labyrinth Protection: Beyond the fence frame, internal labyrinth channels provide secondary defense, ensuring that even if outer seals are compromised, the gear mesh remains pristine.
-
Double-Enveloping Gear Core: Both series retain our core advantage: the hourglass-shaped worm gear. This ensures multiple teeth share the load, providing smooth operation, high shock resistance, and self-locking capabilities that hold loads securely even during power loss.
-
IP69K Rating Capability (PEA Series): The PEA model is tested to withstand close-range, high-pressure, high-temperature water jets, making it suitable for industries with strict hygiene protocols or extreme weather exposure.
-
Extended Maintenance Intervals: By virtually eliminating contaminant ingress, the lubricant life is significantly extended. Many SEA/PEA units are designed for "sealed-for-life" operation, drastically reducing total cost of ownership (TCO).
Applications: Thriving Where Others Fail
The SEA and PEA Series are indispensable in sectors where environmental ingress is the primary cause of equipment failure:
-
Solar Tracking Systems:
-
SEA: Perfect for ground-mounted trackers in dusty, semi-arid regions.
-
PEA: Essential for trackers in coastal zones (salt spray) or areas prone to flash floods and heavy mud.
-
Agricultural Machinery:
-
Protects pivot irrigators and harvesters from crop residue, mud, and fertilizer corrosion.
-
Mining & Construction:
-
Keeps rock crushers, conveyors, and excavators running despite constant exposure to abrasive silica dust and slurry.
-
Food & Beverage Processing:
-
PEA Series: Meets strict hygiene standards, surviving daily high-pressure steam and chemical washdowns without leaking or corroding.
-
Marine & Offshore:
-
Resists saltwater intrusion and humidity on winches, cranes, and antenna positioning systems.
-
Waste Management & Recycling:
-
Handles the gritty, corrosive environment of sorting facilities and shredders.
Why Partner with Us? Your Specialist in Sealed Drive Solutions
Sourcing high-protection rotary drives from China requires a manufacturer who understands that sealing is a science, not just an add-on. Here is why global OEMs trust our SEA/PEA series:
-
Proprietary Seal Design: Our fence frame geometry is the result of years of CFD (Computational Fluid Dynamics) analysis and field testing to optimize the flow of air and debris around the shaft. We don’t just buy off-the-shelf seals; we engineer the entire housing interface.
-
Material Science Mastery: We select seal materials (NBR, Viton®, PTFE) based on specific chemical and temperature requirements. Our housings undergo specialized shot blasting and coating processes to ensure perfect adhesion and corrosion resistance.
-
Rigorous Ingress Testing: Every batch undergoes rigorous dust chamber tests and high-pressure water jet trials to verify IP ratings. We simulate years of harsh exposure in weeks to guarantee performance.
-
Custom Engineering Flexibility: Need a specific shaft length, a unique mounting flange, or a customized seal material for a specific chemical? Our R&D team can modify the SEA/PEA platform to fit your exact application constraints.
-
Cost-Effective Durability: We deliver European-level sealing performance at a competitive price point, helping you reduce warranty claims and maintenance costs while extending the lifespan of your equipment.
