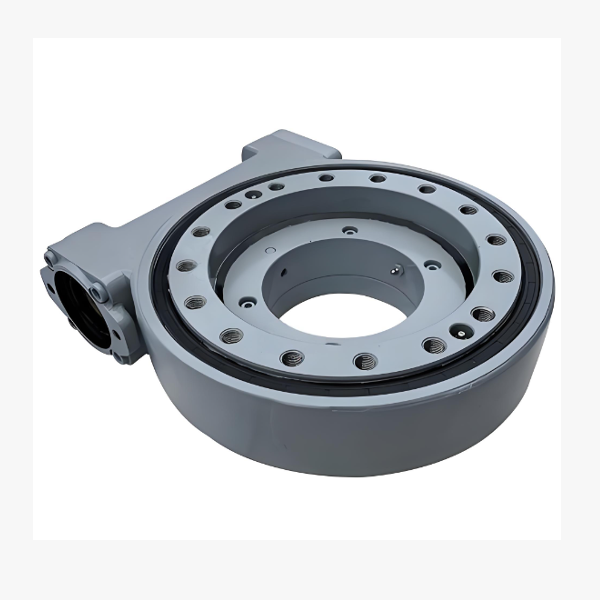

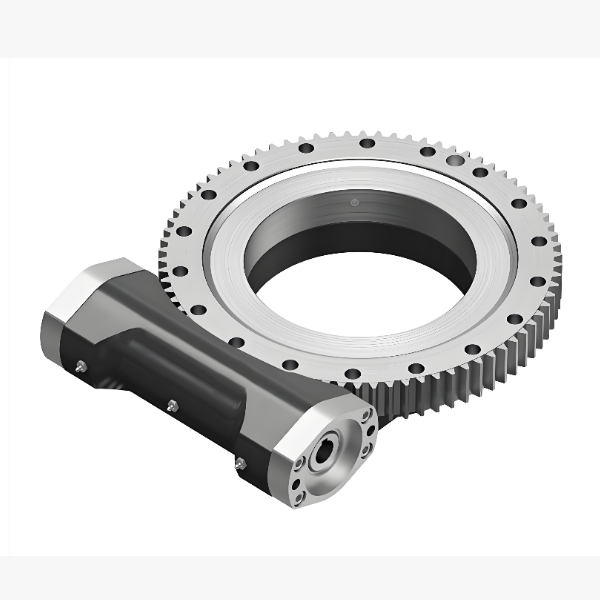

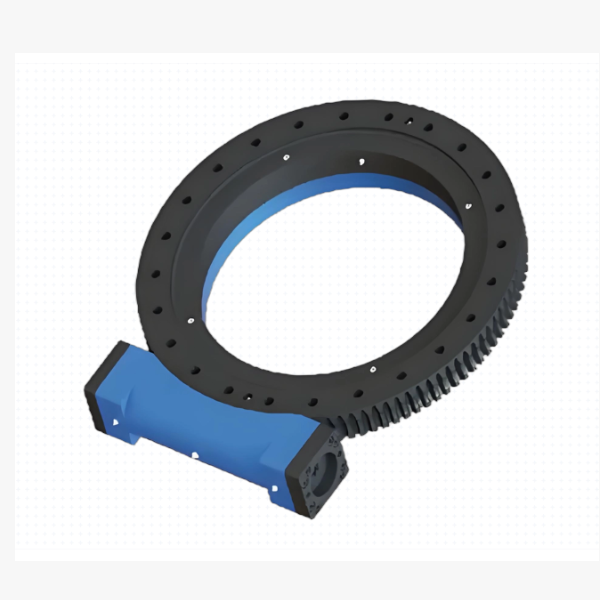

W Series Heavy-Duty Slewing Drive

W Series Heavy-Duty Slewing Drive
W Series Heavy-Duty Slewing DriveW Series Heavy-Duty Slewing DriveW Series Heavy-Duty Slewing DriveW Series Heavy-Duty Slewing Drive
    The W Series represents the pinnacle of our heavy-industry engineering capabilities. At its core lies a massive double-enveloping (globoid) worm gear set, meticulously machined to handle shock loads that would shatter conventional cylindrical gears. Unlike standard drives that rely on external brakes to hold position, the W Series leverages the unique geometry of the globoid worm to provide inherent mechanical self-locking. This means even in the event of a total power failure or hydraulic leak, the drive physically prevents the load from drifting or dropping. As a trusted Chinese manufacturer specializing in extreme-duty motion control, we have fortified the W Series with reinforced ductile iron housings, multi-stage labyrinth sealing (IP68), and corrosion-resistant treatments, ensuring your critical equipment keeps turning when others seize up.
Request a Quote
Custom slew bearing for Spain customerCustom slew bearing for Spain customer
Custom slew bearing for UnitedKingdom customerCustom slew bearing for UnitedKingdom customer
Slew bearing for Brazll customerSlew bearing for Brazll customer
Slewing bearings exported to RusslaSlewing bearings exported to Russla
Slewing bearings for UnitedStates customerSlewing bearings for UnitedStates customer
Slewing ring exported to Southeast AsiaSlewing ring exported to Southeast Asia
Slewing ring exported to Southwest AsiaSlewing ring exported to Southwest Asia
Slewing ring exported to North AmericaSlewing ring exported to North America
Slewing ring exported to South AmericaSlewing ring exported to South America
Slewing ring exported to South AfricaSlewing ring exported to South Africa
Slew bearing for India customerSlew bearing for India customer
Slew bearing for Latin America customerSlew bearing for Latin America customer
Slewing bearing for Türkiye customerSlewing bearing for Türkiye customer
Slewing bearing for Uzbekistan customerSlewing bearing for Uzbekistan customer
Slewing ring exported to South KoreaSlewing ring exported to South Korea
Slewing ring exported to MexicoSlewing ring exported to Mexico
Custom slew bearing for Mexico customerCustom slew bearing for Mexico customer
Custom slew bearing for Italy customerCustom slew bearing for Italy customer
Custom slew bearing for Vietnam customerCustom slew bearing for Vietnam customer
Slewing bearing for Europe customerSlewing bearing for Europe customer



Product Series Overview: Engineered for Maximum Resilience

The W Series Heavy-Duty Slewing Drive is not an off-the-shelf modification; it is a ground-up design for maximum torque density and structural integrity.
  • Massive Globoid Gear Core: The signature hourglass-shaped worm engages multiple teeth simultaneously across a broad surface area. This distributes extreme loads evenly, offering torque capacities up to 4x higher than comparable cylindrical units of the same size.
  • Reinforced Structural Housing: Cast from high-grade ductile iron with integrated mounting flanges and heavy-duty ribbing, the housing acts as a structural member of the machine, absorbing violent shock loads without deformation.
  • Ultimate Environmental Sealing: Designed for the harshest conditions, the W Series features IP68/IP69K rated sealing. Multi-lip seals and pressure-equalizing vents keep out saltwater, drilling mud, coal dust, and abrasive particulates.
  • Inherent Self-Locking Safety: The high friction angle of the double-enveloping mesh creates a natural brake. This eliminates the risk of "runaway" loads, providing a critical safety layer for vertical lifting and steep-angle operations.
  • High Shock Load Factor: Built with safety factors exceeding DIN/ISO standards for heavy machinery, the W Series is tested to withstand dynamic impacts during start-stop cycles and sudden load shifts.


Key Features: Why the W Series is the Industry Standard for Heavy Lifts

Why do leading OEMs specify the W Series heavy-duty slewing drive for their most critical projects?
  1. Unmatched Torque Density: By maximizing the contact area between the worm and wheel, the W Series delivers colossal torque in a compact footprint. This allows engineers to downsize the overall drive system while increasing lifting capacity.
  2. Fail-Safe Position Holding: In offshore and mining applications, gravity and wind are constant adversaries. The W Series’ self-locking nature ensures the equipment holds its position rigidly without relying on external braking systems that can wear out or fail.
  3. Survival in Hostile Environments: From the corrosive spray of the North Sea to the abrasive dust of Australian mines, the W Series is built to survive. Specialized coatings (C5-M) and sealed lubrication systems prevent internal degradation.
  4. Smooth Power Transmission Under Load: Despite the massive torque, the multi-tooth engagement ensures smooth, vibration-free rotation. This reduces stress on the crane’s lattice boom or the drill rig’s mast, extending the life of the entire structure.
  5. Extended Service Intervals: Pre-filled with high-viscosity synthetic lubricants designed for extreme pressure, the W Series offers long maintenance cycles, reducing downtime in remote or difficult-to-access locations.


Applications: Powering the World’s Toughest Machines

The W Series heavy-duty slewing drive is the preferred choice for industries where reliability is paramount:

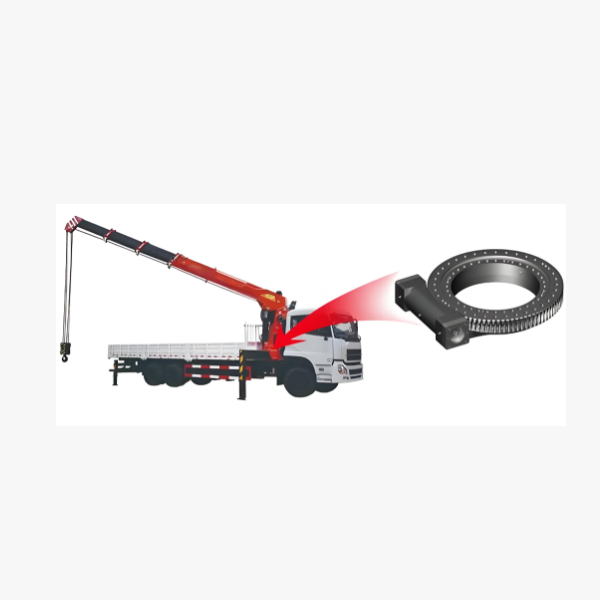

  • Crawler & Mobile Cranes: Essential for the slewing mechanisms of large-tonnage cranes used in bridge construction, wind farm installation, and heavy industrial lifting.
  • Offshore & Marine Equipment: Powers ship cranes, A-frames, and winch systems on oil rigs and FPSOs, resisting saltwater corrosion and constant motion.
  • Mining Machinery: Drives the rotation of excavators, draglines, and stacker-reclaimers, handling the extreme shock loads of digging and dumping tons of material.
  • Wind Turbine Installation Vessels: Provides the precise, high-torque rotation needed to lift and position massive turbine components in rough seas.
  • Drilling Rigs: Ensures stable rotation for land and offshore drilling platforms, maintaining accuracy under immense downward and lateral forces.
  • Heavy-Duty Manipulators: Used in steel mills and foundries for rotating ladles and heavy molds with precision and safety.


Why Partner with Us? Your Source for Extreme-Duty Drives

Sourcing heavy-duty slewing drives from China requires a partner who understands the physics of extreme loads and the criticality of zero-downtime. Here is why global engineering firms trust our W Series:
  • Specialized Heavy-Gear Manufacturing: Producing large-scale double-enveloping worms requires massive, specialized hobbing and grinding machinery. Our facility is equipped with heavy-duty CNC centers capable of machining globoid gears up to several meters in diameter with micron-level precision.
  • Rigorous Load Testing: Every W Series unit undergoes full-load torque testing, shock simulation, and salt-spray corrosion testing before leaving our factory. We provide comprehensive test reports and material certifications (MTRs).
  • Custom Engineering for Unique Challenges: No two heavy-lift projects are identical. Our engineering team works directly with your designers to customize gear ratios, mounting interfaces, and sealing solutions to fit your specific machine architecture.
  • Proven Global Track Record: Our drives are currently operating in some of the world’s most demanding environments, from Arctic oil fields to tropical mining sites, proving their durability and adaptability.
  • Cost-Effective Robustness: We deliver European-level quality and performance at a competitive price point, helping you reduce capital expenditure (CAPEX) without compromising on the safety or longevity of your equipment.
