Product Series Overview: The Anatomy of Extreme Durability

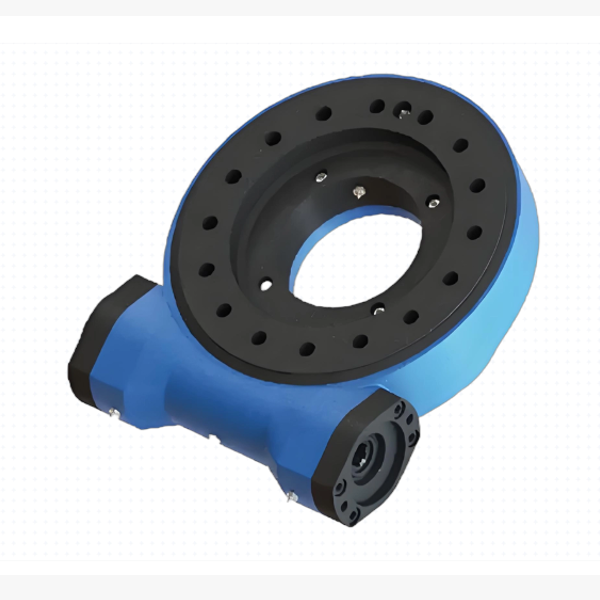

The WE Series Fence Type Slewing Drive is not merely an upgrade; it is a reimagining of how heavy loads should be rotated.
-
Unique Fence-Structure Housing: The external "fence" design features high-strength ductile iron ribs that act as a shock absorber and load distributor. This prevents housing deformation even under eccentric loads common in long-reach cranes and excavators.
-
Double-Enveloping Gear Core: At the heart of the WE Series, the hourglass-shaped worm engages multiple teeth simultaneously. This creates a broad contact area, offering up to 3x higher torque density and superior wear resistance compared to cylindrical worm gears.
-
Maximum Shock Load Resistance: Engineered specifically for applications with violent start-stop cycles and impact loading. The rigid fence structure protects the internal gear mesh from misalignment caused by frame flexing.
-
IP68 Environmental Sealing: Designed for the harshest conditions. Multi-stage labyrinth seals combined with high-grade lip seals keep out abrasive dust, mud, saltwater, and moisture, ensuring longevity in mining and marine environments.
-
Modular Mounting Flexibility: Despite its robust size, the WE Series offers versatile mounting options, compatible with standard large-diameter slewing rings and customizable input flanges for hydraulic or electric motors.
Key Features: Why the WE Series Dominates Heavy Industry
Why do chief engineers and procurement managers specify the WE Series fence type slewing drive for their most critical assets?
-
Unrivaled Structural Rigidity: The fence-type housing eliminates the "soft spot" found in standard casings. This ensures perfect gear alignment under full load, preventing premature wear and catastrophic failure.
-
Inherent Self-Locking Safety: In vertical lifting or tilting applications, the high friction angle of the globoid worm acts as a fail-safe brake. The drive holds massive loads stationary without drifting, even during power outages.
-
Superior Heat Dissipation: The extended surface area of the fence-like ribs acts as a natural heat sink, dissipating thermal energy generated during continuous heavy-duty cycling. This reduces the need for external cooling systems.
-
Extended Service Life in Abrasive Environments: The sealed design and hardened gear surfaces resist contamination from coal dust, silica, and salt spray, significantly extending maintenance intervals and total service life.
-
Customizable Torque & Speed Ratios: We tailor the WE Series to your specific application, offering a wide range of reduction ratios to match your motor speed and required output torque precisely.
Applications: Powering the Giants of Industry
The WE Series Heavy Duty Slewing Drive is the preferred choice for the most demanding sectors:
-
Mining Excavators & Shovels: Handles the immense shock loads of digging and lifting tons of ore, where standard drives would quickly fatigue.
-
Large-Scale Mobile & Crawler Cranes: Provides the stable, self-locking rotation needed for lifting heavy modules in construction and infrastructure projects.
-
Wind Turbine Yaw Systems: Specifically designed to withstand constant wind gusts and tower vibrations, ensuring precise nacelle orientation for maximum energy capture.
-
Offshore Drilling Rigs: Resists corrosive saltwater environments and dynamic wave-induced loads on deck cranes and pipe handling systems.
-
Stacker-Reclaimers & Port Machinery: Delivers reliable rotation for massive bulk material handlers operating 24/7 in dusty port environments.
-
Radars & Satellite Dishes (Heavy Duty): Supports large-aperture antennas requiring extreme stability against high wind loads.
Why Partner with Us? Your Trusted Source for Heavy-Duty Drives
Sourcing heavy-duty slewing drives from China requires a partner who understands the physics of massive loads and the intricacies of robust manufacturing. Here is why global industry leaders trust our facility:
-
Specialized Heavy Casting & Machining: Our foundry and machining centers are equipped to handle the massive components required for the WE Series' fence-type housing, ensuring dimensional accuracy and material integrity.
-
Advanced Globoid Gear Technology: We possess proprietary hobbing and grinding capabilities for double-enveloping worms, a complex process that few manufacturers can execute at this scale with such precision.
-
Rigorous Load Testing: Every WE Series unit undergoes dynamic load testing simulating real-world shock and vibration scenarios before leaving our factory. We provide full test reports and material certifications.
-
Engineering Collaboration: We don't just sell products; we solve problems. Our team works with your engineers to optimize the fence structure, gear ratio, and sealing solutions for your specific operational challenges.
-
Cost-Effective Durability: We deliver European-level quality and ruggedness at a competitive price point, helping you reduce capital expenditure (CAPEX) while maximizing uptime and reliability.
