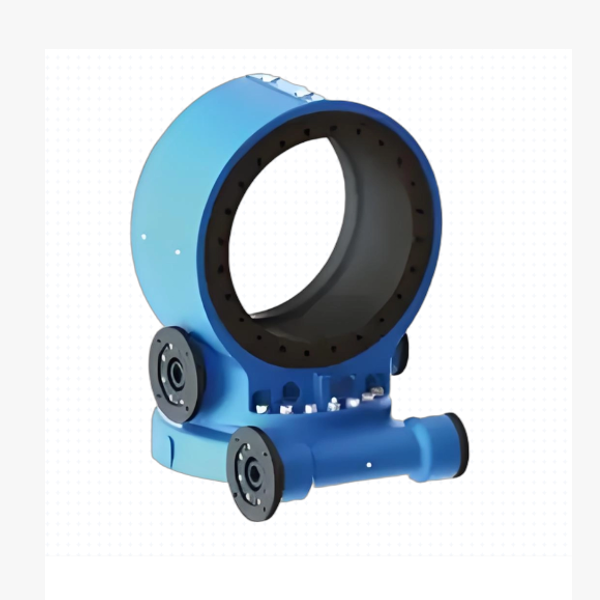

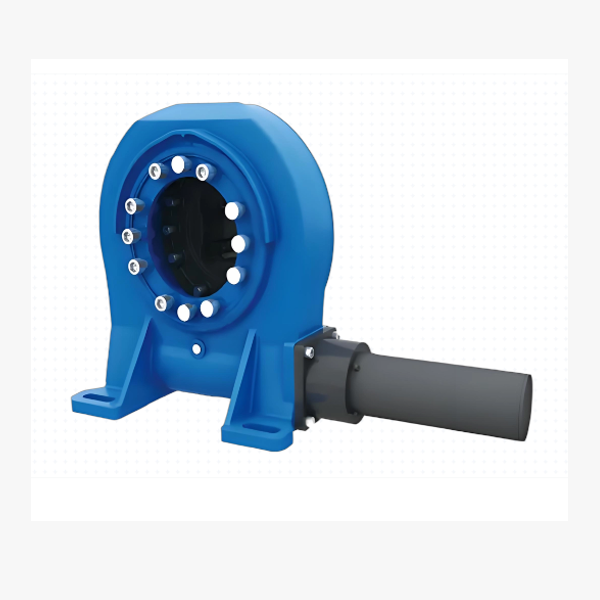

Product Series Overview: Tailored for Dual-Axis Demands

• SDE Series (Standard Dual-Efficiency): The Industrial Workhorse
  Designed for high-volume applications where durability and value are key. The SDE Combined Drive features hardened alloy steel gears, heavy-duty ductile iron housings, and standard IP67 sealing. It is the ideal choice for single-inverter dual-axis solar trackers, agricultural pivot systems, and general industrial manipulators where consistent performance under variable loads is required.
• PDE Series (Premium Dual-Efficiency): The Precision Specialist
  Engineered for applications demanding micron-level accuracy and maximum rigidity. The PDE Combined Drive utilizes precision-ground globoid gears to achieve backlash levels below 0.1mm, optimized thermal dissipation, and specialized low-friction lubricants. With reinforced bearing arrangements and optional C5-M corrosion protection, it is purpose-built for concentrated solar power (CSP) systems, satellite communication dishes, and robotic welding cells operating in harsh environments.

Key Features: Why Integrated Dual-Axis Drives Win

1. Unified Structural Integrity: Unlike piecemeal assemblies, our combined drives share a common, rigid mounting interface. This eliminates alignment errors between axes, reduces structural weight, and ensures that loads are transferred smoothly from one axis to the other without inducing stress concentrations.
2. Synchronized Performance: Both axes are engineered with matched gear ratios and torque characteristics, ensuring smooth, coordinated movement. This is critical for applications like solar tracking, where desynchronization can lead to shading losses or mechanical binding.
3. Inherent Self-Locking on Both Axes: The double-enveloping worm gear design provides a natural mechanical brake on both the primary (azimuth) and secondary (elevation) axes. This guarantees that the system holds its position securely against wind gusts and gravity, even during power outages, eliminating the need for external braking systems.
4. Compact & Space-Saving Design: By integrating the housing and mounting flanges, the SDE/PDE combined units occupy significantly less space than two separate drives. This allows for more compact machine designs and reduces the overall moment of inertia.
5. Superior Environmental Sealing: Rated up to IP68, these combined units are hermetically sealed against dust, moisture, salt spray, and extreme temperatures. The PDE series offers additional protection options for offshore or chemical processing environments.

Applications: Powering the Next Generation of Smart Systems

• Dual-Axis Solar Tracking:
  • SDE: Perfect for large-scale photovoltaic farms using dual-axis trackers to boost energy generation by up to 40%.
  • PDE: Essential for Concentrated Photovoltaic (CPV) and Concentrated Solar Power (CSP) plants requiring arc-second precision to focus sunlight.
• Satellite & Radar Communication:
  • PDE: Provides the stable, vibration-free rotation needed for earth station antennas and military radar systems to maintain lock on fast-moving targets.
• Industrial Robotics & Automation:
  • SDE/PDE: Used in multi-axis robot wrists, welding positioners, and pipe manipulation tools where complex orientation changes are frequent.
• Aerospace & Defense:
  • PDE: Critical for gun turrets, sensor pods, and UAV launch systems that require rapid, precise positioning under high shock loads.
• Marine & Offshore:
• SDE/PDE: Powers stabilized camera platforms, crane booms, and navigation equipment on ships and oil rigs, resisting constant motion and salt corrosion.

Why Partner with Us? Your Trusted Source for Combined Drives

• Specialized Globoid Manufacturing: We possess exclusive 5-axis CNC grinding capabilities dedicated to producing the complex hourglass profiles required for high-performance dual-axis drives. This ensures perfect meshing and optimal load distribution on both axes.
• Integrated Quality Assurance: Every SDE and PDE combined unit undergoes rigorous dual-axis dynamic testing. We simulate real-world load scenarios, including simultaneous rotation, shock loads, and endurance cycles, to verify synchronization and backlash stability.
• Custom Engineering Flexibility: No two projects are identical. Our R&D team works directly with your engineers to customize input shafts, motor interfaces, gear ratios, and mounting geometries to fit your specific dual-axis architecture.
• Global Compliance & Traceability: Our manufacturing processes adhere to ISO 9001 standards, and our products meet CE and UL requirements. We provide full material traceability and comprehensive test reports for every shipment.
• Экономичное инновационное решение: используя передовую цепочку поставок Китая и нашу вертикальную интеграцию, мы предлагаем двухосные решения европейского качества по доле стоимости, помогая ускорить окупаемость вашего проекта.
