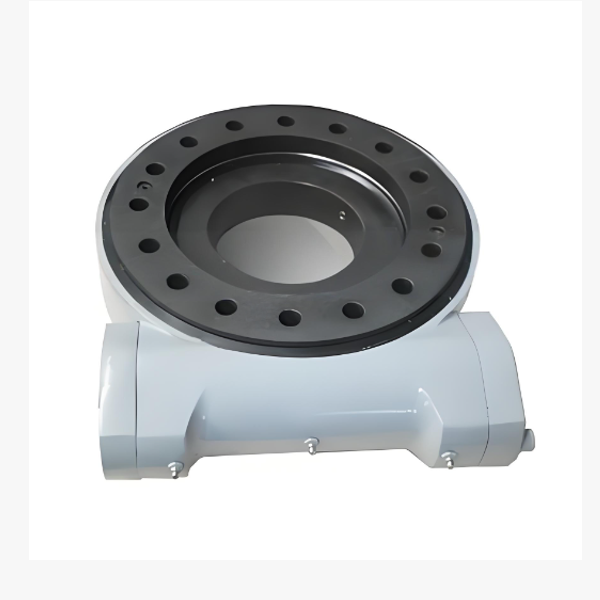

WEA Worm Gear Slewing Drive

WEA Worm Gear Slewing Drive
WEA Worm Gear Slewing DriveWEA Worm Gear Slewing Drive
    Designed as the heavy-duty flagship of our product lineup, the WEA Series represents the pinnacle of robust rotational engineering. Unlike lighter-duty alternatives, the WEA is built around a massive double-enveloping (globoid) worm gear set. This unique geometry allows the worm to wrap around the wheel, creating a multi-tooth contact area that distributes immense loads across a broad surface rather than a single line. The result is a drive capable of handling torque capacities far exceeding standard cylindrical designs, while offering inherent self-locking safety that prevents back-driving under heavy wind or gravitational forces. As a trusted Chinese manufacturer specializing in heavy industrial motion, we have engineered the WEA Series to thrive in the world’s most unforgiving environments—from offshore oil rigs and mining sites to utility-scale solar farms—delivering the reliability that global engineers demand.
Request a Quote
Custom slew bearing for Spain customerCustom slew bearing for Spain customer
Custom slew bearing for UnitedKingdom customerCustom slew bearing for UnitedKingdom customer
Slew bearing for Brazll customerSlew bearing for Brazll customer
Slewing bearings exported to RusslaSlewing bearings exported to Russla
Slewing bearings for UnitedStates customerSlewing bearings for UnitedStates customer
Slewing ring exported to Southeast AsiaSlewing ring exported to Southeast Asia
Slewing ring exported to Southwest AsiaSlewing ring exported to Southwest Asia
Slewing ring exported to North AmericaSlewing ring exported to North America
Slewing ring exported to South AmericaSlewing ring exported to South America
Slewing ring exported to South AfricaSlewing ring exported to South Africa
Slew bearing for India customerSlew bearing for India customer
Slew bearing for Latin America customerSlew bearing for Latin America customer
Slewing bearing for Türkiye customerSlewing bearing for Türkiye customer
Slewing bearing for Uzbekistan customerSlewing bearing for Uzbekistan customer
Slewing ring exported to South KoreaSlewing ring exported to South Korea
Slewing ring exported to MexicoSlewing ring exported to Mexico
Custom slew bearing for Mexico customerCustom slew bearing for Mexico customer
Custom slew bearing for Italy customerCustom slew bearing for Italy customer
Custom slew bearing for Vietnam customerCustom slew bearing for Vietnam customer
Slewing bearing for Europe customerSlewing bearing for Europe customer



Product Series Overview: Engineered for Extreme Duty

The WEA Series Slewing Drive is not just a gearbox; it is a complete, sealed rotational unit designed for immediate integration into heavy machinery.
  • Massive Double-Enveloping Core: At the heart of the WEA lies a precision-ground globoid worm and wheel. This design ensures that multiple teeth share the load simultaneously, providing exceptional resistance to shock loads and eliminating point-loading failures.
  • Inherent Self-Locking Safety: The high friction angle of the globoid mesh creates a natural mechanical lock. This means the WEA can hold massive loads stationary without external brakes, a critical feature for vertical axes and safety-critical applications.
  • Ruggedized Housing & Sealing: Cast from high-grade ductile iron with reinforced ribbing, the housing absorbs vibration and impact. Combined with multi-stage labyrinth seals and high-performance lip seals, the WEA achieves IP68 protection, making it impervious to dust, water immersion, salt spray, and corrosive chemicals.
  • High Static & Dynamic Load Ratings: Engineered with safety factors that exceed ISO and DIN standards, the WEA Series is rated for continuous operation under full load and can withstand sudden dynamic shocks common in lifting and wind applications.
  • Versatile Mounting Interfaces: Available with standardized flange patterns compatible with major slewing bearings, as well as custom input options for hydraulic motors, electric servo motors, or direct shaft drives.


Key Features: Why the WEA Series Stands Out

For engineers and procurement managers specifying drives for heavy equipment, the WEA Series worm gear slewing drive offers distinct advantages:
  1. Unmatched Torque Density: By maximizing the contact area, the WEA delivers higher torque in a more compact footprint compared to traditional spur or planetary systems of equivalent capacity. This reduces the overall weight and size of your machine’s rotation assembly.
  2. Fail-Safe Position Holding: In applications like wind turbine yawing or crane luffing, losing power cannot mean losing control. The WEA’s self-locking nature ensures the load stays put, even during power outages or hydraulic failures.
  3. Superior Shock Absorption: The broad tooth contact acts as a natural damper, smoothing out the violent jolts of starting, stopping, or wind gusts. This protects the entire drivetrain and extends the service life of connected components.
  4. All-Weather Durability: Whether operating in the freezing winds of Scandinavia or the dusty heat of the Australian outback, the WEA’s sealed design and corrosion-resistant coatings ensure decades of reliable service with minimal maintenance.
  5. Low Backlash & Smooth Operation: Precision manufacturing ensures tight backlash control, providing smooth, jitter-free rotation essential for precise positioning of heavy loads or solar panels.


Applications: Powering the World’s Toughest Machines

The WEA Series is the preferred choice for industries where failure is not an option:
  • Heavy-Duty Cranes: Ideal for the slewing mechanisms of mobile, crawler, and tower cranes, providing the torque needed to rotate massive booms and loads with precision.
  • Wind Energy (Yaw & Pitch): Used in wind turbine yaw drives to orient the nacelle into the wind, and in pitch systems to adjust blade angles, handling extreme wind loads reliably.
  • Utility-Scale Solar Trackers: Perfect for large single-axis and dual-axis solar tracking systems, ensuring accurate sun-following even under heavy snow or wind loads.
  • Mining & Construction Equipment: Powers the rotation of excavators, drilling rigs, and material handlers operating in abrasive and high-vibration environments.
  • Offshore & Marine Machinery: Specially coated versions resist saltwater corrosion, making them ideal for ship cranes, deck winches, and offshore platform lifts.
  • Satellite & Radar Antennas: Provides the stable, precise rotation required for large communication dishes and radar systems to maintain lock on targets.


Why Partner with Us? Your Reliable Source for Heavy Slewing Drives

Sourcing heavy-duty slewing drives from China requires a partner who understands the complexities of large-scale mechanics and the criticality of quality consistency. Here is why global OEMs trust our facility for their WEA Series needs:
  • Specialized Globoid Manufacturing: Producing large double-enveloping worms requires specialized hobbing and grinding capabilities. Our factory is equipped with heavy-duty 5-axis CNC machines dedicated to this complex geometry, ensuring perfect meshing and optimal load distribution for every WEA unit.
  • Rigorous Load Testing: Every WEA drive undergoes comprehensive testing, including full-load torque verification, shock load simulation, and endurance runs under extreme temperatures. We provide full traceability and material certification (MTRs) for all critical components.
  • Custom Engineering Solutions: We don’t just sell catalog items. Our engineering team collaborates with you to customize gear ratios, mounting flanges, sealing levels, and lubrication strategies to fit your specific application and environmental challenges.
  • Proven Global Track Record: Our WEA drives are currently operating in over 60 countries, powering critical infrastructure in some of the harshest climates on Earth, proving their resilience and adaptability.
  • Competitive Value Without Compromise: We offer European-level quality and performance at a highly competitive price point, helping you reduce project costs while maintaining the highest standards of safety and reliability.
