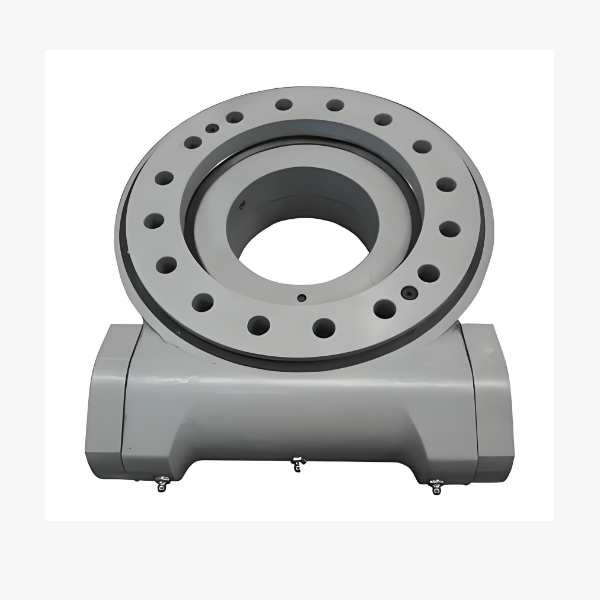

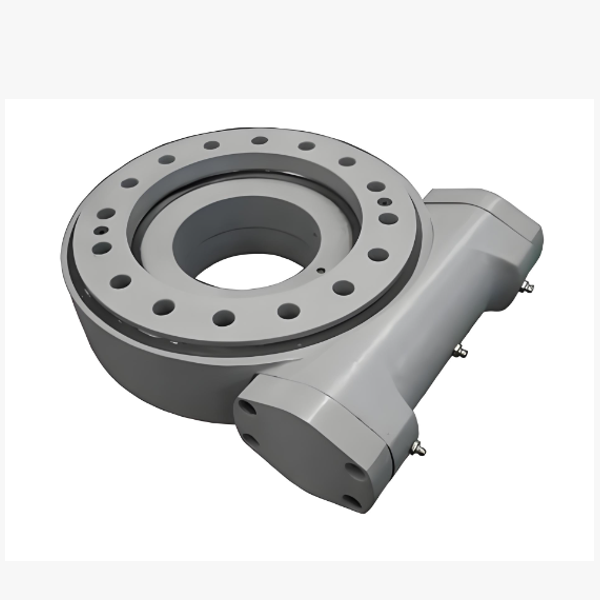

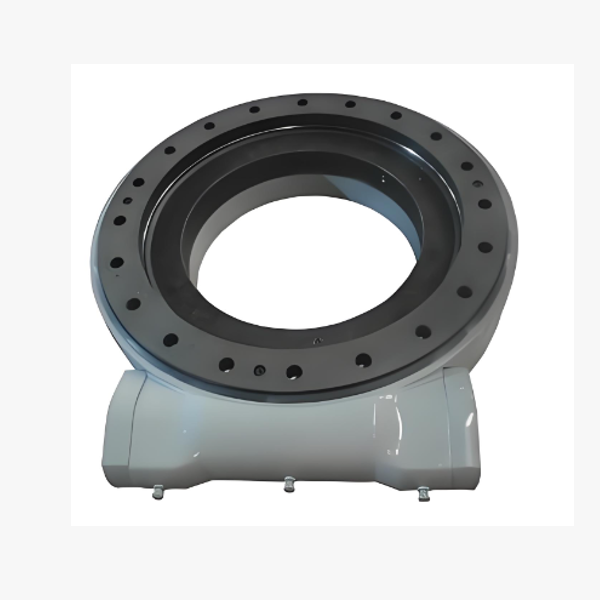

    The WEA Series is not a generic gearbox with a coat of paint; it is a purpose-built rotary solution engineered specifically for the harsh realities of the maritime environment. At its core lies our advanced double-enveloping (globoid) worm gear technology. Unlike traditional cylindrical gears that rely on single-line contact, the WEA’s unique hourglass-shaped worm engages multiple teeth simultaneously. This creates a massive contact area, delivering up to 3x higher torque density and, crucially, an inherent self-locking capability. In the event of hydraulic failure or power loss during a heavy lift in rough seas, the WEA drive mechanically locks the load in place, preventing dangerous swinging or dropping. As a specialized Chinese manufacturer of marine-grade motion systems, we have fortified the WEA Series with superior sealing, corrosion-resistant materials, and rigorous testing protocols to ensure your ship cranes operate reliably from the calmest harbors to the most turbulent offshore fields.
Request a Quote
Custom slew bearing for Spain customerCustom slew bearing for Spain customer
Custom slew bearing for UnitedKingdom customerCustom slew bearing for UnitedKingdom customer
Slew bearing for Brazll customerSlew bearing for Brazll customer
Slewing bearings exported to RusslaSlewing bearings exported to Russla
Slewing bearings for UnitedStates customerSlewing bearings for UnitedStates customer
Slewing ring exported to Southeast AsiaSlewing ring exported to Southeast Asia
Slewing ring exported to Southwest AsiaSlewing ring exported to Southwest Asia
Slewing ring exported to North AmericaSlewing ring exported to North America
Slewing ring exported to South AmericaSlewing ring exported to South America
Slewing ring exported to South AfricaSlewing ring exported to South Africa
Slew bearing for India customerSlew bearing for India customer
Slew bearing for Latin America customerSlew bearing for Latin America customer
Slewing bearing for Türkiye customerSlewing bearing for Türkiye customer
Slewing bearing for Uzbekistan customerSlewing bearing for Uzbekistan customer
Slewing ring exported to South KoreaSlewing ring exported to South Korea
Slewing ring exported to MexicoSlewing ring exported to Mexico
Custom slew bearing for Mexico customerCustom slew bearing for Mexico customer
Custom slew bearing for Italy customerCustom slew bearing for Italy customer
Custom slew bearing for Vietnam customerCustom slew bearing for Vietnam customer
Slewing bearing for Europe customerSlewing bearing for Europe customer


Product Series Overview: Built for the Marine Environment

The WEA Series is designed to integrate seamlessly with various types of shipboard and offshore cranes, offering a robust alternative to complex planetary systems that require external brakes.
  • Double-Enveloping Core for Shock Absorption: The globoid geometry acts as a natural shock absorber, distributing the violent, multi-directional forces caused by vessel pitching and rolling across a broad tooth surface, significantly reducing stress concentrations.
  • Inherent Self-Locking Safety: The high friction angle of the worm gear mesh provides a mechanical brake. This eliminates the risk of "back-driving" caused by sudden ship movements or wind gusts, ensuring the boom stays exactly where the operator puts it.
  • Marine-Grade Corrosion Protection: Every WEA unit undergoes a multi-stage protection process. We utilize high-grade ductile iron housings treated with C5-M class epoxy coatings (or stainless steel options) to withstand salt spray, humidity, and chemical exposure typical of offshore environments.
  • IP68 Waterproof & Dustproof Sealing: Standard IP67 isn't enough for the splash zone. Our multi-labyrinth sealing system, combined with high-performance lip seals, achieves IP68 ratings, guaranteeing protection against full submersion, high-pressure washdowns, and fine salt dust.
  • Compact & Lightweight Design: Space and weight are premium commodities on a ship. The WEA Series delivers maximum torque in a minimal footprint, allowing for more efficient crane designs and increased payload capacity.


Key Features: Why Naval Architects Specify WEA

Why do leading shipyards and crane OEMs choose the WEA Series slewing drive for their vessel equipment?
  1. Fail-Safe Operation in Dynamic Conditions: Ships move constantly. The WEA drive’s self-locking nature ensures that loads remain stable even when the vessel heels or pitches unexpectedly, providing a critical layer of passive safety.
  2. Superior Resistance to Saltwater Corrosion: We don’t just paint; we engineer for survival. From internal components plated with anti-corrosion treatments to external housings coated with marine-grade finishes, the WEA Series is built to resist the relentless attack of salt air and water.
  3. High Torque in a Small Package: By maximizing the contact ratio, we achieve higher output torque without increasing the size of the drive. This allows for sleeker crane profiles and easier installation in tight deck spaces.
  4. Smooth, Precise Control: Despite the harsh environment, the WEA Series offers silky smooth rotation. The multi-tooth engagement minimizes backlash and vibration, enabling operators to position heavy cargo with millimeter precision, even in choppy waters.
  5. Low Maintenance & Long Service Life: Designed for "sealed-for-life" operation with high-quality synthetic lubricants, the WEA Series reduces the need for frequent maintenance intervals—a huge advantage for cranes located on remote offshore platforms or vessels with limited crew access.


Applications: Powering Critical Maritime Lifts

The WEA Series slewing drive is the preferred choice for a wide range of marine lifting equipment:
  • Offshore Platform Cranes: Essential for supply vessels and drilling rigs, handling heavy pipes and equipment in high-wind, high-wave conditions.
  • Deck Cranes on Cargo Ships: Provides reliable rotation for loading and unloading containers and bulk cargo in ports and at sea.
  • Floating Cranes & Barge Mounts: Handles the extreme dynamic loads associated with lifting operations on unstable water surfaces.
  • Aft Stern Cranes (Trawlers): Delivers the rugged performance needed for fishing vessels operating in rough northern seas.
  • ROV Launch & Recovery Systems (LARS): Offers the precise, smooth control required for deploying sensitive underwater robotics.
  • Naval & Defense Vessels: Meets the stringent reliability and safety standards required for military shipboard operations.


Why Partner with Us? Your Trusted Source for Marine Drives

Sourcing marine slewing drives from China requires a partner who understands the unforgiving nature of the ocean. Here is why global naval architects and procurement managers trust our facility:
  • Specialized Marine Engineering: We don’t just adapt land-based drives; we design specifically for marine dynamics. Our R&D team understands the unique load spectra of ship motions and designs the WEA series to withstand them.
  • Advanced Globoid Manufacturing: Our factory is equipped with dedicated 5-axis CNC grinding machines capable of producing the complex hourglass profiles required for true double-enveloping gears, ensuring perfect meshing and optimal load distribution.
  • Rigorous Quality & Testing: Every WEA unit undergoes strict testing, including salt spray tests (ASTM B117), IP68 immersion tests, and dynamic load simulations mimicking sea states. We provide full traceability and material certifications (MTRs) for all critical components.
  • Customization for Vessel Integration: Whether you need specific flange patterns, custom input shafts for hydraulic motors, or specialized coating colors to match your fleet, we offer tailored solutions without compromising lead times.
  • Cost-Effective Reliability: We deliver European-level quality and marine certification compliance at a competitive price point, helping you reduce CAPEX while ensuring the highest standards of safety and durability.
