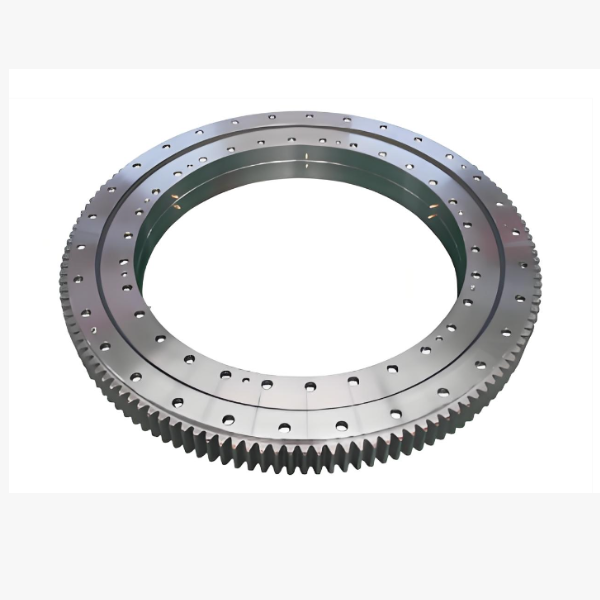

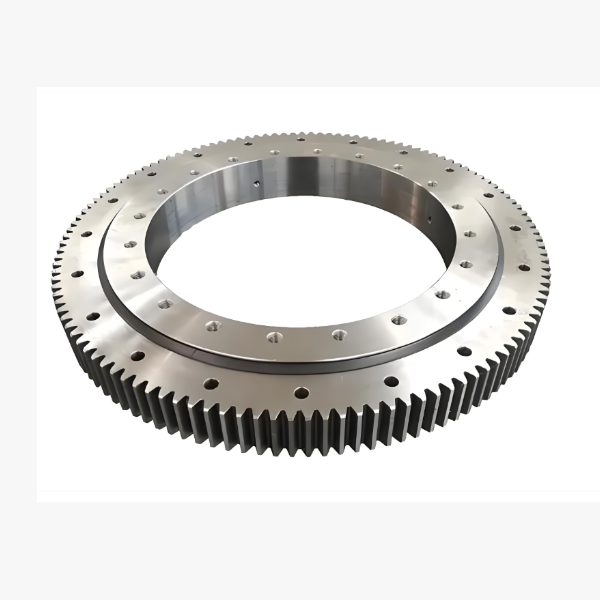

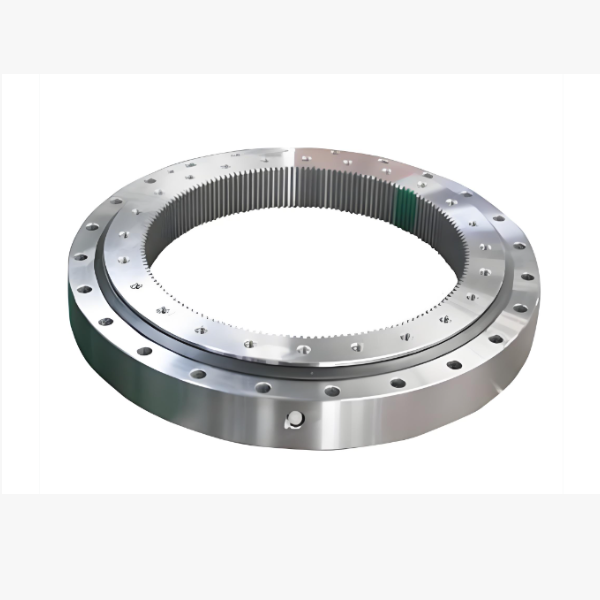

Product Series Overview: Engineering in Three Dimensions
As a forward-thinking Chinese manufacturer specializing in complex motion systems, we have developed this unique bearing series to solve the spatial challenges of advanced machinery. Unlike standard planar bearings, our double ball-shaped design incorporates two distinct raceway paths arranged spherically or in a specialized dual-curve configuration. This allows the bearing to support not just rotational torque, but also significant tilting moments and off-axis loads, making it the ideal "wrist" or "neck" for robots, gimbals, and articulated heavy equipment. We don't just sell parts; we provide the kinematic freedom your next-generation equipment needs.
Our spherical rotary joint series represents a leap from 2D to 3D motion control. While a standard slewing bearing handles rotation around the Z-axis, our double ball-shaped slewing bearing is engineered to accommodate movement across multiple axes (often combining rotation with pitch/yaw capabilities depending on the specific housing design).
-
Dual-Path Geometry: The internal structure features two optimized ball tracks that share the load between radial, axial, and moment forces more evenly than single-path designs.
-
Compact Envelope: By integrating two functional layers into one housing, we eliminate the need for stacking multiple bearings, drastically reducing the overall height and weight of your assembly.
-
Customizable Curvature: Whether you need a true spherical contour for full gimbal-like motion or a specific double-curve profile for limited-angle tilting plus rotation, our engineering team can tailor the raceway geometry to your exact kinematic requirements.
This series is perfect for applications where space is premium, and the motion profile is anything but linear.
Key Features: Precision Meets Complexity
Manufacturing a multi-axis turntable bearing requires exceptional skill in grinding and assembly. Our key differentiators include:
-
Simultaneous Multi-Axis Capability: The core advantage of our double ball-shaped design is its ability to maintain smooth operation while the shaft is tilted. This eliminates the binding and friction spikes common in stacked bearing arrangements, ensuring fluid motion even at extreme angles.
-
High Load Density: Despite their compact size, these bearings utilize a double-row ball arrangement (or a specialized dual-curve single row) to maximize contact points. This results in superior stiffness and load capacity relative to their footprint, capable of handling heavy payloads with minimal deflection.
-
Zero-Backlash Precision: Through precise preload adjustment during assembly, we achieve near-zero backlash in both rotational and tilting directions. This is critical for applications like camera stabilization, surgical robotics, and precision machining where positional accuracy is paramount.
-
Advanced Sealing for Dynamic Angles: Standard seals fail when a bearing tilts. Our custom labyrinth seals and flexible lip seals are designed to maintain integrity even when the inner ring is angled, protecting the internal balls from contaminants regardless of the orientation.
-
Material & Coating Flexibility: We offer these units in high-strength alloy steel, stainless steel for corrosive environments, or with specialized coatings (like zinc-nickel or PTFE) to reduce friction and extend service life in harsh industrial settings.
Applications: Enabling Complex Movements
The double ball shaped slewing bearing is the secret weapon for machinery that needs to look and move in multiple directions at once:
-
Robotic Wrists & End-Effectors: Providing the compact, multi-DOF rotation needed for welding torches, grippers, and polishing tools to access complex geometries.
-
Stabilized Gimbals & Turrets: Used in defense, marine, and broadcast cameras where the payload must remain level while the base rotates and tilts violently.
-
Aerospace Simulation & Testing: Essential for flight simulators and antenna positioning systems that require precise, multi-axis articulation to mimic real-world dynamics.
-
Articulated Heavy Machinery: Found in the joints of advanced excavators, forestry harvesters, and concrete pump trucks where the boom needs to articulate freely under heavy load.
-
Solar & Wind Tracking: Advanced dual-axis solar trackers that follow the sun’s path with high precision, maximizing energy capture efficiency.
-
Medical Imaging Arms: Supporting the complex positioning of X-ray and MRI components, allowing doctors to angle equipment precisely without mechanical resistance.
