    In the world of open-pit mining and underground extraction, equipment doesn't just work hard; it survives abuse. From the violent shock loads of a hydraulic shovel digging into blasted rock to the relentless 24/7 grinding of a stacker-reclaimer, standard rotary solutions often reach their breaking point. When the stakes involve millions of tons of material movement and zero tolerance for unplanned downtime, the Double Ball Shaped Slewing Bearing is not just an option—it is a necessity.
Request a Quote
Custom slew bearing for Spain customerCustom slew bearing for Spain customer
Custom slew bearing for UnitedKingdom customerCustom slew bearing for UnitedKingdom customer
Slew bearing for Brazll customerSlew bearing for Brazll customer
Slewing bearings exported to RusslaSlewing bearings exported to Russla
Slewing bearings for UnitedStates customerSlewing bearings for UnitedStates customer
Slewing ring exported to Southeast AsiaSlewing ring exported to Southeast Asia
Slewing ring exported to Southwest AsiaSlewing ring exported to Southwest Asia
Slewing ring exported to North AmericaSlewing ring exported to North America
Slewing ring exported to South AmericaSlewing ring exported to South America
Slewing ring exported to South AfricaSlewing ring exported to South Africa
Slew bearing for India customerSlew bearing for India customer
Slew bearing for Latin America customerSlew bearing for Latin America customer
Slewing bearing for Türkiye customerSlewing bearing for Türkiye customer
Slewing bearing for Uzbekistan customerSlewing bearing for Uzbekistan customer
Slewing ring exported to South KoreaSlewing ring exported to South Korea
Slewing ring exported to MexicoSlewing ring exported to Mexico
Custom slew bearing for Mexico customerCustom slew bearing for Mexico customer
Custom slew bearing for Italy customerCustom slew bearing for Italy customer
Custom slew bearing for Vietnam customerCustom slew bearing for Vietnam customer
Slewing bearing for Europe customerSlewing bearing for Europe customer



Product Series Overview: Dual-Row Power for Giants

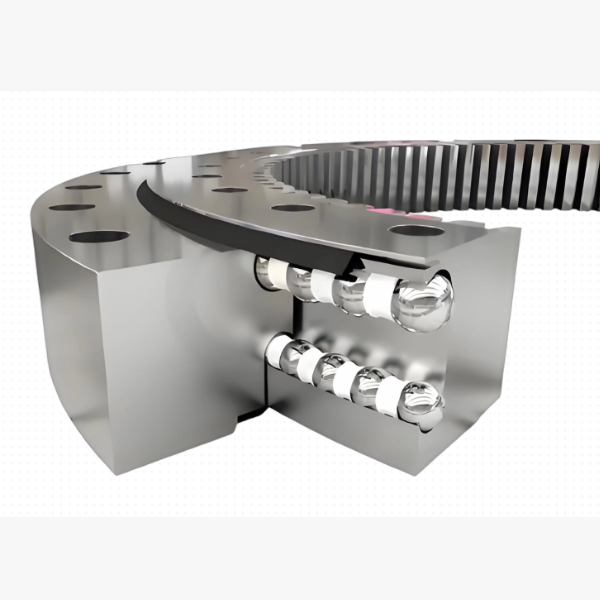

Our mining-grade double ball slewing bearings represent the pinnacle of load-bearing technology. Unlike lighter industrial variants, this series is built with a robust "dual-defense" architecture:
  • Independent Load Paths: The upper row is optimized to carry immense axial loads (the sheer weight of the boom, bucket, and payload), while the lower row handles radial forces and massive tilting moments generated during digging or stacking. This separation ensures that no single contact point is overwhelmed.
  • Massive Diameter Capability: We manufacture these units in diameters ranging from 1 meter to over 5 meters, tailored to fit the massive swing circles of ultra-class mining excavators and bucket-wheel excavators.
  • Reinforced Structural Integrity: The inner and outer rings are forged from high-toughness alloy steel and machined with extra wall thickness to prevent deformation under the crushing weights typical in copper, iron ore, and coal mining operations.

This series is the standard for applications where failure is not an option and load capacities exceed the limits of conventional single-row bearings.


Key Features: Built for Shock, Dust, and Endurance

Mining environments are unforgiving. Our double ball shaped slewing supports incorporate specific features to thrive in these conditions:
  1. Unmatched Shock Load Resistance: Mining involves constant impact. The dual-row ball configuration acts as a multi-point shock absorber, distributing sudden impact energy across a wider contact area. This significantly reduces the risk of raceway spalling or ball fracture during aggressive digging cycles.
  2. Superior Dust and Abrasive Protection: Dust is the silent killer of bearings. We employ heavy-duty, multi-labyrinth sealing systems with high-durometer rubber lips and optional felt wipers. These seals create an impenetrable barrier against silica dust, coal fines, and metal shards, while internal grease purging channels allow for regular flushing of contaminants.
  3. High Moment Load Capacity: The vertical distance between the two ball rows creates a large lever arm, providing exceptional resistance to tilting moments. This allows mining machines to operate at maximum outreach and lift heavier payloads without compromising stability or causing excessive deflection.
  4. Extended Fatigue Life: Using vacuum-degassed steel and specialized induction hardening on raceways, we ensure deep case hardness that resists micro-cracking. Our bearings are designed for L10 life calculations that far exceed industry standards, reducing the frequency of costly replacements.
  5. Custom Mounting & Integration: We work directly with OEMs to design custom bolt patterns, gear modules (internal or external), and pilot diameters. Whether you need a flanged design for quick swap-outs or a plain ring for welded integration, we adapt to your machine's architecture.


Applications: Powering the World's Largest Machines

Our double ball shaped slewing bearings are the critical pivot points for the heaviest machinery on the planet:
  • Hydraulic Mining Shovels & Excavators: Providing the robust rotation needed to swing fully loaded buckets of ore, withstand digging shocks, and operate in dirty, wet pit conditions.
  • Draglines & Walking Draglines: Supporting the massive superstructure of these giants, handling extreme static loads and continuous swinging motions in surface mining.
  • Bucket-Wheel Excavators (BWE): Enabling the continuous rotation of the cutting wheel and the superstructure in large-scale strip mining operations.
  • Stacker-Reclaimers: Essential for port and mine stockyards, allowing long booms to stack and retrieve bulk materials (coal, iron ore, limestone) with precision under heavy wind and load conditions.
  • Rotary Drilling Rigs: Ensuring stable rotation for drill masts under high torque and downward pressure, crucial for blast hole drilling in hard rock.
  • Crushers & Mobile Sizers: Used in the rotating bases of mobile crushing plants that need to reposition frequently while handling vibrating, heavy loads.
