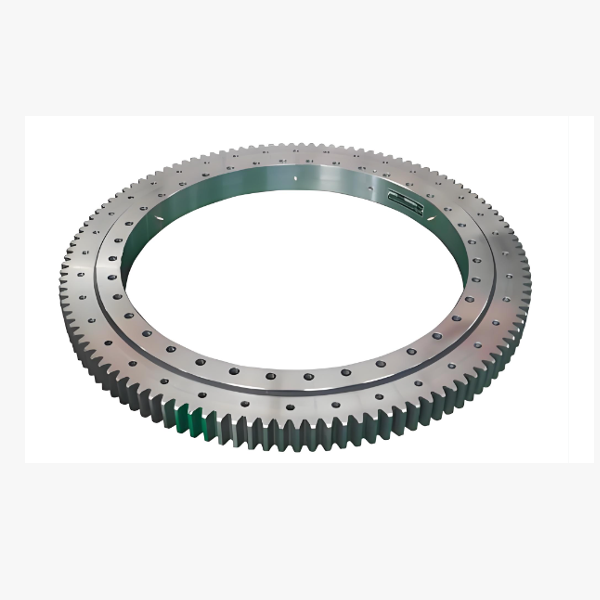

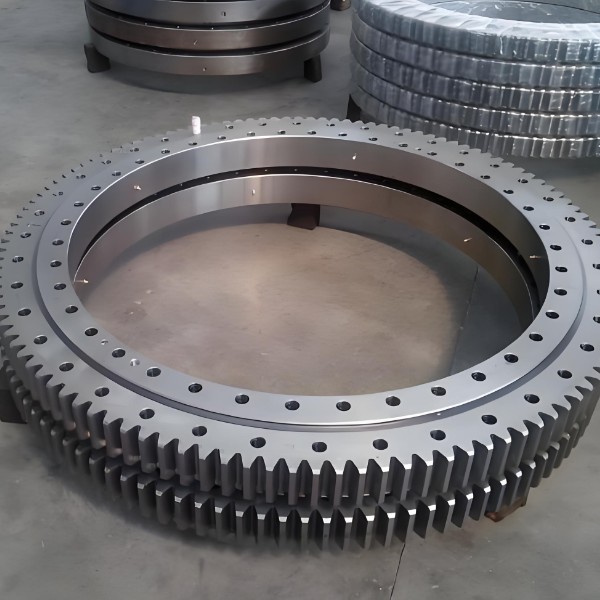

Double Ball Shaped Slewing Bearing For Ship Ports

Double Ball Shaped Slewing Bearing For Ship Ports
Double Ball Shaped Slewing Bearing For Ship PortsDouble Ball Shaped Slewing Bearing For Ship Ports
    Ship ports are among the most unforgiving environments on Earth. Between the constant assault of salt spray, the shock loads from swinging cargo, and the relentless 24/7 operational cycles, standard bearings often fail prematurely. For critical port machinery like harbor mobile cranes, ship-to-shore (STS) loaders, and bulk material handlers, the rotational interface must be bulletproof. This is where our Double Ball Shaped Slewing Bearing for Ship Ports proves its worth.
Request a Quote
Custom slew bearing for Spain customerCustom slew bearing for Spain customer
Custom slew bearing for UnitedKingdom customerCustom slew bearing for UnitedKingdom customer
Slew bearing for Brazll customerSlew bearing for Brazll customer
Slewing bearings exported to RusslaSlewing bearings exported to Russla
Slewing bearings for UnitedStates customerSlewing bearings for UnitedStates customer
Slewing ring exported to Southeast AsiaSlewing ring exported to Southeast Asia
Slewing ring exported to Southwest AsiaSlewing ring exported to Southwest Asia
Slewing ring exported to North AmericaSlewing ring exported to North America
Slewing ring exported to South AmericaSlewing ring exported to South America
Slewing ring exported to South AfricaSlewing ring exported to South Africa
Slew bearing for India customerSlew bearing for India customer
Slew bearing for Latin America customerSlew bearing for Latin America customer
Slewing bearing for Türkiye customerSlewing bearing for Türkiye customer
Slewing bearing for Uzbekistan customerSlewing bearing for Uzbekistan customer
Slewing ring exported to South KoreaSlewing ring exported to South Korea
Slewing ring exported to MexicoSlewing ring exported to Mexico
Custom slew bearing for Mexico customerCustom slew bearing for Mexico customer
Custom slew bearing for Italy customerCustom slew bearing for Italy customer
Custom slew bearing for Vietnam customerCustom slew bearing for Vietnam customer
Slewing bearing for Europe customerSlewing bearing for Europe customer



Product Series Overview: Dual-Row Strength for Marine Giants

Our marine-grade double ball slewing bearings are constructed with two independent rows of steel balls, each optimized for specific load vectors. This architecture is fundamentally different from standard turntables, offering distinct advantages for port applications:
  • Separated Load Management: One row is dedicated primarily to handling immense axial loads (the weight of the boom and cargo), while the second row manages radial forces and tilting moments. This separation prevents overload concentration, significantly extending fatigue life.
  • Enhanced Stability: The dual-row design creates a wider effective base, providing superior resistance to the "tipping" forces experienced when lifting heavy containers off swaying ships.
  • Custom Marine Geometries: We manufacture these units in large diameters (up to several meters) with customized bolt patterns to fit existing port machinery or new vessel designs. Whether you need a flanged version for easy mounting or a plain ring for integrated housing, we tailor the geometry to your specific crane model.


Key Features: Engineered for Salt, Shock, and Stamina

Surviving in a port requires more than just strength; it demands resilience. Our double ball shaped slewing supports are built with features specifically targeting marine challenges:
  1. Superior Corrosion Protection: Standard paint peels; our protection lasts. We utilize hot-dip galvanizing, specialized epoxy coatings, and stainless steel sealing strips to create a barrier against saltwater corrosion. Internal components are treated with anti-rust additives, ensuring the bearing survives years of exposure to humid, saline air.
  2. High Moment Load Capacity: Port cranes operate with long leverage arms. Our dual-row ball arrangement maximizes the distance between load paths, drastically increasing the moment load capacity. This allows for safer lifting of heavier payloads at greater outreach without risking structural deflection.
  3. Shock Load Absorption: Loading and unloading ships involves sudden dynamic shifts. The double-ball configuration acts as a natural shock absorber, distributing impact energy across two contact zones rather than one, reducing the risk of raceway spalling or ball fracture.
  4. Advanced Sealing Systems: Dust, coal dust, grain, and salt crystals are constant enemies. We employ multi-stage labyrinth seals combined with high-durometer rubber lips that maintain contact even under slight misalignment. Some models include grease purging channels to actively flush out contaminants.
  5. Low-Friction Performance in Extreme Cold: For ports in northern latitudes, we use low-temperature greases and optimized internal clearances to ensure smooth rotation even at -40°C, preventing seizure during winter operations.


Applications: The Backbone of Global Trade

Our double ball shaped slewing bearings are the silent workhorses powering the world's busiest terminals:
  • Harbor Mobile Cranes (HMC): Providing the stable rotating base for versatile cranes that move between quaysides, handling everything from containers to heavy project cargo.
  • Ship-to-Shore (STS) Container Cranes: Supporting the massive boom rotation mechanisms that load and unload thousands of TEUs daily, requiring absolute precision and zero-failure reliability.
  • Bulk Cargo Loaders & Unloaders: Essential for grain, coal, and ore terminals where dusty, abrasive environments demand rugged, sealed rotary joints.
  • Floating Cranes & Barge Mounts: Designed to handle the additional complexity of wave-induced motion, keeping the crane stable while the vessel pitches and rolls.
  • Reach Stackers & Straddle Carriers: Used in the rotating chassis of heavy-duty port vehicles that need to pivot quickly and safely under full load.
  • Offshore Loading Arms: Facilitating the safe transfer of liquids and gases between ship and shore, where leak-proof, smooth rotation is a safety critical requirement.
