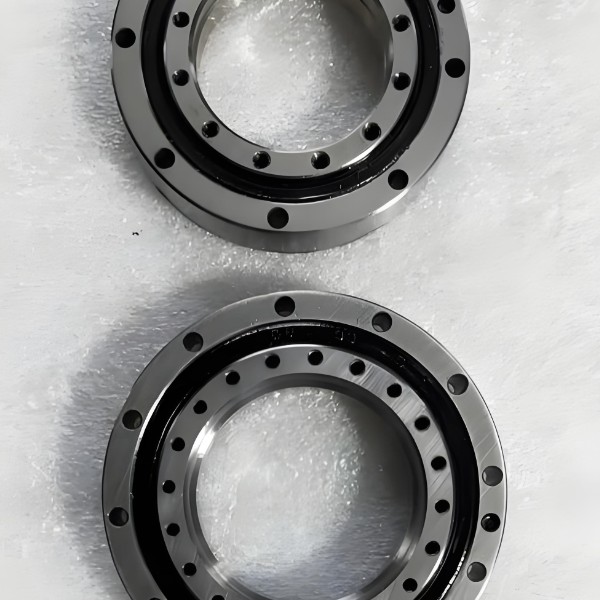

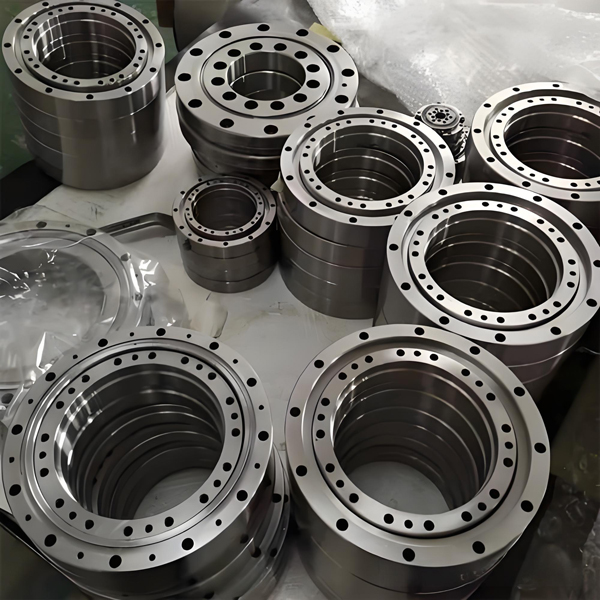

Product Overview: Engineered for the Output Stage

• Optimized for RV & Harmonic Interfaces: The inner and outer ring dimensions are tailored to match standard industry footprints for major reducer types. This allows for seamless integration into existing housing designs without requiring costly re-engineering.
• High Moment Rigidity: Unlike ball bearings that deform under tilting loads, our cylindrical rollers provide line contact. This creates exceptional resistance to moment loads, making them the ideal high-rigidity robot joint bearing for arms that extend far from the pivot point.
• Ultra-Low Backlash Assembly: Through controlled preloading during assembly, we eliminate internal clearance. This results in near-zero backlash, essential for applications requiring repeatable positioning, such as CNC indexing tables and robotic welding cells.
• Compact & Lightweight Design: Space inside a reducer is at a premium. Our thin-section yet high-load capacity design maximizes the torque-to-weight ratio, allowing OEMs to build lighter, more energy-efficient robotic joints.
• Integrated Gear Options: For direct-drive applications or specific reducer configurations, we offer bearings with integrated internal or external gears, ground to high precision to ensure smooth meshing with the reduction stage.

Key Features: Performance You Can Measure

• Exceptional Load Capacity: Capable of supporting simultaneous radial, axial, and moment loads, our industrial gearbox slew ring solutions handle the complex force vectors generated during rapid acceleration and deceleration.
• P4/P2 Precision Grades: Manufactured to strict ISO tolerance classes, ensuring minimal runout. This level of precision is critical for precision rotary table bearing for reducers used in semiconductor manufacturing and optical inspection.
• Low Friction & Smooth Start-up: Despite high preload, our optimized raceway geometry and specialized lubrication channels ensure low starting torque, preventing "stick-slip" phenomena in sensitive servo applications.
• Thermal Stability: Made from vacuum-degassed bearing steel with advanced heat treatment, our low friction crossed roller bearing maintains dimensional stability even under the thermal cycling common in high-speed reducer operations.
• Robust Sealing: Multi-lip seals protect against grease leakage and contaminant ingress, ensuring long service life in harsh industrial environments.

Applications: Powering the Core of Automation

• RV Reducers: Serving as the main output support in heavy-payload industrial robot joints (J1, J2, J3 axes), where high stiffness and shock load resistance are paramount.
• Harmonic Drives: Providing the flexible support needed for lightweight collaborative robots (cobots) and precision SCARA arms, ensuring smooth motion with minimal hysteresis.
• Planetary Gearboxes: Used in high-torque slewing drives for solar trackers and construction machinery, where reliability under continuous load is key.
• Robotics Joints: Integrated into the wrist and elbow joints of 6-axis robots, enabling complex path tracking with high repeatability.
• Precision Turntables: Acting as the core rotation element in CNC rotary tables and indexing heads driven by servo motors and reducers.
