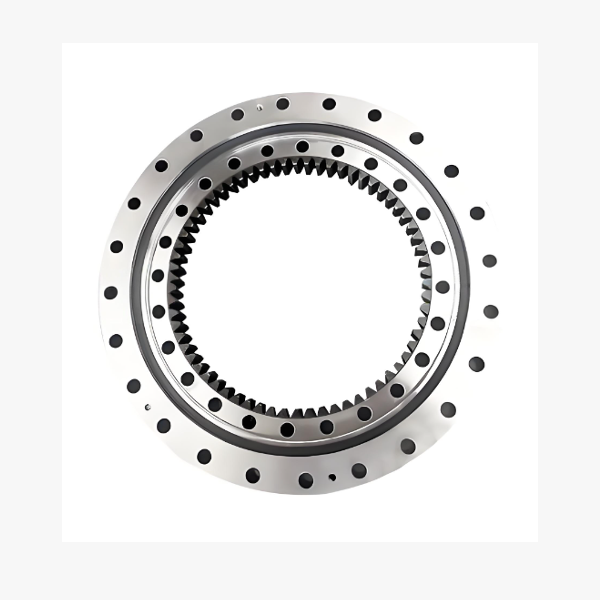

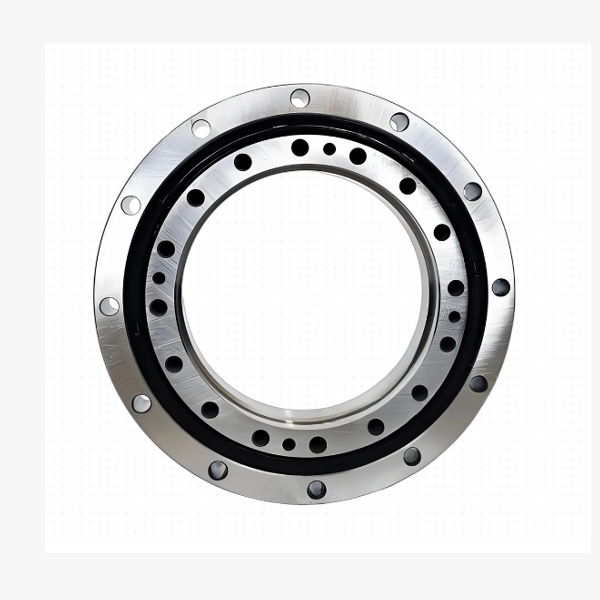

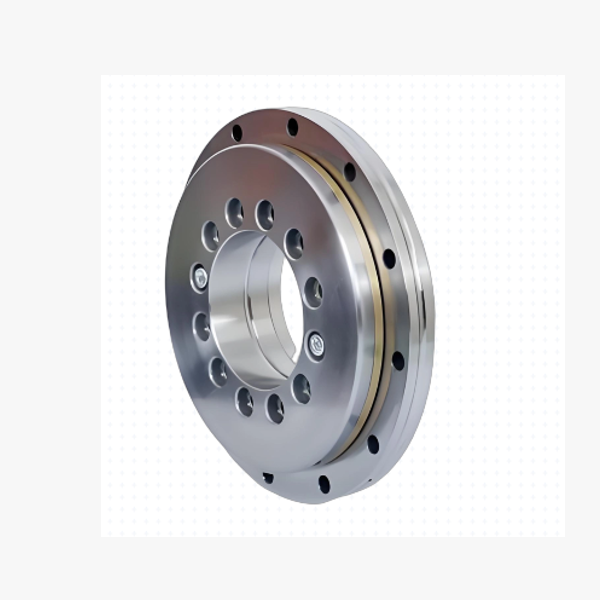

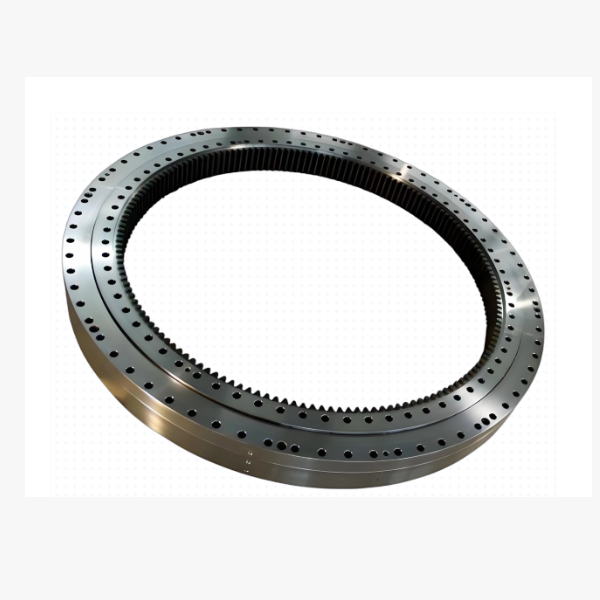

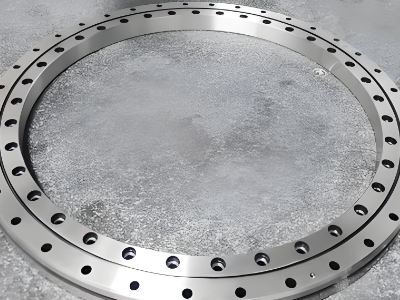

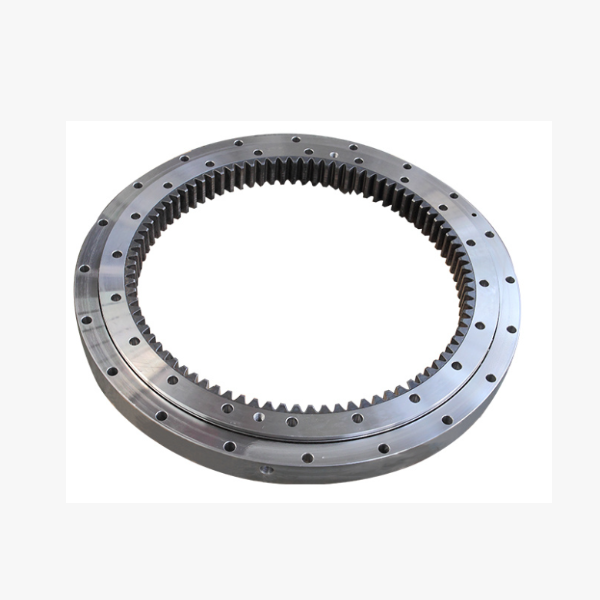

Crossed Roller Slewing Bearing

Innovative Technology & Key Features

Engineering a crossed roller bearing requires a different mindset than standard slewing rings. Here is how our technical approach delivers superior performance:

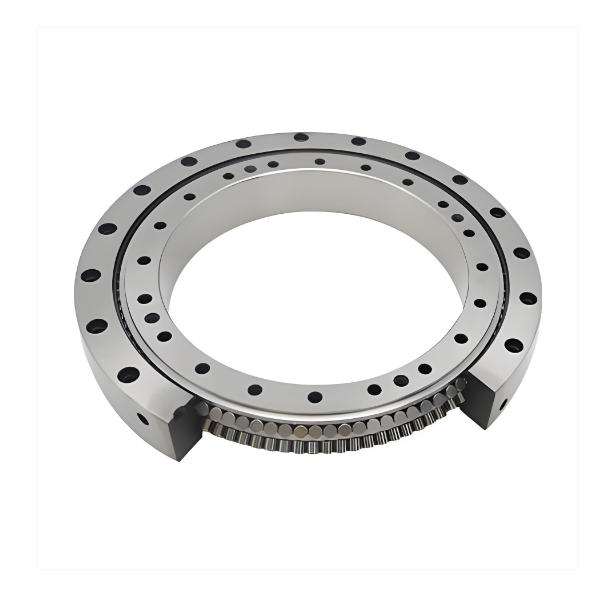

1. Line Contact Geometry for Maximum Rigidity

The core advantage lies in the crossed arrangement of cylindrical rollers. Each roller contacts the raceway along a line rather than a point. This increases the load-carrying capacity per unit volume by up to 30% compared to ball bearings of the same size. More importantly, it drastically reduces deformation under load, ensuring that your robotic arm or antenna stays exactly where you position it.

2. Pre-Loaded Zero-Clearance Assembly

Backlash is the enemy of precision. Our assembly process involves precise pre-loading of the rollers to eliminate all internal clearance. This creates a rigid system with high natural frequency, preventing resonance and ensuring repeatable positioning accuracy down to the arc-second level. This is critical for high-precision rotary tables and CNC machining centers.

3. Segmented Spacer Cages for Smooth Motion

To prevent adjacent rollers from skewing or rubbing against each other (which causes heat and wear), we utilize segmented nylon or phenolic resin spacer cages. These cages hold each roller individually at a 90° orientation, ensuring smooth rolling motion even at higher rotational speeds. This design minimizes friction torque variations, providing consistent control feedback.

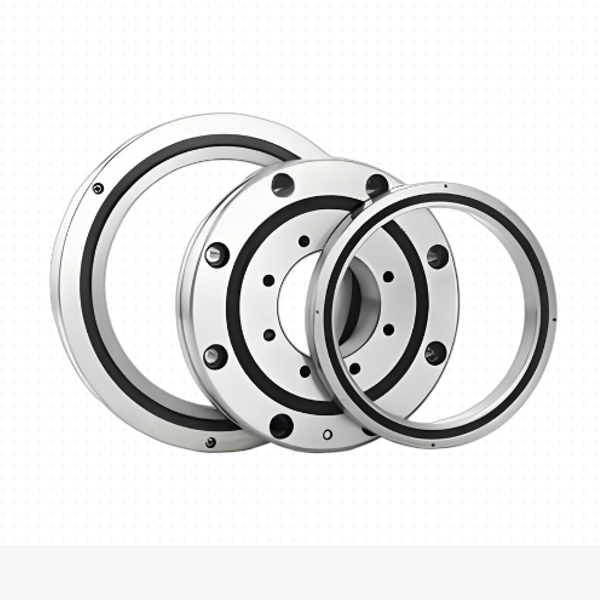

4. Integrated Thin-Wall Design

Many of our crossed roller slewing rings feature a thin-wall construction, allowing them to be mounted directly onto lightweight structures without bulky housings. The inner and outer rings are often designed with mounting holes directly in the ring body, simplifying the overall machine design and reducing weight—a key factor for aerospace and mobile robotics.

5. Advanced Sealing for Clean Environments

While known for precision, these bearings also operate in sensitive environments like semiconductor manufacturing or medical imaging. We offer low-friction labyrinth seals with rubber lips that effectively exclude dust and chips while maintaining the low torque required for delicate operations.

Technical Parameters

Note: Specifications below represent our CR-Series standard range. Custom thin-wall and high-precision variants are available.

Parameter	Specification Range	Notes
Product Series	CR-Series (Crossed Roller)	High rigidity, compact design.
Outer Diameter (OD)	80 mm – 1,200 mm	Larger sizes available upon request.
Inner Diameter (ID)	60 mm – 1,100 mm	Thin-wall options reduce ID/OD difference.
Overall Height	12 mm – 150 mm	Extremely compact cross-section.
Roller Configuration	Cylindrical Rollers crossed at 90°	Line contact for max rigidity.
Static Axial Load	Up to 800 kN	High capacity relative to size.
Static Radial Load	Up to 450 kN	Excellent lateral stability.
Static Tilting Moment	Up to 600 kNm	Superior resistance to deflection.
Dynamic Load Rating	Calculated per ISO 76 / DIN 798	Optimized for precision cycling.
Ring Material	42CrMo4, SUJ2 (Bearing Steel)	Vacuum degassed for purity.
Roller Material	GCr15SiMn / 100Cr6	Precision ground cylindrical rollers.
Hardness	58 – 62 HRC	Uniform hardness for wear resistance.
Precision Class	P0, P6, P5, P4 (ISO)	High-precision grades available.
Internal Clearance	Zero Clearance (Pre-loaded)	Optional slight preload for specific apps.

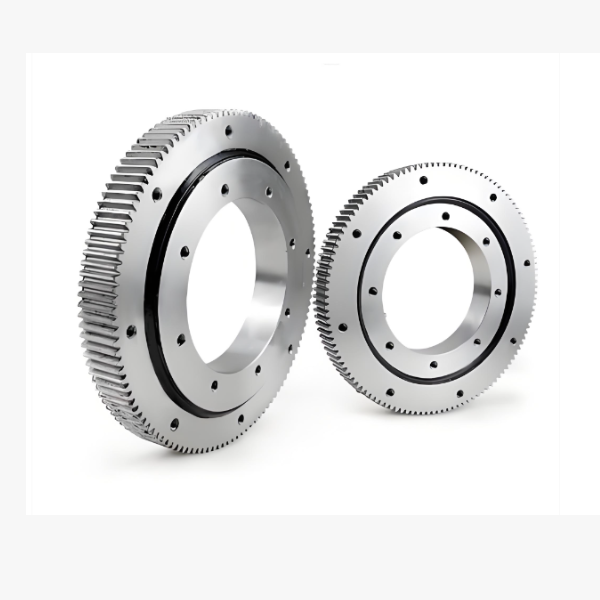

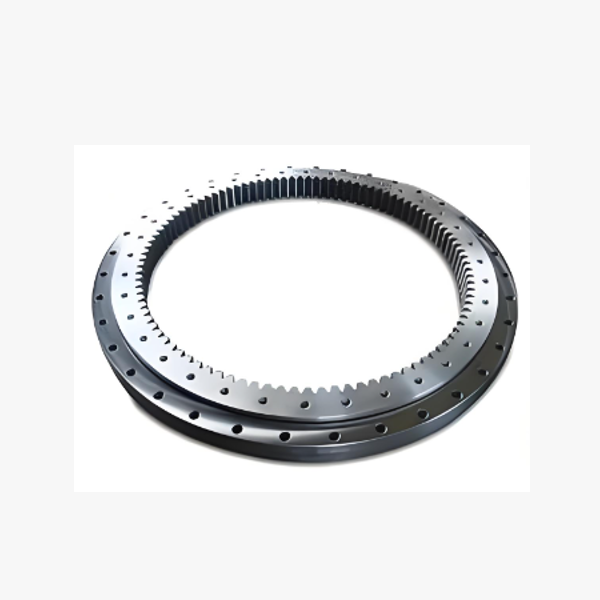

Gear Options	External/Internal Spur Gear	Module m=1 to m=10.
Gear Accuracy	DIN Class 7 / Class 6	High precision for servo drives.
Sealing Type	Low-Friction Labyrinth + Rubber Lip	IP54/IP65 options.
Operating Temp	-30°C to +80°C (Standard)	Special seals/lube for extremes.
Surface Finish	Zinc Plated, Black Oxide, Passivated	Corrosion protection available.
Mounting	Counterbored holes in ring body	Simplifies installation.
Certifications	ISO 9001, CE, RoHS	Full traceability provided.

Application Fields

Our crossed roller slewing bearings are the hidden heroes behind high-performance machinery:

Industrial Robotics & Automation

From 6-axis articulated arms to SCARA robots and collaborative bots (cobots), our bearings provide the joint rigidity needed for repeatable welding, assembly, and pick-and-place tasks. The zero-backlash design ensures the robot stops exactly where programmed.

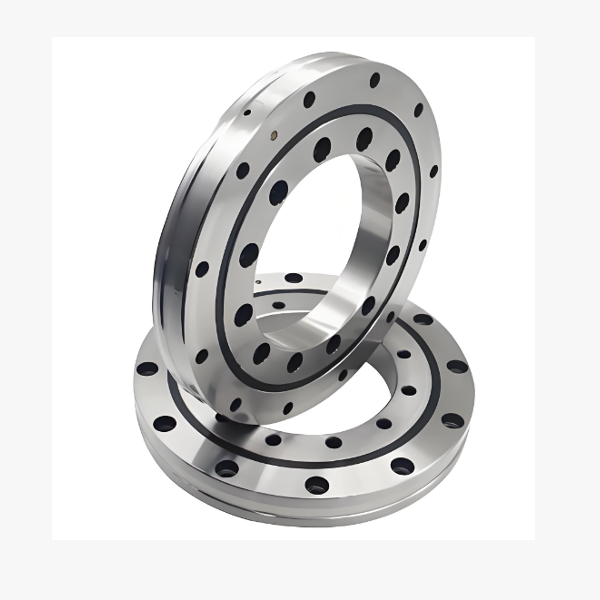

Precision Machine Tools

Rotary tables, milling heads, and indexing mechanisms in CNC machines rely on the crossed roller bearing for its ability to maintain accuracy under cutting forces. The high stiffness prevents chatter and ensures superior surface finishes on machined parts.

Medical Imaging & Surgical Robots

CT scanners, MRI gantries, and surgical robotic arms require smooth, jerk-free rotation with absolute positional accuracy. Our low-friction, high-precision bearings meet the stringent safety and performance standards of the medical industry.

Aerospace & Defense

Satellite communication antennas, radar dishes, and missile launchers demand bearings that can withstand shock loads while maintaining pinpoint aiming accuracy. The compact, lightweight nature of our crossed roller slewing rings makes them ideal for mobile defense platforms and airborne systems.

Semiconductor Manufacturing

Wafer handling robots and lithography equipment operate in cleanrooms where dust generation must be minimized. Our sealed, low-particulate bearings ensure contamination-free operation while delivering the nanometer-level positioning required for chip fabrication.

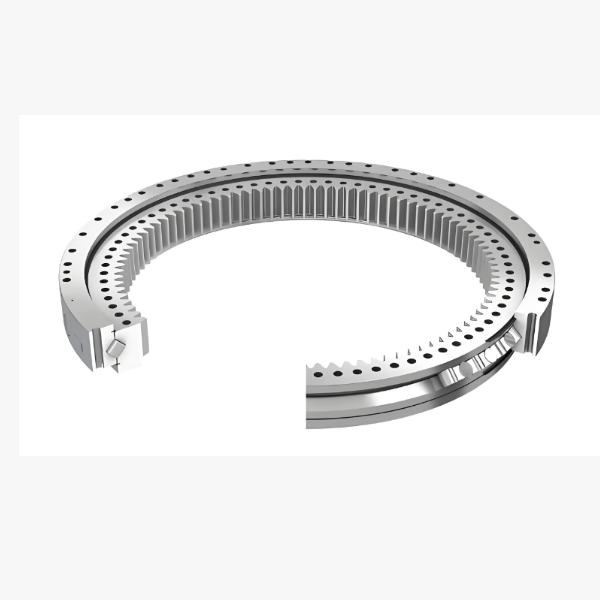

Renewable Energy (Solar Trackers)

While large wind turbines use massive roller bearings, precision dual-axis solar trackers for concentrated photovoltaic (CPV) systems utilize crossed roller bearings to maintain exact sun alignment throughout the day, maximizing energy efficiency.

Customization Solutions

Precision applications often require bespoke solutions. As a flexible OEM slewing bearing supplier, we tailor our crossed roller bearings to your exact specs:

Ultra-High Precision Grades: We can manufacture bearings to ISO P4 or even P2 precision classes for applications demanding sub-arc-second accuracy.

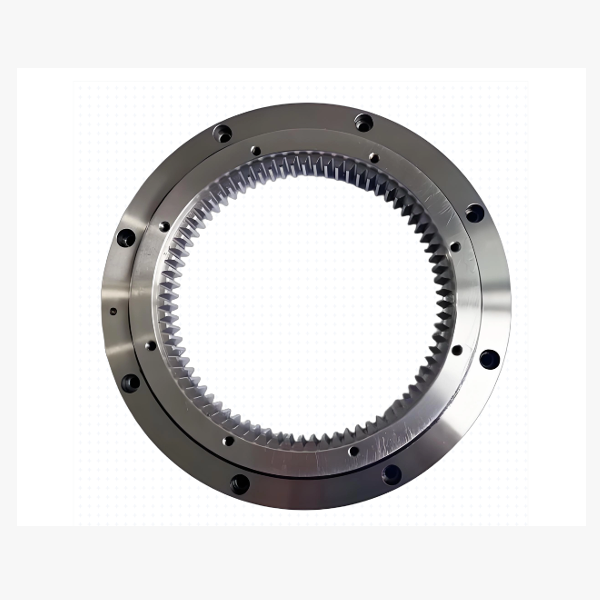

Special Materials: For corrosive or non-magnetic environments, we offer stainless steel (440C, 17-4PH) or ceramic hybrid options (ceramic rollers with steel rings).
Integrated Encoder Mounts: We can machine specific flanges or pockets to integrate absolute encoders directly into the bearing assembly, simplifying your control system design.
Custom Gear Profiles: Beyond standard spur gears, we offer helical gears or custom tooth modifications to minimize noise and optimize torque transmission for servo motors.
Thin-Wall Variants: For space-constrained designs, we can reduce wall thickness further while maintaining structural integrity through advanced FEA optimization.

Why Choose Us?

In the world of precision engineering, tolerances matter. Here is why global engineers and procurement managers choose us as their crossed roller bearing partner:

Precision-First Manufacturing: Our facility is equipped with high-end grinding and super-finishing machines capable of achieving micron-level tolerances. We don't just meet standards; we exceed them for critical applications.
Rigorous Quality Control: Every bearing undergoes 100% inspection for runout, torque variation, and noise levels. We provide full inspection reports and material certificates (EN 10204 3.1) with every shipment.
Engineering Collaboration: Our team includes experienced application engineers who work with you to optimize the bearing selection for your specific load case and mounting configuration. We solve problems before they happen.
Competitive Pricing for High-End Specs: We offer the quality of premium European and Japanese brands at a significantly lower cost, thanks to our efficient manufacturing processes and direct-to-customer model.
Fast Turnaround for Prototypes: We understand the pace of R&D. We can produce prototype samples of custom crossed roller slewing rings in as little as 10-15 days to keep your development cycle on track.

Frequently Asked Questions (FAQ)

Q1: What is the main difference between a Crossed Roller Bearing and a Four-Point Contact Ball Bearing?
A: The main difference is contact type and rigidity. Crossed roller bearings use line contact (cylindrical rollers), offering much higher rigidity and load capacity for their size, with virtually zero deformation. Four-point contact ball bearings use point contact, which allows for higher speeds and misalignment tolerance but offers less rigidity under heavy moment loads. Choose crossed rollers for precision; choose ball bearings for general-purpose heavy lifting.

Q2: Can you supply bearings with integrated gears for direct drive motors?
A: Yes. We specialize in integrating high-precision spur or helical gears directly onto the inner or outer ring of the crossed roller slewing bearing. We can match gear modules and pressure angles to your specific servo motor requirements.

Q3: How do you handle lubrication for sealed crossed roller bearings?
A: Our bearings come pre-lubricated with high-grade synthetic grease suitable for a wide temperature range. They feature low-friction seals that retain grease effectively. For long-life applications, we can also design grease nipples for re-lubrication or specify special food-grade/cleanroom-compatible lubricants.

Q4: What is the typical lead time for a custom precision bearing?
A: For standard customizations (e.g., specific gear or hole pattern), lead time is typically 20-30 days. For ultra-high precision grades (P4/P2) or exotic materials, it may take 35-45 days. We always strive to expedite urgent R&D orders.

Q5: Do you provide technical support for installation?
A: Absolutely. We provide detailed installation manuals including torque sequences, alignment jigs recommendations, and preload adjustment procedures. Our engineering team is available for video consultations to guide your assembly team.

Ready to elevate your machine's precision? Contact our team today for a consultation on our Crossed Roller Slewing Bearings. Let's engineer the perfect rotation for your next breakthrough.
