Internal Gear Crossed Roller Slewing Bearings

When engineering compact rotary systems, space is the ultimate currency. While external gears are common, they often protrude beyond the bearing’s outer diameter, increasing the overall footprint and exposing teeth to damage. For applications like collaborative robots, stabilized turrets, or enclosed indexing tables, this external bulk is a liability.

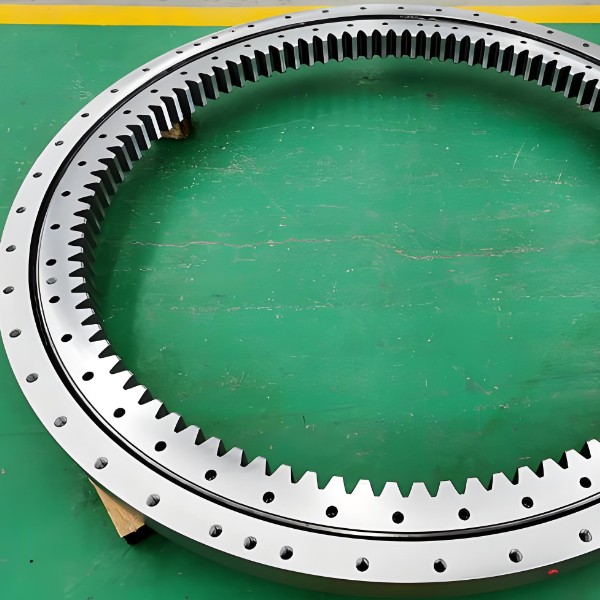

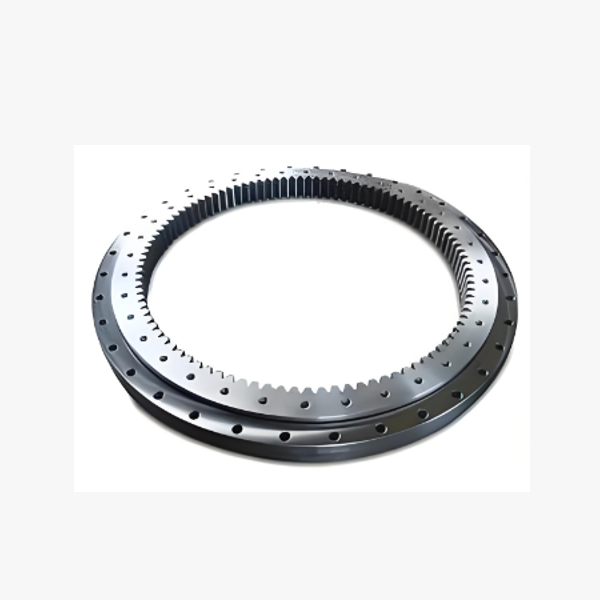

Our Internal Gear Crossed Roller Slewing Bearings solve this by moving the drive interface inward. By integrating precision-ground teeth directly into the inner ring (or sometimes the outer ring, depending on configuration), we create a space-saving internal tooth bearing that fits entirely within the system’s existing envelope. This design allows the motor pinion to engage from the inside or through a central aperture, resulting in a sleeker, more protected, and highly efficient assembly. As a specialized China internal gear bearing manufacturer, we have refined the art of cutting internal gears on thin-walled rings without compromising the geometric integrity of the raceways.

Request a Quote

Custom slew bearing for Spain customer

Custom slew bearing for UnitedKingdom customer

Slew bearing for Brazll customer

Slewing bearings exported to Russla

Slewing bearings for UnitedStates customer

Slewing ring exported to Southeast Asia

Slewing ring exported to Southwest Asia

Slewing ring exported to North America

Slewing ring exported to South America

Slewing ring exported to South Africa

Slew bearing for India customer

Slew bearing for Latin America customer

Slewing bearing for Türkiye customer

Slewing bearing for Uzbekistan customer

Slewing ring exported to South Korea

Slewing ring exported to Mexico

Custom slew bearing for Mexico customer

Custom slew bearing for Italy customer

Custom slew bearing for Vietnam customer

Slewing bearing for Europe customer

Product Deep Dive: Engineering the Inner Drive

Manufacturing an internal gear crossed roller slewing bearing presents unique challenges, particularly in maintaining concentricity between the gear pitch circle and the bearing raceway after heat treatment.

Precision Internal Gear Cutting: We utilize advanced CNC shaping and skiving processes to cut internal teeth with DIN Class 5 or 6 accuracy. Unlike broached gears which can induce stress, our grinding and finishing methods ensure smooth meshing and minimal noise, critical for a precision internal gear slew drive.
Integrated Structural Integrity: The gear teeth are not an add-on; they are an integral part of the hardened bearing ring. This monolithic construction ensures that torque is transferred directly to the rolling elements without intermediate interfaces that could introduce play or flex.
High Moment Rigidity: Like all crossed roller designs, our high-torque enclosed rotary table bearings use cylindrical rollers arranged at 90 degrees. This provides superior resistance to tilting moments, making them ideal for cantilevered loads where stability is paramount.
Protected Gear Interface: By placing the gear internally, the teeth are shielded from dust, chips, and accidental impact. This significantly reduces wear and extends maintenance intervals, a key advantage for turret rotation mechanisms operating in harsh field conditions.
Zero Backlash Performance: Through precise preloading of the roller set and tight control of gear tooth backlash during manufacturing, we deliver a zero backlash internal tooth ring solution essential for high-repeatability positioning tasks.

Key Features: Efficiency Hidden Inside

Ultra-Compact Footprint: The internal gear design eliminates external overhangs, allowing for the smallest possible system diameter. Perfect for space-saving internal tooth bearing applications in dense robotic cells.
Direct Drive Ready: Optimized for coupling with frameless torque motors, enabling high-dynamic response and eliminating the need for bulky gearboxes.
Superior Load Distribution: The internal gear geometry allows for a larger effective pitch diameter relative to the bearing size, improving torque capacity and reducing load on individual teeth.
Enhanced Durability: Shielded teeth mean less contamination and lower risk of damage during handling or operation, ensuring long-term reliability for your custom enclosed rotary solution.
Customizable Modules: We offer a wide range of modules and pressure angles to match your specific motor pinion requirements, ensuring optimal efficiency and lifespan.

Applications: Where Compactness Meets Power

Our internal gear crossed roller slewing bearings are the preferred choice for engineers designing high-density rotary systems:

Collaborative & Industrial Robots: Ideal for wrist and elbow joints where a slim profile is needed to avoid collisions and maximize workspace.
Defense & Security Turrets: Used in camera gimbals and weapon stations where a low-profile, protected drive system is critical for survivability and aerodynamics.
Medical Imaging: Essential for CT and MRI gantry rotation systems where smooth, quiet, and compact motion is required within tight scanner bores.
Semiconductor Equipment: Deployed in wafer handlers and aligners where space is limited and precision is non-negotiable.
Automated Warehousing: Perfect for compact rotary actuators in AGVs and sorting robots that operate in confined aisles.
