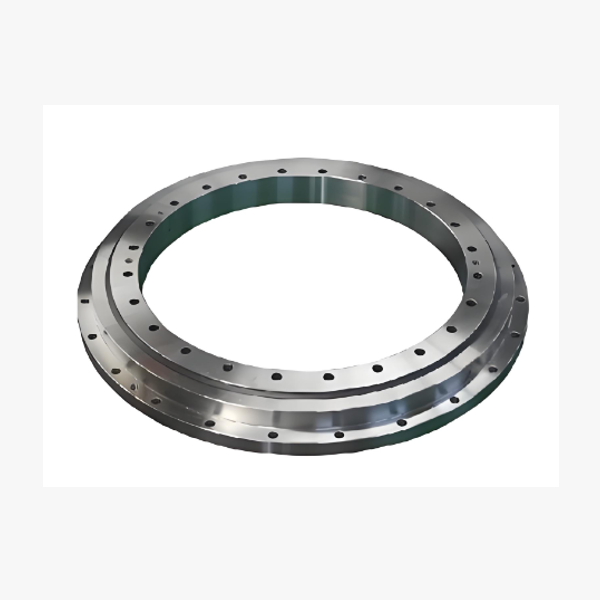

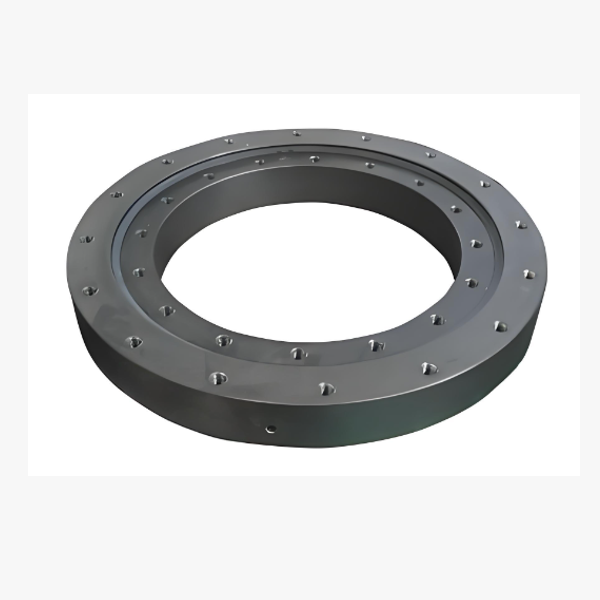

High-Precision Lightweight Flange Slewing Bearings

In the world of advanced robotics and aerospace, mass is the enemy of performance. Every gram added to a moving joint increases inertia, slows down response times, and drains battery life. Yet, engineers often compromise on rigidity or precision when trying to shed weight. This is the challenge we solved with our High-Precision Lightweight Flange Slewing Bearing.

This isn't just a "lighter" version of a standard bearing; it is a complete reimagining of the rotary interface. By combining aerospace-grade materials, optimized topology, and an integrated flange design, we deliver a component that offers sub-micron positioning accuracy while weighing up to 40% less than conventional steel equivalents. The built-in flange eliminates heavy adapter plates, further reducing system mass and simplifying assembly. As a specialized Chinese manufacturer focused on high-end motion control, we serve industries where the balance between strength, weight, and precision is critical. We don't just make bearings lighter; we make your entire system faster, more efficient, and more responsive.

Request a Quote

Custom slew bearing for Spain customer

Custom slew bearing for UnitedKingdom customer

Slew bearing for Brazll customer

Slewing bearings exported to Russla

Slewing bearings for UnitedStates customer

Slewing ring exported to Southeast Asia

Slewing ring exported to Southwest Asia

Slewing ring exported to North America

Slewing ring exported to South America

Slewing ring exported to South Africa

Slew bearing for India customer

Slew bearing for Latin America customer

Slewing bearing for Türkiye customer

Slewing bearing for Uzbekistan customer

Slewing ring exported to South Korea

Slewing ring exported to Mexico

Custom slew bearing for Mexico customer

Custom slew bearing for Italy customer

Custom slew bearing for Vietnam customer

Slewing bearing for Europe customer

Product Series Overview: Engineered for Speed and Accuracy

Our high-precision lightweight flange series is tailored for dynamic applications where rapid acceleration and exact positioning are non-negotiable.

Advanced Material Science: We utilize high-strength aluminum alloys for housing components and specialized case-hardened steels for raceways, achieving an optimal strength-to-weight ratio without sacrificing durability.
Integrated Flange Architecture: The mounting flange is machined as a single unit with the bearing ring (or securely bonded in hybrid designs), removing the need for separate brackets. This reduces part count, potential alignment errors, and overall weight.
Ultra-Thin Cross-Section: Our thin-section design minimizes the axial and radial footprint, allowing for sleeker robot arms and more compact payload configurations.
Preloaded Zero-Backlash Options: For applications requiring absolute repeatability, we offer preloaded configurations that eliminate play, ensuring smooth, jitter-free motion even at high speeds.

Key Features: The Physics of Lightness and Precision

Why specify a high-precision lightweight flange slewing bearing? The benefits transform the capabilities of your machine:

Drastically Reduced Inertia: The lower rotating mass allows for faster acceleration and deceleration cycles. This means your robot can move quicker, stop more precisely, and complete tasks in less time, boosting overall throughput.
Micron-Level Positioning Accuracy: Despite the weight reduction, our rigorous manufacturing processes ensure runout values in the micron range. This is essential for tasks like laser cutting, surgical assistance, and optical inspection.
Energy Efficiency: Less weight means less torque is required to move the joint. This directly translates to lower energy consumption and extended battery life for mobile robots and UAVs.
Simplified, Lightweight Assembly: The integrated flange removes the need for heavy steel adapters and excessive fasteners. This not only saves weight but also reduces assembly time and potential points of failure.
High Stiffness-to-Weight Ratio: Through finite element analysis (FEA), we optimize material distribution to maintain high structural rigidity. The result is a bearing that feels solid under load but weighs a fraction of traditional units.

Applications: Powering the Next Generation of Mobile & Precise Systems

The high-precision lightweight flange slewing bearing is the core enabler for cutting-edge technologies:

Collaborative Robots (Cobots) & Humanoids: Critical for arm joints where low inertia ensures safe interaction with humans and allows for fluid, natural movements.
Aerospace & Satellite Systems: Used in solar array drives, antenna positioning, and sensor gimbals where every gram launched into orbit costs money and affects maneuverability.
Medical Robotics: Ideal for surgical arms and diagnostic imaging devices that require sterile, lightweight, and vibration-free operation with extreme precision.
Drone Gimbals & Stabilization: Provides the smooth, responsive rotation needed for high-resolution cameras and LiDAR sensors on UAVs, extending flight time through weight savings.
Portable Inspection & Defense Equipment: Enables lightweight, handheld, or tripod-mounted surveillance and targeting systems that operators can deploy rapidly without fatigue.
High-Speed Automation: Perfect for pick-and-place heads and sorting mechanisms where speed and accuracy are the primary drivers of productivity.

Tag: High-Precision Flange Slewing Bearings | Lightweight Flange Slewing Bearings
