Product Deep Dive: How We Achieve Lightness Without Sacrificing Strength

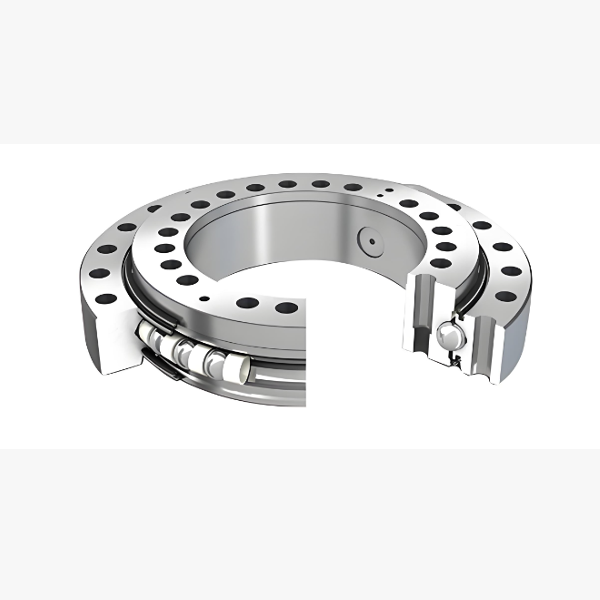

• Optimized Raceway Geometry: By precisely calculating the contact angles (typically 45°), we maximize the load distribution efficiency. This allows us to use slightly smaller cross-sections compared to double-row designs while maintaining equivalent static load ratings for many applications.
• Advanced Material Selection: While standard models use high-strength carbon steel (GCr15/52100) with optimized heat treatment to reduce wall thickness safely, we also offer aluminum alloy outer rings for non-critical load paths where weight reduction is paramount. This hybrid approach (steel races, aluminum housing) can reduce total bearing weight by up to 40%.
• Single-Row Simplicity: Eliminating the second row of balls and the associated complex spacer systems significantly reduces the overall height and mass. This results in a low inertia slewing solution that accelerates and decelerates faster, reducing the torque requirements for your servo motors.
• Integrated Sealing & Lubrication: We utilize low-friction, lightweight sealing strips that protect the internal mechanism without adding drag or bulk, ensuring smooth operation even at high rotational speeds.

Key Performance Characteristics

1. High-Speed Capability: Due to the reduced mass and optimized ball circulation, our single-row bearings can operate at significantly higher RPMs than crossed roller or double-row ball equivalents. This makes them ideal for dynamic applications requiring rapid indexing.
2. Low Starting Torque: The precision-ground raceways and optimized preload result in exceptionally low friction. This ensures that even small servo motors can initiate movement smoothly, a critical factor for battery-powered portable equipment.
3. Compact Axial Height: With heights often ranging from just a few millimeters to a couple of centimeters depending on diameter, these bearings allow for ultra-slim machine designs, crucial for collaborative robots and space-constrained automation cells.
4. Versatile Load Handling: Despite their light weight, the four-point contact design provides excellent rigidity against moment loads, preventing wobble in cantilevered structures like camera gimbals or sensor turrets.

Strategic Applications for Lightweight Rotation

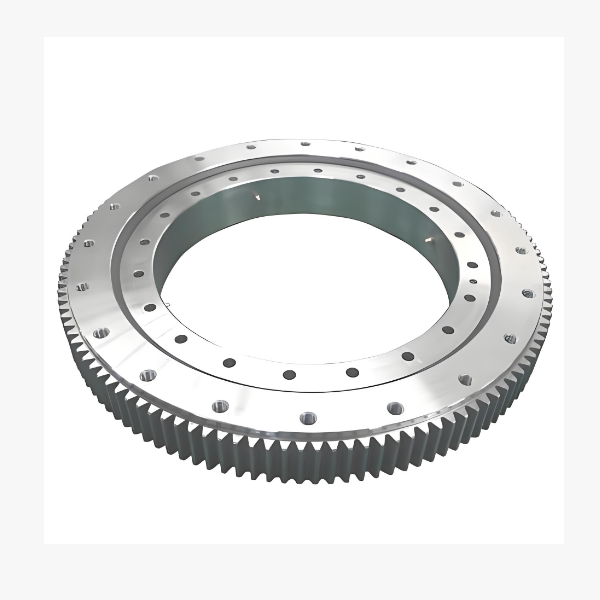

• Robotics & Automation: The core component for robotic wrists, elbow joints, and AGV (Automated Guided Vehicle) turntables. The low inertia allows for faster cycle times and lower energy consumption.
• Medical Devices: Essential for C-arm X-ray machines, surgical lamp positioning, and patient table rotation, where smooth, quiet, and effortless manual or motorized adjustment is required.
• Aerospace & Defense: Used in UAV (drone) gimbal systems, radar antenna pedestals, and satellite tracking mounts where every kilogram of payload affects flight time and fuel efficiency.
• Portable Industrial Equipment: Ideal for handheld laser scanners, mobile inspection units, and lightweight construction tools that require precise rotational alignment.
• Renewable Energy Sensors: Supports lightweight solar tracking sensors and wind lidar systems that need to pivot quickly to follow environmental changes.
