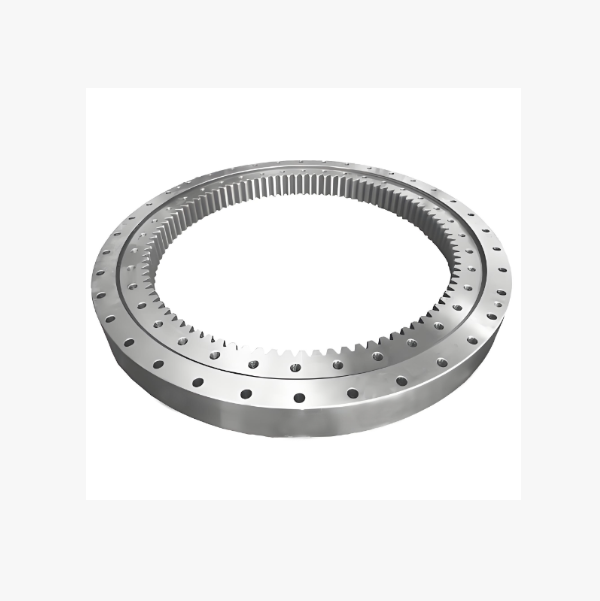

Strong And Wear-Resistant Internal Gear Slewing Bearing

Strong And Wear-Resistant Internal Gear Slewing Bearing
Strong And Wear-Resistant Internal Gear Slewing BearingStrong And Wear-Resistant Internal Gear Slewing Bearing
    As a specialized manufacturer in China with deep roots in heavy industry, we understand that an internal gear design offers a compact, protected footprint, but it also concentrates immense stress on the gear teeth and raceways. Our engineering team has developed a specific series of bearings that combines ultra-high structural strength with advanced wear-resistance technologies, ensuring your machinery keeps turning even when the dust is thickest and the loads are heaviest.
Request a Quote
Custom slew bearing for Spain customerCustom slew bearing for Spain customer
Custom slew bearing for UnitedKingdom customerCustom slew bearing for UnitedKingdom customer
Slew bearing for Brazll customerSlew bearing for Brazll customer
Slewing bearings exported to RusslaSlewing bearings exported to Russla
Slewing bearings for UnitedStates customerSlewing bearings for UnitedStates customer
Slewing ring exported to Southeast AsiaSlewing ring exported to Southeast Asia
Slewing ring exported to Southwest AsiaSlewing ring exported to Southwest Asia
Slewing ring exported to North AmericaSlewing ring exported to North America
Slewing ring exported to South AmericaSlewing ring exported to South America
Slewing ring exported to South AfricaSlewing ring exported to South Africa
Slew bearing for India customerSlew bearing for India customer
Slew bearing for Latin America customerSlew bearing for Latin America customer
Slewing bearing for Türkiye customerSlewing bearing for Türkiye customer
Slewing bearing for Uzbekistan customerSlewing bearing for Uzbekistan customer
Slewing ring exported to South KoreaSlewing ring exported to South Korea
Slewing ring exported to MexicoSlewing ring exported to Mexico
Custom slew bearing for Mexico customerCustom slew bearing for Mexico customer
Custom slew bearing for Italy customerCustom slew bearing for Italy customer
Custom slew bearing for Vietnam customerCustom slew bearing for Vietnam customer
Slewing bearing for Europe customerSlewing bearing for Europe customer


Product Overview

Unlike external gear models where teeth are exposed to direct impact and debris, our internal gear slewing bearings feature gear teeth cut into the inner diameter of the outer ring (or sometimes the inner ring, depending on configuration). This "hidden" gear arrangement provides two critical benefits:
  1. Protection from Debris: The gear mesh is naturally shielded by the bearing structure, reducing the risk of rock ingress and accidental damage.
  2. Compact Integration: It allows for a tighter machine envelope, perfect for the swing circles of excavators, the rotation platforms of mining drills, and the turrets of mobile cranes.

However, protecting the gear is only half the battle. The real challenge is ensuring the teeth and raceways can withstand millions of cycles of high-torque transmission without pitting, spalling, or excessive wear.


Key Features

To deliver a truly wear-resistant slewing ring, we go beyond standard manufacturing practices. Our production process focuses on three pillars of durability:
  • Deep-Hardened Gear Teeth: We utilize precise induction hardening not just on the raceways, but specifically optimized for the internal gear teeth. This creates a hard, wear-resistant surface layer (HRC 55-60) while maintaining a tough, ductile core to absorb shock loads without cracking. This dual-property is essential for heavy-duty applications involving sudden starts and stops.
  • High-Tensile Alloy Steel Construction: We exclusively use premium alloy steels like 42CrMo4 and 50Mn, vacuum-degassed to remove impurities. This ensures the bearing ring itself possesses the structural strength to resist deformation under massive radial and axial loads, preventing the "ovalization" that leads to premature failure.
  • Optimized Tooth Profile & Grinding: Our internal gears are precision-ground after heat treatment to correct any distortion. We optimize the tooth profile (often using modified involute profiles) to ensure even load distribution across the tooth face, minimizing point loading and extending gear life significantly.
  • Heavy-Duty Sealing Systems: Recognizing that abrasion often starts with contamination, our bearings feature multi-stage labyrinth seals combined with high-grade NBR or Viton lip seals. These keep abrasive dust out and high-viscosity grease in, creating a clean operating environment for the internal gear mechanism.


Real-World Applications

Our strong internal gear slewing bearings are the preferred choice for industries where downtime costs thousands of dollars per hour:
  • Mining & Drilling Rigs: Essential for the rotation tables of blast hole drills and rotary drilling rigs, where torque requirements are extreme and dust is omnipresent.
  • Hydraulic Excavators: Used in the swing drives of mid-to-large sized excavators, providing the robust torque transmission needed to move heavy buckets through tough soil.
  • Tunnel Boring Machines (TBMs): Critical for the cutterhead rotation systems, requiring bearings that can handle immense thrust loads and continuous operation in confined, dirty spaces.
  • Offshore Cranes & Winches: Deployed in harsh marine environments where saltwater corrosion and high dynamic loads demand a durable rotary solution with protected gearing.
  • Steel Mill Handling Equipment: Ideal for ladle cranes and transfer cars that operate under high temperatures and heavy shock loads.
