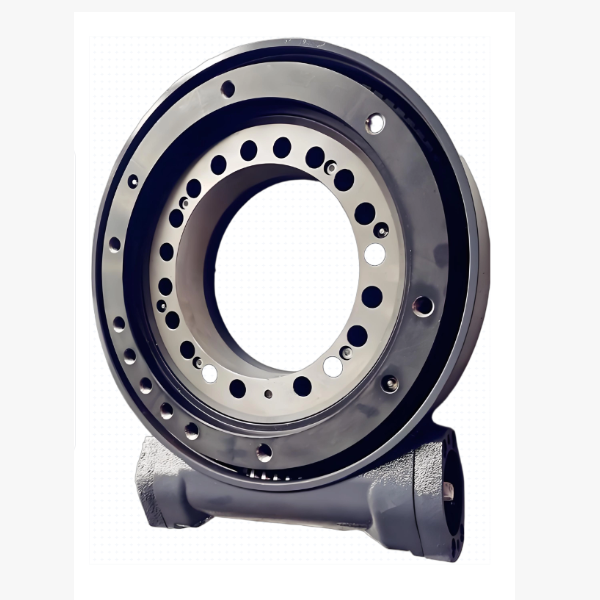

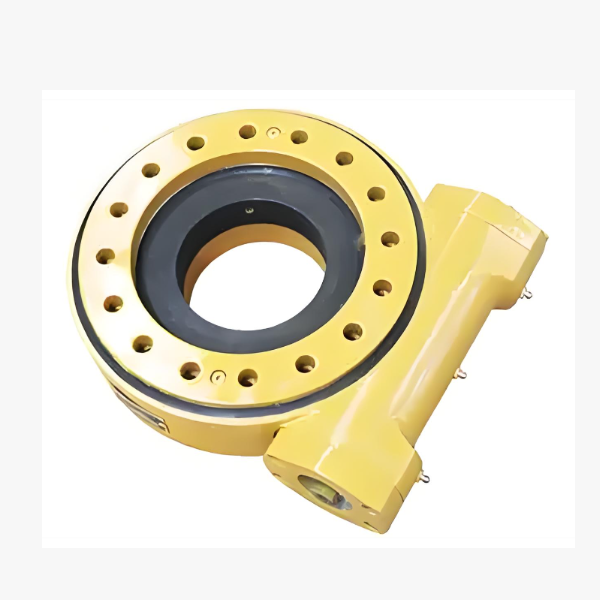

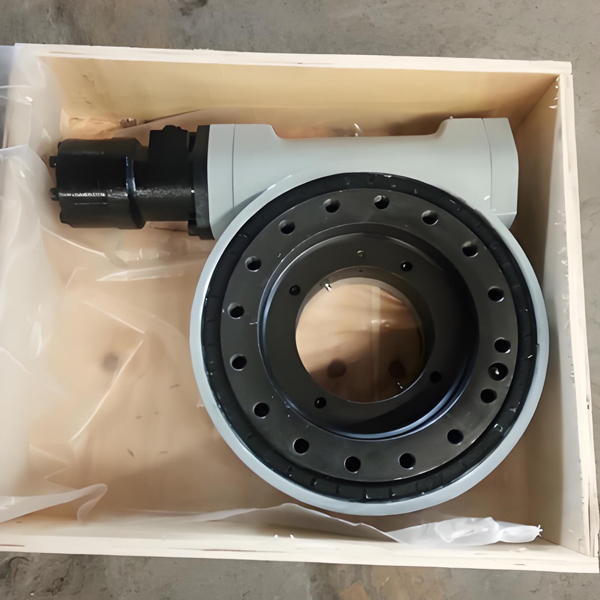

Product Series Overview: Defining Stability Tiers

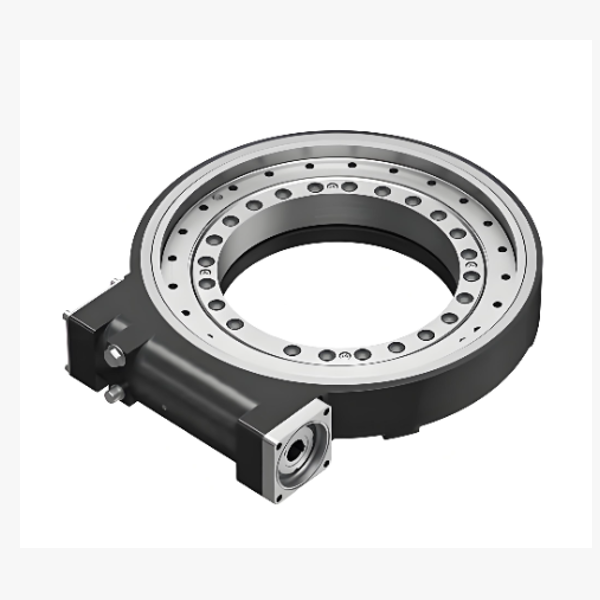

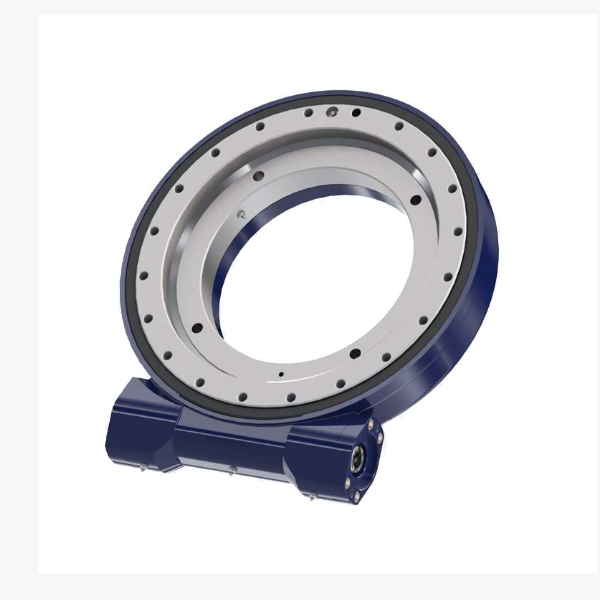

• SE Series (Standard High-Stability): The Reliable Backbone
  Designed for applications requiring robust stability and reliable performance in demanding conditions. The SE Series features hardened alloy steel gears, optimized globoid geometry for reduced backlash (<0.5mm typical), and a rugged ductile iron housing. It is the ideal choice for single-axis solar trackers, general industrial indexing tables, and medium-duty automation where consistent performance and cost-effectiveness are key.
• PE Series (Premium High-Stability): The Ultimate in Rigidity
  Engineered for mission-critical applications where even the slightest deviation is unacceptable. The PE Series undergoes ultra-precision grinding to achieve backlash levels as low as <0.1mm, enhanced bearing arrangements for maximum radial/axial load capacity, and specialized high-viscosity lubricants for damping vibrations. With a refined tooth profile that maximizes contact ratio, the PE Series offers superior smoothness and stiffness, making it the gold standard for dual-axis solar trackers, satellite communication antennas, medical imaging gantries, and high-speed robotics.

Key Features: Why Stability Matters

1. Ultra-Low Backlash & High Repeatability: The multi-tooth engagement of the globoid gear minimizes elastic deformation and clearance, ensuring your equipment returns to the exact same position every time, critical for tracking and indexing tasks.
2. Exceptional Torsional Stiffness: The broad contact area acts as a rigid coupling, resisting twisting forces from wind, shock loads, or rapid acceleration. This prevents "wind-up" and ensures immediate response to control signals.
3. Inherent Self-Locking Safety: The high friction angle of the worm gear design mechanically locks the output shaft when power is off. This eliminates the need for external brakes in many applications, preventing load drop or drift due to gravity or wind gusts.
4. Superior Vibration Damping: The PE Series, in particular, is optimized to absorb and dampen high-frequency vibrations, ensuring smooth operation in sensitive applications like optical positioning or medical scanning.
5. All-Weather Durability: Both series feature IP66/IP67/IP68 sealing ratings, protecting internal components from dust, moisture, salt spray, and extreme temperatures (-40°C to +80°C). The PE Series offers optional C5-M corrosion-resistant coatings for offshore or chemical environments.

Applications: Where Precision Meets Reliability

• Solar Energy Tracking:
  • SE Series: Provides stable, cost-effective rotation for large-scale single-axis horizontal trackers (SAT).
  • PE Series: Delivers the arc-second precision required for dual-axis trackers and Concentrated PV (CPV) systems to maximize energy yield.
• Defense & Communication:
  • PE Series: Essential for radar antennas, satellite dishes, and EO/IR turrets that must maintain precise pointing accuracy under high wind loads and dynamic movement.
• Medical & Scientific Instrumentation:
  • PE Series: Powers CT scanners, radiotherapy tables, and telescope mounts where vibration-free, smooth, and highly repeatable motion is critical for patient safety and data accuracy.
• Industrial Automation & Robotics:
  • SE Series: Used in palletizing robots, conveyor turntables, and welding positioners for reliable, repetitive motion.
  • PE Series: Critical for collaborative robot (cobot) joints, high-speed pick-and-place units, and CNC indexing heads requiring micron-level accuracy.
• Aerospace & Ground Support:
• PE Series: Ensures stable positioning for aircraft maintenance platforms, antenna testing rigs, and simulation equipment.

Why Partner with Us? Your Trusted Source for Precision Drives

• Specialized Globoid Gear Expertise: Manufacturing double-enveloping worms requires specialized 5-axis CNC hobbing and grinding capabilities. Our factory is equipped with state-of-the-art machinery dedicated to this complex geometry, ensuring the perfect meshing and load distribution that defines high stability.
• Rigorous Stability Testing: Every SE and PE unit undergoes comprehensive testing, including backlash measurement under load, torsional stiffness verification, and endurance cycling in simulated environmental conditions. We provide full test reports and material certifications (MTRs).
• Custom Engineering Solutions: We don’t just sell catalog items. Our R&D team collaborates with your engineers to customize gear ratios, mounting interfaces, sealing solutions, and lubrication specifications to meet your specific stability and performance requirements.
• Global Quality Standards: Our production processes adhere to ISO 9001, CE, and other international standards. We offer full traceability for all critical components, giving you confidence in every unit we ship.
• Competitive Value without Compromise: By leveraging efficient manufacturing in China, we deliver European-level precision and stability at a highly competitive price point, helping you optimize your project’s ROI without sacrificing quality.

Technical Considerations for System Designers

• Mounting Rigidity: To fully realize the benefits of the drive’s high stiffness, ensure your mounting structure is equally rigid. Any flex in the support frame can negate the drive’s precision.
• Lubrication Strategy: While our units are pre-filled with high-performance synthetic lubricants, extreme temperature or high-frequency oscillating applications may benefit from specific viscosity grades. Consult our team for recommendations.
• Load Dynamics: Analyze your application’s shock load and vibration profiles. The PE Series is specifically recommended for applications with high dynamic loads or where vibration damping is critical.
• Thermal Management: For continuous high-duty cycles, consider models with enhanced cooling features or forced-air cooling options to maintain optimal operating temperatures.
