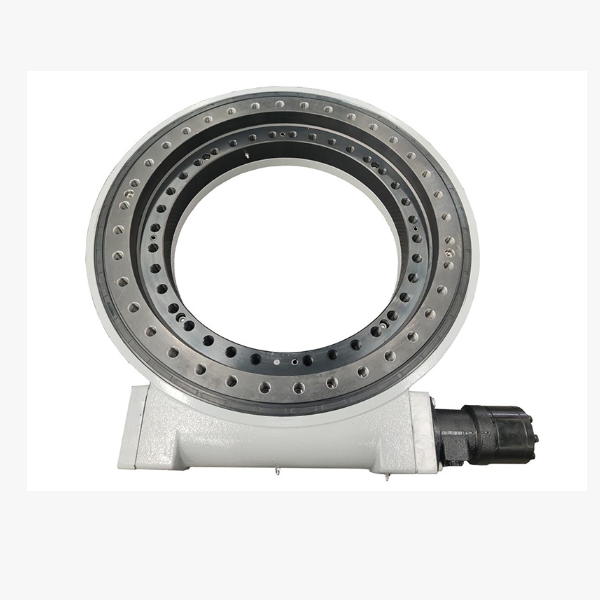

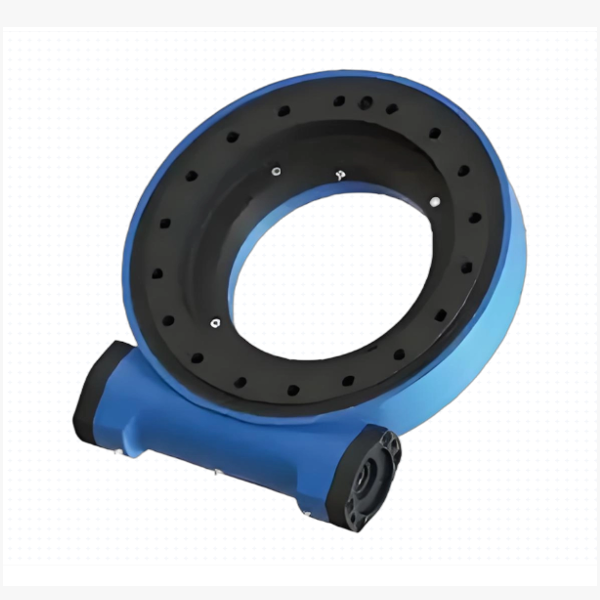

SE PE Series High-Quality And High-Performance Rotary Drives

SE PE Series High-Quality And High-Performance Rotary Drives
SE PE Series High-Quality And High-Performance Rotary DrivesSE PE Series High-Quality And High-Performance Rotary DrivesSE PE Series High-Quality And High-Performance Rotary Drives
    In the world of precision motion control, the difference between a standard component and a high-performance solution often determines the success of an entire project. Whether you are maximizing energy yield in a utility-scale solar farm or ensuring micron-level accuracy in a robotic welding cell, the rotary drive is the critical link. Generic drives often compromise on torque density, backlash control, or environmental resilience. Enter the SE & PE Series High-Quality and High-Performance Rotary Drives—a dual-tiered engineering solution designed to meet the exacting demands of modern industry.
Request a Quote
Custom slew bearing for Spain customerCustom slew bearing for Spain customer
Custom slew bearing for UnitedKingdom customerCustom slew bearing for UnitedKingdom customer
Slew bearing for Brazll customerSlew bearing for Brazll customer
Slewing bearings exported to RusslaSlewing bearings exported to Russla
Slewing bearings for UnitedStates customerSlewing bearings for UnitedStates customer
Slewing ring exported to Southeast AsiaSlewing ring exported to Southeast Asia
Slewing ring exported to Southwest AsiaSlewing ring exported to Southwest Asia
Slewing ring exported to North AmericaSlewing ring exported to North America
Slewing ring exported to South AmericaSlewing ring exported to South America
Slewing ring exported to South AfricaSlewing ring exported to South Africa
Slew bearing for India customerSlew bearing for India customer
Slew bearing for Latin America customerSlew bearing for Latin America customer
Slewing bearing for Türkiye customerSlewing bearing for Türkiye customer
Slewing bearing for Uzbekistan customerSlewing bearing for Uzbekistan customer
Slewing ring exported to South KoreaSlewing ring exported to South Korea
Slewing ring exported to MexicoSlewing ring exported to Mexico
Custom slew bearing for Mexico customerCustom slew bearing for Mexico customer
Custom slew bearing for Italy customerCustom slew bearing for Italy customer
Custom slew bearing for Vietnam customerCustom slew bearing for Vietnam customer
Slewing bearing for Europe customerSlewing bearing for Europe customer


Product Series Overview: Choosing the Right Drive for Your Mission

Understanding the nuance between the SE and PE series allows engineers to optimize both performance and budget.
  • SE Series (Standard Efficiency): The Workhorse of Industry
    Designed for applications requiring high durability and reliable performance without the need for extreme precision specs. The SE Series features hardened alloy steel gears, IP67 sealing, and a robust ductile iron housing. It is the go-to choice for standard solar trackers, agricultural machinery, and general industrial automation where uptime and cost-efficiency are paramount.
  • PE Series (Premium Efficiency): The Precision Powerhouse
    Engineered for the most critical applications. The PE Series utilizes ultra-precision grinding processes to achieve backlash levels as low as <0.1mm, enhanced thermal management, and specialized high-efficiency lubricants. With a refined globoid profile that maximizes contact area, the PE Series offers superior smoothness and stiffness, making it ideal for dual-axis solar trackers, high-end robotics, medical imaging equipment, and aerospace ground support.


Key Features: Engineering Excellence in Every Rotation

What makes the SE & PE Series rotary drives stand out in a crowded market? It’s the details that matter to engineers and procurement specialists:
  1. Double-Enveloping Gear Technology: Both series utilize our signature hourglass-shaped worm gear. This ensures multiple teeth engage simultaneously, providing exceptional shock load resistance and eliminating the "stick-slip" phenomenon common in single-contact gears.
  2. Self-Locking Safety Mechanism: The inherent friction angle of the worm gear design acts as a mechanical brake. In the event of power loss, the drive holds its position securely, preventing uncontrolled movement—a critical safety feature for vertical axes and outdoor installations.
  3. Superior Environmental Protection: Rated IP66/IP67/IP68 depending on configuration, these drives are sealed against dust, heavy rain, salt spray, and humidity. The PE Series optionally features specialized coatings for extreme corrosive environments (C5-M).
  4. High Torque Density in Compact Footprint: By optimizing the gear geometry, we deliver higher output torque in a smaller package compared to cylindrical worm drives. This allows for lighter support structures and reduced overall system weight.
  5. Long-Life Lubrication & Sealing: Pre-filled with high-performance synthetic grease/oil designed for wide temperature ranges (-40°C to +80°C), both series offer "sealed-for-life" maintenance intervals, drastically reducing total cost of ownership (TCO).


Applications: Powering Diverse Industries

The versatility of the SE and PE Series makes them suitable for a vast array of applications:
  • Solar Energy:
    • SE Series: Perfect for single-axis horizontal trackers (SAT) in utility-scale farms.
    • PE Series: Essential for dual-axis trackers and concentrated PV (CPV) systems requiring arc-second precision.
  • Industrial Automation & Robotics:
    • SE Series: Used in palletizers, conveyor turntables, and packaging machinery.
    • PE Series: Critical for robot joints, welding positioners, and CNC indexing tables where repeatability is key.
  • Medical & Scientific Equipment:
    • PE Series: Provides the smooth, vibration-free rotation needed for CT scanners, radiotherapy beds, and telescope mounts.
  • Heavy Machinery & Construction:
    • SE Series: Reliable rotation for small cranes, aerial work platforms, and mining equipment.
  • Satellite & Radar Communication:
    • PE Series: Ensures precise pointing accuracy for satellite dishes and radar antennas under wind loads.

Tag: High-Performance Slew Drive
