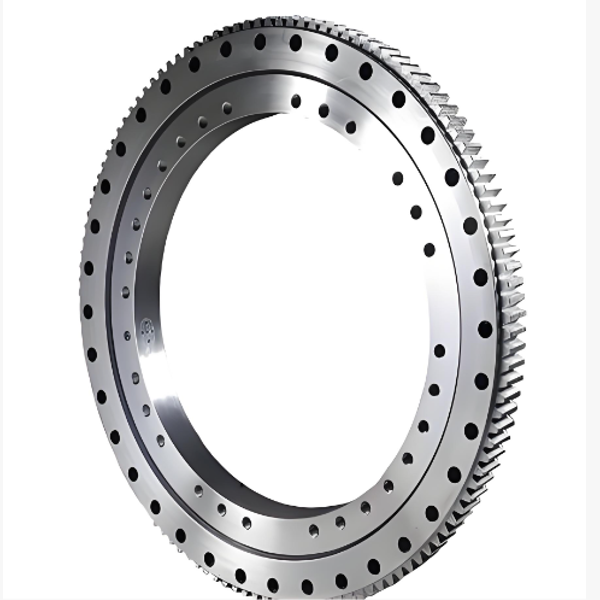

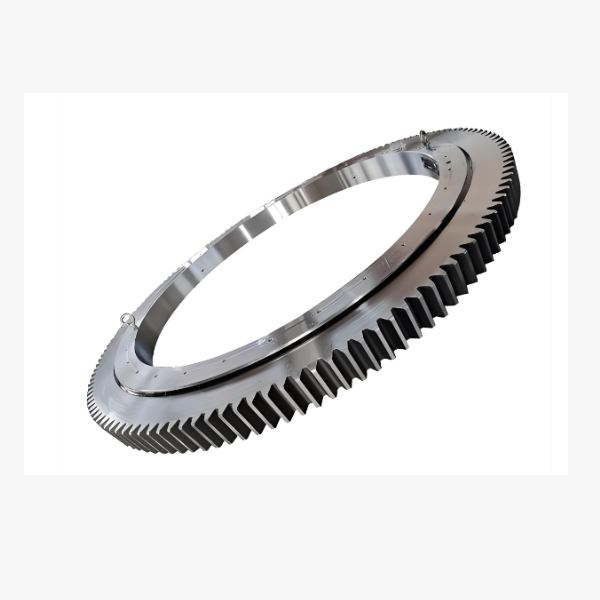

Product Deep Dive: Precision Engineering from Tooth to Raceway

• DIN Class 5/6 Ground Gears: Unlike cut or hobbed gears found in lower-cost alternatives, our external teeth are precision-ground after heat treatment. This achieves DIN Class 5 or better accuracy, ensuring smooth engagement with pinion gears and minimizing transmission error. This level of finish is essential for high precision external tooth bearing applications in optics and semiconductor handling.
• Crossed Roller Architecture: Inside, cylindrical rollers are arranged in a 90-degree "V" or "X" pattern. This provides line contact, offering significantly higher rigidity than ball bearings. Whether supporting a heavy robotic base rotation bearing or a wind-swept radar dish, this structure resists tilting moments and radial shocks effectively.
• Monolithic Rigidity: Because the gear is integral to the outer ring, there is no risk of the gear ring shifting or loosening over time—a common failure mode in bolted-on gear solutions. This creates a heavy duty rotary joint that maintains its calibration for years.
• Optimized Tooth Profile: We customize the pressure angle and module to match your specific drive motor requirements. Whether you need a fine module for high-resolution positioning or a robust module for heavy lifting, our China gear bearing manufacturer team can tailor the geometry.

Key Features: Performance You Can Trust

• Seamless Direct Drive Integration: Designed specifically for torque motor applications, our ground gear slew ring eliminates intermediate transmission components, reducing inertia and maintenance.
• Ultra-Low Backlash: Through precise preloading and high-quality gear grinding, we achieve near-zero backlash, critical for CNC indexing table component applications where repeatability is measured in arc-seconds.
• High Moment Load Capacity: The crossed roller design supports simultaneous axial, radial, and moment loads, making it ideal for cantilevered structures like radar antenna slew drive systems.
• Compact Footprint: Integrating the gear saves axial space compared to separate bearing and gear arrangements, allowing for more compact machine designs.
• Robust Material & Hardness: Both the raceways and gear teeth undergo induction hardening or through-hardening to ensure wear resistance and long service life under cyclic loading.

Applications: Powering Precision Rotation

• Industrial Robotics: Serving as the base joint (J1 axis) for 6-axis articulated robots and SCARA robots, providing the stability needed for high-speed pick-and-place operations.
• Defense & Aerospace: Used in stabilized gun turrets, satellite communication antennas, and electro-optical sensor gimbals where smooth, jitter-free rotation is vital.
• Semiconductor Manufacturing: Essential for wafer transfer robots and lithography stages requiring nanometer-level positioning accuracy.
• Medical Equipment: Found in CT scanner gantries and surgical robot arms, where quiet, smooth motion and absolute reliability are non-negotiable.
• Renewable Energy: Deployed in dual-axis solar trackers and small wind turbine yaw systems to maximize energy capture with minimal maintenance.

Tag: External Gear Crossed Roller Slewing Bearings
