Product Deep Dive: Anatomy of a Heavyweight
The core strength of the three-row roller slewing bearing lies in its separation of forces.
-
Axial Load Raceway: Typically equipped with cylindrical rollers arranged vertically, this row handles the immense vertical weight of the upper structure.
-
Radial Load Raceways: Two additional rows of cylindrical rollers, arranged horizontally and facing opposite directions, absorb radial forces and tilting moments.
This separation means that a shock load in one direction doesn't catastrophically affect the others. The result is a bearing with exceptional stiffness and minimal deformation, even when fully loaded.
Our manufacturing process leverages advanced CNC machining centers and induction hardening technologies. We use premium vacuum-degassed steel (such as 42CrMo4 or 50Mn) to ensure the raceways possess a deep hardening layer, resisting spalling and wear over tens of thousands of cycles. For the external or internal gear options, our gear hobbing machines cut teeth with precision microns, ensuring smooth meshing with your drive pinions and reducing noise and vibration during operation.
We understand that "high quality" isn't just a buzzword; it's about traceability and consistency. Every large diameter slewing bearing leaving our facility comes with a full material certificate, heat treatment logs, and a final inspection report detailing runout and gear backlash measurements.
Key Features: Why Specifiers Choose Our Triple Row Design
-
Maximum Load Capacity per Diameter: By utilizing three separate roller rows, we maximize the load-bearing surface area. This allows for a more compact design compared to cross-roller alternatives while supporting significantly higher weights.
-
Independent Load Handling: The structural separation of axial and radial loads ensures that complex, multi-directional forces (common in digging or lifting dynamics) are managed efficiently without premature fatigue.
-

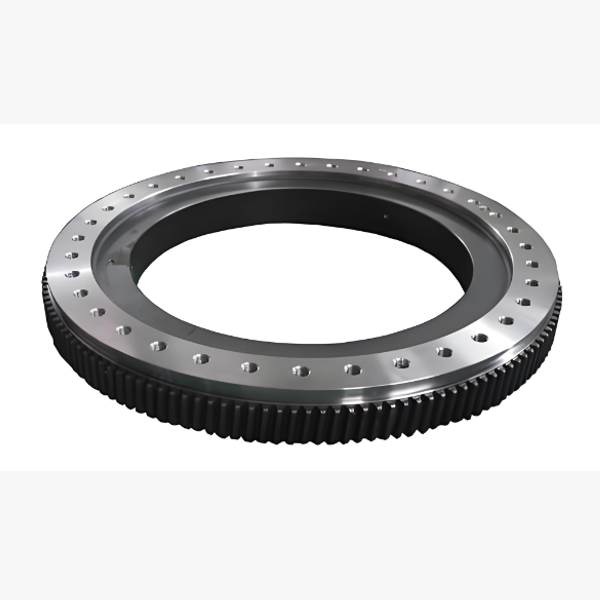

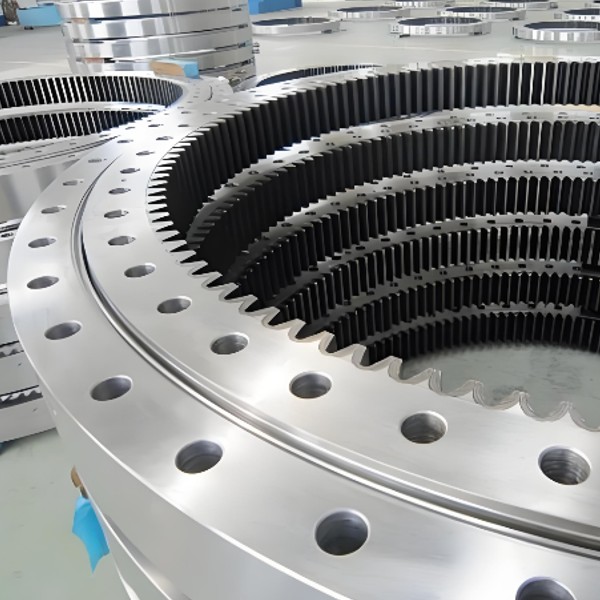

Customizable Gear Integration: Whether you need an external gear for easier maintenance access or an internal gear for protection against debris, we can machine gears to any module and pressure angle required by your drivetrain.
-
Robust Sealing Systems: Heavy industry is dirty. Our standard seals utilize multi-lip nitrile rubber designs, often reinforced with steel garters, to keep grease in and contaminants (dust, water, slurry) out. For submerged or highly abrasive environments, we offer labyrinth seal upgrades.
-
Direct Factory Flexibility: As a China slewing bearing factory, we eliminate the middleman. This means faster lead times for custom bolt patterns, non-standard diameters, and specific material grades. We work directly with your engineering team to adapt the bearing to your housing constraints.
Applications: Built for the Toughest Jobs
You will find our triple row roller slewing bearings at the heart of machinery where failure is not an option:
-
Hydraulic Excavators: From 20-ton mining shovels to massive 800-ton strip miners, the turntable bearing must withstand violent shock loads and constant oscillation. Our bearings provide the stability needed for precise bucket control.
-
Port & Shipyard Cranes: Container gantry cranes and ship-to-shore cranes rely on these bearings to rotate heavy loads smoothly over long shifts. The high stiffness prevents "bounce" during loading operations.
-
Wind Turbines: Used in the yaw systems of multi-megawatt turbines, these bearings must endure decades of variable wind loads and harsh weather conditions without maintenance intervention.
-
Mining & Drilling Rigs: Rotary drilling tables and stacker-reclaimers in open-pit mines operate in some of the most abrasive environments on earth. Our hardened raceways stand up to the dust and vibration.
-
Heavy Transport Vehicles: Self-propelled modular transporters (SPMTs) used for moving bridges and oil rigs utilize these bearings to steer and rotate massive payloads with precision.
