    In the world of heavy equipment, design often comes down to a trade-off between protection and accessibility. While internal gears offer shielding, there is a compelling reason why the External Gear Three-Row Roller Slewing Bearing remains the industry standard for everything from hydraulic excavators to massive crawler cranes: serviceability and torque efficiency.
Request a Quote
Custom slew bearing for Spain customerCustom slew bearing for Spain customer
Custom slew bearing for UnitedKingdom customerCustom slew bearing for UnitedKingdom customer
Slew bearing for Brazll customerSlew bearing for Brazll customer
Slewing bearings exported to RusslaSlewing bearings exported to Russla
Slewing bearings for UnitedStates customerSlewing bearings for UnitedStates customer
Slewing ring exported to Southeast AsiaSlewing ring exported to Southeast Asia
Slewing ring exported to Southwest AsiaSlewing ring exported to Southwest Asia
Slewing ring exported to North AmericaSlewing ring exported to North America
Slewing ring exported to South AmericaSlewing ring exported to South America
Slewing ring exported to South AfricaSlewing ring exported to South Africa
Slew bearing for India customerSlew bearing for India customer
Slew bearing for Latin America customerSlew bearing for Latin America customer
Slewing bearing for Türkiye customerSlewing bearing for Türkiye customer
Slewing bearing for Uzbekistan customerSlewing bearing for Uzbekistan customer
Slewing ring exported to South KoreaSlewing ring exported to South Korea
Slewing ring exported to MexicoSlewing ring exported to Mexico
Custom slew bearing for Mexico customerCustom slew bearing for Mexico customer
Custom slew bearing for Italy customerCustom slew bearing for Italy customer
Custom slew bearing for Vietnam customerCustom slew bearing for Vietnam customer
Slewing bearing for Europe customerSlewing bearing for Europe customer


Product Deep Dive: The Mechanics of Outer Drive Efficiency

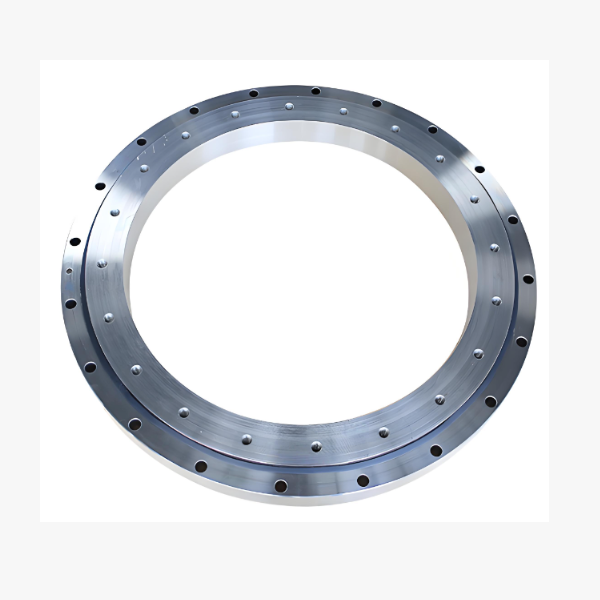

The three-row roller design is already the gold standard for load capacity, utilizing separate raceways for axial, radial, and moment loads. When combined with an external gear, this architecture becomes even more potent.

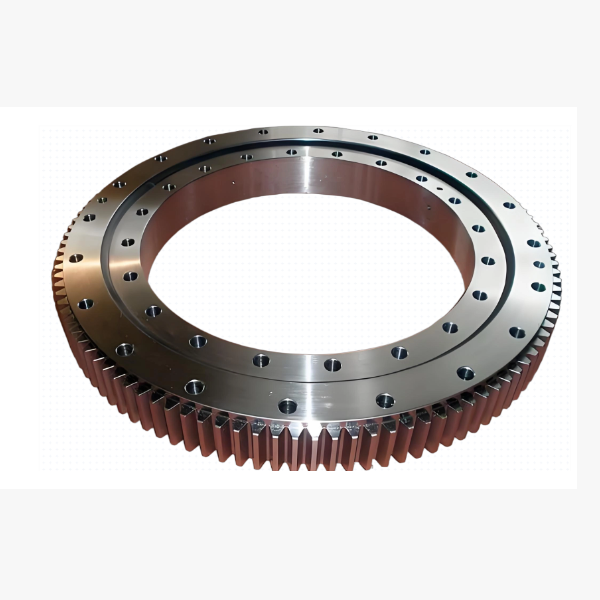

  • Structural Integrity: The gear teeth are machined directly onto the outer diameter of the outer ring. We use high-strength alloy steels (typically 42CrMo4 or 50Mn) and employ induction hardening processes that create a deep, durable case on the gear teeth while maintaining a tough, shock-absorbing core.
  • Torque Optimization: By placing the gear on the exterior, we maximize the lever arm for the drive pinion. This mechanical advantage means your hydraulic motors or electric drives can generate the same rotational force with lower input pressure or current, improving overall machine efficiency.
  • Precision Gear Cutting: Our facility utilizes state-of-the-art CNC gear hobbing machines capable of handling diameters up to several meters. We ensure tooth profile accuracy (DIN/ISO standards), minimizing backlash and noise. Whether you need a standard module or a custom pressure angle, our customizable gear module capabilities ensure a perfect fit for your specific drivetrain.

Unlike generic suppliers who might outsource gear cutting, we control the entire process in-house. This vertical integration guarantees that the hardness depth of the gear teeth matches the raceway specifications, preventing premature failure due to mismatched wear rates.


Key Features: Engineered for Durability and Ease

  • Unmatched Maintenance Access: The primary advantage of the external gear design is visibility. Operators can easily visually inspect teeth for pitting or cracking and apply grease directly to the mesh point, extending the service life significantly.
  • High Torque Density: The large effective diameter of the external gear allows for maximum torque transmission, making it ideal for applications requiring rapid slewing speeds or heavy starting loads.
  • Robust Tooth Hardening: We apply precise induction hardening to the gear teeth, achieving surface hardness levels of 50-55 HRC. This resistance to abrasion and pitting is essential for heavy-duty excavator swing bearings operating in rocky environments.
  • Flexible Mounting Options: Our large diameter external gear bearings can be designed with various bolt hole patterns and spigot diameters to match existing housing designs, facilitating easy retrofits or new OEM integrations.
  • Advanced Sealing: Despite the exposed gear, our sealing systems (multi-lip nitrile or Viton) are engineered to protect the internal raceways from contaminants entering from the sides, ensuring the rollers remain lubricated and clean.


Applications: The Backbone of Rotation

You will find our external gear three-row roller slewing bearings powering the most demanding machinery across the globe:
  • Hydraulic Excavators (Mid to Large Size): From 20-ton construction excavators to 100-ton mining shovels, the external gear allows the swing motor to be mounted compactly on the upper carbody, driving the robust lower frame.
  • Crawler & Mobile Cranes: Lattice boom crawlers and all-terrain cranes rely on the high torque capacity of external gears to rotate heavy loads smoothly and precisely during lifting operations.
  • Mining Drilling Rigs: Rotary drill tables require immense torque to penetrate bedrock. Our crane slew drive gear technology adapts perfectly to these high-tension drilling applications.
  • Concrete Pump Trucks: The rotating turret of long-boom pump trucks utilizes external gears for reliable positioning of the delivery arm, even under the vibration of pumping concrete.
  • Material Handling Stackers: In port terminals and stockyards, stacker-reclaimers use these bearings to rotate long booms for efficient loading and unloading of bulk materials like coal and ore.
