Product Deep Dive: Engineering Protection into Performance

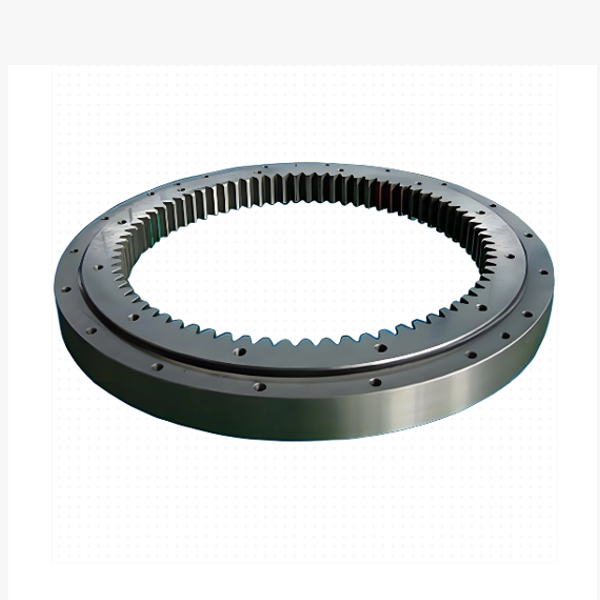

The core of our internal gear three-row roller bearing lies in its unique integration of gear geometry and load-bearing structure.
-
The Three-Row Architecture: Just like its external counterpart, it features three independent raceways. One vertical row of cylindrical rollers handles massive axial loads (the weight of the structure), while two horizontal rows absorb radial forces and tilting moments. This separation ensures maximum rigidity and minimal deformation.
-
The Internal Gear Advantage: The gear teeth are precision-cut on the inner diameter of the outer ring (or sometimes the inner ring, depending on configuration). This places the drive pinion inside the bearing assembly. The result? The gear mesh is naturally shielded by the bearing structure itself, drastically reducing the risk of contamination from slurry, metal chips, or environmental grit.
Our manufacturing process utilizes advanced CNC gear hobbing and shaping machines capable of cutting large-module internal gears with micron-level accuracy. We use premium vacuum-degassed steel (42CrMo4/50Mn) and apply induction hardening specifically tailored to the internal gear profile, ensuring the teeth resist pitting and wear even under high-torque reversals.
For engineers specifying a protected gear drive bearing, this means less downtime for cleaning, reduced lubrication consumption, and a significantly longer service life in abrasive environments.
Key Features: Why Choose Internal Gearing?
-
Superior Contaminant Protection: By locating the gear teeth internally, the bearing housing acts as a natural barrier against falling debris, water spray, and dust. This is critical for tunnel boring machines and mining equipment operating in dirty conditions.
-
Compact Radial Design: Internal gearing allows the drive motor and pinion to be mounted closer to the center of rotation. This reduces the overall radial dimension of the slewing unit, enabling tighter machine layouts and lower center-of-gravity profiles.
-
High Torque Transmission: The large pitch diameter of the internal gear allows for higher torque transmission with smaller pinion forces, reducing stress on the drive motor and gearbox.
-
Customizable Gear Modules: We specialize in custom internal gear cutting. Whether you need a specific module, pressure angle, or profile shift to match your existing pinion, our engineering team can produce gears that mesh perfectly, minimizing backlash and noise.
-
Robust Sealing Integration: Our internal gear designs are paired with multi-lip labyrinth seals that further protect the gear zone and raceways, ensuring grease retention and contaminant exclusion in the harshest industrial settings.
Applications: Where Space and Protection Matter Most
Our internally toothed three-row roller slewing bearings are the preferred choice for applications where external gears are impractical or vulnerable:
-
Tunnel Boring Machines (TBMs): In the confined, muddy, and rocky environment of a tunnel, external gears would be quickly destroyed. Our internal gear bearings protect the drive system while supporting the immense thrust and torque of the cutterhead.
-
Large Wind Turbines: For multi-megawatt turbines, the yaw drive often utilizes internal gearing to keep the mechanism compact and protected from weather exposure at the top of the tower.
-
Heavy-Duty Port & Shipyard Cranes: Large gantry cranes and floating cranes use internal gears to prevent damage from falling cargo straps, tools, or marine salt spray.
-
Mining Shovels & Draglines: In open-pit mining, where falling rock is a constant threat, internal gearing safeguards the rotation drive from impact damage.
-
Military & Defense Turrets: Armored vehicles and naval gun systems rely on internal gear slewing rings to maintain a low profile and protect critical drive components from battlefield debris and small arms fire.
