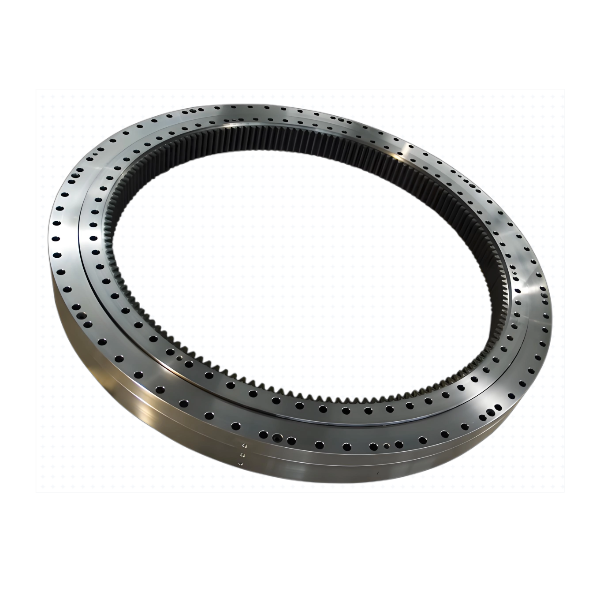

Product Overview: Engineering Smoothness into Strength

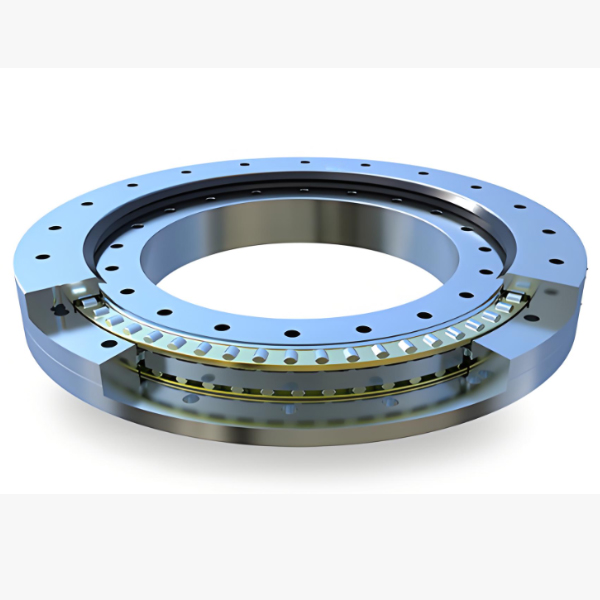

The three-row roller design is inherently stiff, but achieving high precision requires going several steps further. Our high-precision three-row roller slewing bearing series features:
-
Ground Raceways: Instead of standard hard-turning, our axial and radial raceways undergo a precision grinding process. This reduces surface roughness to Ra < 0.4μm, drastically lowering friction and ensuring consistent rolling element movement.
-
Controlled Preload: We apply precise internal preload settings to eliminate internal clearance. This results in a zero-clearance slewing drive effect, providing infinite stiffness and preventing any axial or radial shift under varying load directions.
-
Ultra-Low Runout: Through rigorous machining and assembly protocols, we achieve exceptional concentricity and flatness. This minimizes wobble (runout), which is critical for applications like optical tracking systems where image stability is paramount.
-
Precision Gear Cutting: Whether internal or external, our gears are finished to DIN Class 6 or better. This ensures minimal backlash between the pinion and the slew ring, allowing for precise angular positioning without the "dead zone" typical of standard industrial gears.
This fusion of massive load capacity (from the three rows of rollers) and micron-level accuracy makes our bearings the ideal choice for applications that demand both power and finesse.
Key Features: The Difference is in the Details
-
Exceptional Stiffness & Stability: The combination of three independent roller rows and controlled preload creates a high-stiffness rotation solution that resists deformation even under complex combined loads, ensuring the payload remains perfectly stable.
-
Silky Smooth Motion: The ground raceways and high-precision rollers eliminate the "stick-slip" phenomenon, enabling smooth start-stop cycles and consistent low-speed rotation essential for surveillance and scanning applications.
-
Minimal Backlash Options: We offer customized backlash ranges (e.g., < 0.05mm) tailored to your servo motor requirements, ensuring tight loop control for robotic joint bearing applications.
-
Thermal Stability: Our heat treatment processes are calibrated to minimize dimensional changes due to thermal expansion, maintaining accuracy across a wide operating temperature range.
-
Integrated Encoder Compatibility: Many of our high-precision slew rings are designed with mounting interfaces for absolute encoders, facilitating closed-loop feedback systems for real-time position verification.
Applications: Where Precision is Non-Negotiable
Our high-precision three-row roller slewing bearings are deployed in some of the most technically demanding environments:
-
Defense & Aerospace Radar: Phased array antennas and fire control systems require pinpoint accuracy to track fast-moving targets. Our bearings provide the stable platform needed for reliable signal acquisition.
-
Medical Imaging Equipment: In CT scanners and proton therapy gantries, the rotating frame must move smoothly and precisely to ensure image clarity and patient safety. Any vibration or runout compromises diagnostic quality.
-
Industrial Robotics & Automation: High-payload robotic arms and welding positioners rely on low backlash slew rings to repeat complex paths with sub-millimeter accuracy, improving production quality and cycle times.
-
Optical & Satellite Tracking: Telescopes and satellite communication dishes need to maintain lock on distant objects despite wind loads. Our radar antenna positioner bearings offer the necessary rigidity and smoothness.
-
Semiconductor Manufacturing: Wafer handling robots and lithography equipment utilize these bearings for their clean-room compatibility and extreme positional repeatability.
