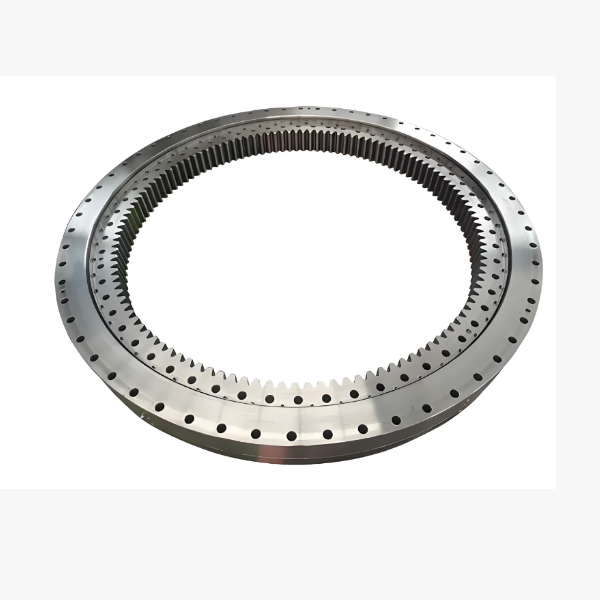

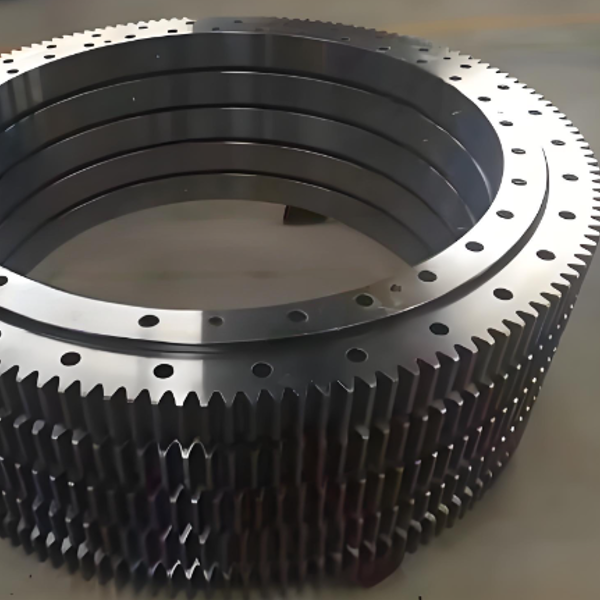

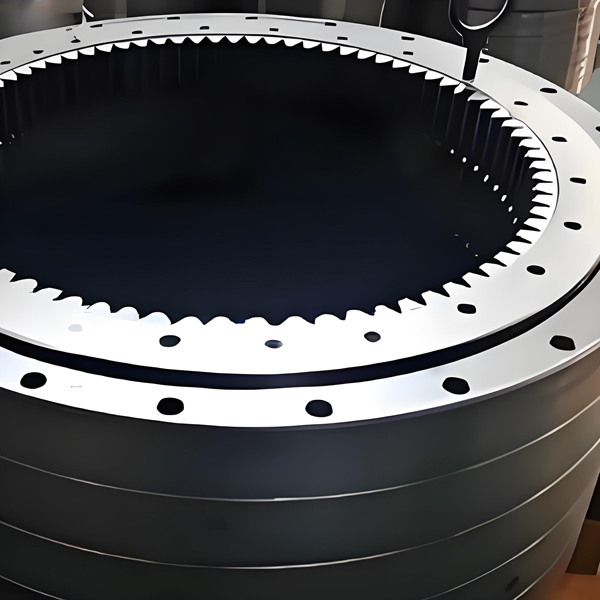

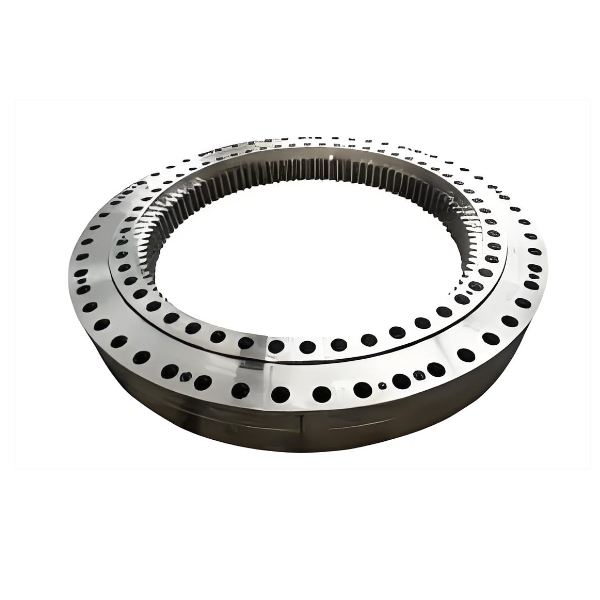

Three Row Roller Slewing Bearing For Marine Crane

Three Row Roller Slewing Bearing For Marine Crane
Three Row Roller Slewing Bearing For Marine CraneThree Row Roller Slewing Bearing For Marine CraneThree Row Roller Slewing Bearing For Marine CraneThree Row Roller Slewing Bearing For Marine CraneThree Row Roller Slewing Bearing For Marine Crane
    Designing for land-based construction is one challenge; engineering for the open ocean is an entirely different battle. On a floating vessel or an offshore platform, a three-row roller slewing bearing for marine crane faces a relentless assault: constant salt spray, high humidity, dynamic wave-induced shock loads, and the critical need for zero downtime. A standard industrial bearing, even a heavy-duty one, will often succumb to rapid corrosion or seal failure within months in this environment.
Request a Quote
Custom slew bearing for Spain customerCustom slew bearing for Spain customer
Custom slew bearing for UnitedKingdom customerCustom slew bearing for UnitedKingdom customer
Slew bearing for Brazll customerSlew bearing for Brazll customer
Slewing bearings exported to RusslaSlewing bearings exported to Russla
Slewing bearings for UnitedStates customerSlewing bearings for UnitedStates customer
Slewing ring exported to Southeast AsiaSlewing ring exported to Southeast Asia
Slewing ring exported to Southwest AsiaSlewing ring exported to Southwest Asia
Slewing ring exported to North AmericaSlewing ring exported to North America
Slewing ring exported to South AmericaSlewing ring exported to South America
Slewing ring exported to South AfricaSlewing ring exported to South Africa
Slew bearing for India customerSlew bearing for India customer
Slew bearing for Latin America customerSlew bearing for Latin America customer
Slewing bearing for Türkiye customerSlewing bearing for Türkiye customer
Slewing bearing for Uzbekistan customerSlewing bearing for Uzbekistan customer
Slewing ring exported to South KoreaSlewing ring exported to South Korea
Slewing ring exported to MexicoSlewing ring exported to Mexico
Custom slew bearing for Mexico customerCustom slew bearing for Mexico customer
Custom slew bearing for Italy customerCustom slew bearing for Italy customer
Custom slew bearing for Vietnam customerCustom slew bearing for Vietnam customer
Slewing bearing for Europe customerSlewing bearing for Europe customer


Product Deep Dive: Metallurgy and Sealing for the Salt Spray Zone

The core of our three-row roller slewing bearing for marine crane lies in its dual defense strategy: structural integrity against dynamic loads and impenetrable protection against corrosion.
  • Advanced Corrosion Protection: We go beyond simple painting. Our bearings feature multi-layer protection systems. The raceways and rolling elements are made from vacuum-degassed alloy steel with optimized microstructures to resist stress corrosion cracking. Externally, we apply specialized C5-M coating systems (epoxy zinc-rich primers followed by high-build polyurethane topcoats) that provide a barrier against salt fog for over 15 years. For critical components, we also offer zinc-nickel plating on fasteners and gear teeth.
  • The Three-Row Advantage at Sea: Marine cranes experience complex, shifting load vectors due to vessel motion (heave, pitch, roll). The three-row design separates these loads: one row handles the massive axial weight of the boom and payload, while two horizontal rows manage the radial forces and tilting moments caused by wave action. This separation ensures stability even when the crane is swinging a load during a storm.
  • Marine-Grade Sealing: The weakest link in any marine bearing is the seal. Our saltwater proof rotary bearing designs utilize multi-lip labyrinth seals made from high-grade fluorocarbon (Viton/FKM) or HNBR compounds. These seals are resistant to UV degradation, ozone, and salt crystallization, effectively locking in grease and keeping seawater out. Some models include grease purge ports to actively flush out contaminants.

Every unit undergoes rigorous salt spray testing (ASTM B117) and dynamic load simulation to verify performance before it leaves our DNV certified slewing bearing production line.


Key Features: Built for the Brutal Marine Environment

  • Extreme Corrosion Resistance: Certified for ISO 12944 C5-M (Very High) and Cx (Extreme) environments. Our corrosion-resistant slewing drive systems prevent rust propagation even in the splash zone.
  • Dynamic Load Capacity: Engineered to handle not just static weights but the shock loads and vibration inherent in floating crane turntable operations. The roller arrangement minimizes deformation under erratic loading.
  • Customizable Gear Protection: Whether internal or external geared, our gear teeth receive specific hardening and coating treatments to prevent pitting from salt-induced corrosion, ensuring smooth engagement with the hydraulic motor pinion over thousands of cycles.
  • Low-Temperature Toughness: For operations in Arctic waters or LNG carriers, we offer steel grades and lubricants rated for temperatures as low as -40°C or lower, preventing brittle fracture.
  • Traceability & Certification: We provide full material traceability and can supply bearings with classification society approvals (DNV, ABS, LR, BV) upon request, ensuring compliance with international maritime regulations.


Applications: Powering Offshore Logistics and Construction

Our three-row roller slewing bearing for marine crane is the backbone of rotation for a wide array of maritime vessels:
  • Offshore Wind Installation Vessels: These cranes lift massive turbine components in rough seas. Our bearings provide the precision and stability needed for delicate mating operations.
  • Floating Sheerlegs & Derrick Barges: Used for heavy lifting in harbor construction and salvage operations, requiring immense moment load capacity and corrosion resistance.
  • Naval & Coast Guard Supply Ships: Deck cranes that operate 24/7 in all weather conditions rely on our heavy-duty marine bearing durability for replenishment at sea (RAS).
  • Oil & Gas Platform Cranes: Fixed and floating platforms use our bearings for moving drilling equipment and supplies, where safety and reliability are non-negotiable.
  • Subsea Construction ROV Launch Systems: Specialized handling frames for Remotely Operated Vehicles require smooth, controlled rotation that our precision bearings deliver.
