Product Overview

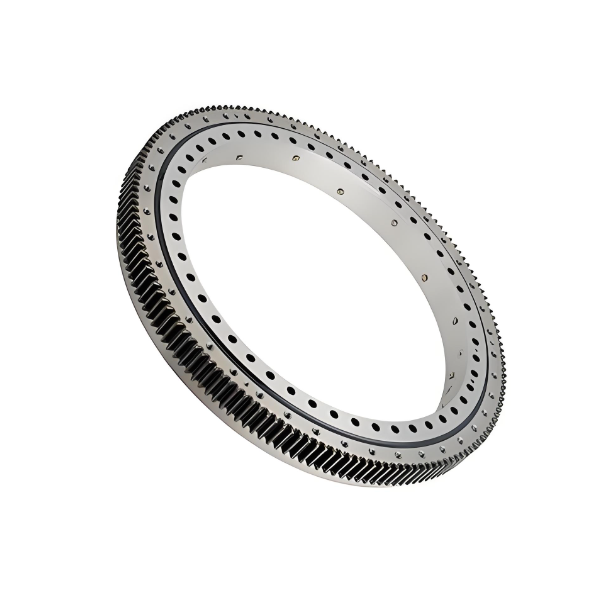

The transition to renewable energy demands components that can withstand decades of relentless operation in some of the planet’s most unforgiving environments. At the heart of every modern wind turbine—whether towering over an onshore plain or bracing against Atlantic gales offshore—lies a critical rotational interface: the Single-Row Four-Point Contact Ball Slewing Support.
As a specialized Chinese manufacturer for the wind energy sector, we recognize that a failure in the yaw or pitch system doesn’t just mean downtime; it means lost revenue and compromised grid stability. Our engineered series of single-row four-point contact bearings is specifically designed to handle the massive overturning moments generated by wind loads while maintaining the precise angular positioning required for maximum energy capture. We combine metallurgical expertise with rigorous quality standards to deliver wind turbine slewing bearings that offer a service life exceeding 20 years.
Wind turbines operate under dynamic, fluctuating loads that change direction constantly. The single-row four-point contact ball design is the industry preference for both yaw (nacelle rotation) and pitch (blade angle adjustment) systems due to its unique ability to support:
-
High Axial Loads: From the weight of the nacelle and rotor assembly.
-
Radial Loads: Induced by wind pressure and gravitational forces on tilted blades.
-
Overturning Moments: The primary stressor caused by wind pushing against the rotor swept area.
By utilizing a single row of balls contacting the raceway at four points, we achieve a compact, lightweight solution that simplifies the hub and nacelle design without sacrificing load capacity. This efficiency is crucial as turbine sizes grow, pushing the limits of structural weight and tower height.
Key Features: Built for 20+ Years of Service
Operating a wind farm is a long-term investment. Our slewing supports for wind turbines are engineered with features that ensure longevity and reliability:
-
Advanced Corrosion Protection: For offshore applications, salt spray is a constant threat. We apply multi-layer coating systems (C5-M classification) and utilize stainless steel fasteners. Our raceways often feature specialized black oxide or zinc-nickel plating to prevent micro-pitting and rust, ensuring integrity in marine environments.
-
Optimized Hardening Profiles: We use precise induction hardening to create a deep, wear-resistant case on the raceways while maintaining a tough, ductile core. This dual-property structure absorbs the shock loads from gusty winds and grid synchronization events without cracking.
-

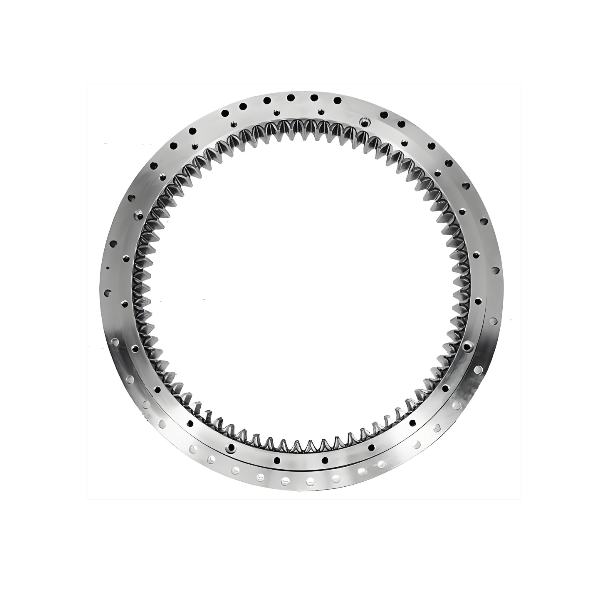

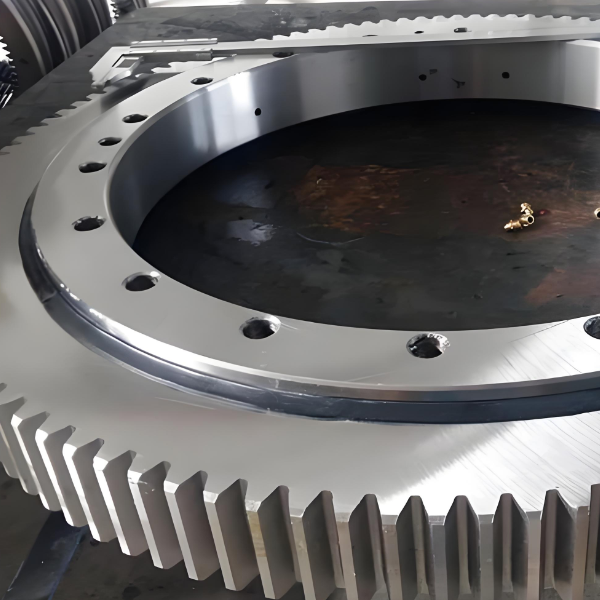

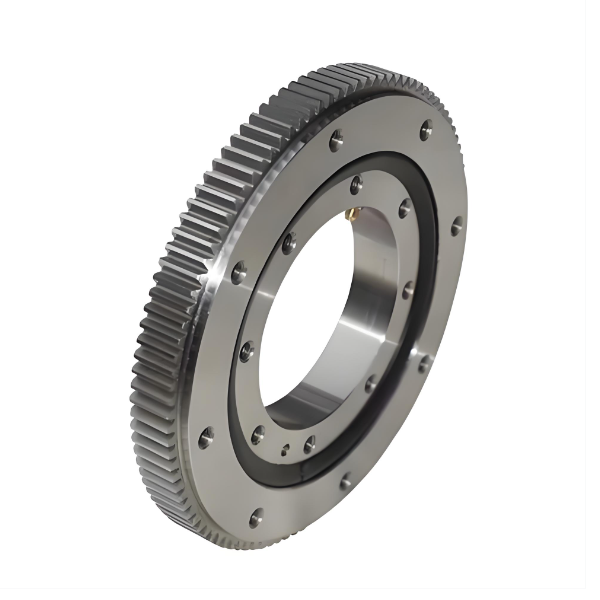

Integrated Gear Precision: Whether for yaw drives or pitch mechanisms, our bearings come with precision-machined external or internal gears. We adhere to strict DIN/ISO gear quality standards (typically Class 8 or better) to ensure smooth, low-noise operation and perfect meshing with drive pinions, minimizing vibration-induced fatigue.
-
Specialized Sealing for Extreme Weather: Our sealing systems are designed to keep out moisture, dust, and ice while retaining lubrication in temperatures ranging from -40°C to +50°C. We offer labyrinth seals with reinforced lip materials that resist UV degradation and freezing.
-
Condition Monitoring Compatibility: Modern turbines require predictive maintenance. Our bearings can be equipped with sensor ports and channels for temperature and vibration monitoring, allowing operators to detect early signs of wear before catastrophic failure occurs.
Applications: Powering the Green Revolution
Our single-row four-point contact ball slewing rings are deployed globally in diverse wind energy projects:
-
Onshore Wind Farms: Supporting yaw systems in turbines ranging from 2 MW to 6 MW, handling variable wind directions and turbulent terrain effects.
-
Offshore Wind Installations: Critical for both yaw and pitch systems in harsh marine environments where maintenance access is limited and reliability is paramount. Our corrosion-resistant slewing rings are tested to withstand high salinity and humidity.
-
Direct-Drive Turbines: Providing robust support for large-diameter rotors in direct-drive configurations where the bearing must handle immense torque without a gearbox.
-
Floating Wind Platforms: Designed to accommodate the additional dynamic loads and motions induced by wave action on floating substructures.
-
Small & Distributed Wind Systems: Scalable solutions for community wind projects and industrial onsite generation, offering cost-effective reliability.
Tag: Single Row Four Point Contact Ball Slewings
