Vu Series Slewing Bearings

Vu Series Slewing Bearings
Vu Series Slewing BearingsVu Series Slewing BearingsVu Series Slewing Bearings
    In the world of heavy machinery and precision automation, space is often at a premium, yet the demand for robust rotational support never wavers. Engineers and procurement specialists frequently face the challenge of finding a bearing that balances a slim profile with the ability to handle complex load combinations. This is exactly where our VU Series Slewing Bearings step in.
Request a Quote
Custom slew bearing for Spain customerCustom slew bearing for Spain customer
Custom slew bearing for UnitedKingdom customerCustom slew bearing for UnitedKingdom customer
Slew bearing for Brazll customerSlew bearing for Brazll customer
Slewing bearings exported to RusslaSlewing bearings exported to Russla
Slewing bearings for UnitedStates customerSlewing bearings for UnitedStates customer
Slewing ring exported to Southeast AsiaSlewing ring exported to Southeast Asia
Slewing ring exported to Southwest AsiaSlewing ring exported to Southwest Asia
Slewing ring exported to North AmericaSlewing ring exported to North America
Slewing ring exported to South AmericaSlewing ring exported to South America
Slewing ring exported to South AfricaSlewing ring exported to South Africa
Slew bearing for India customerSlew bearing for India customer
Slew bearing for Latin America customerSlew bearing for Latin America customer
Slewing bearing for Türkiye customerSlewing bearing for Türkiye customer
Slewing bearing for Uzbekistan customerSlewing bearing for Uzbekistan customer
Slewing ring exported to South KoreaSlewing ring exported to South Korea
Slewing ring exported to MexicoSlewing ring exported to Mexico
Custom slew bearing for Mexico customerCustom slew bearing for Mexico customer
Custom slew bearing for Italy customerCustom slew bearing for Italy customer
Custom slew bearing for Vietnam customerCustom slew bearing for Vietnam customer
Slewing bearing for Europe customerSlewing bearing for Europe customer


What Defines the VU Series?

The VU series is characterized by its single-row four-point contact ball structure. Unlike standard radial bearings, the VU design allows a single row of balls to carry axial loads in both directions, as well as radial loads and tilting moments simultaneously.
Key structural advantages include:
  • Compact Axial Height: The single-row design significantly reduces the overall height of the assembly, making it ideal for tight installations.
  • Four-Point Contact Geometry: Each ball contacts the raceway at four distinct points, ensuring stable load distribution even under dynamic conditions.

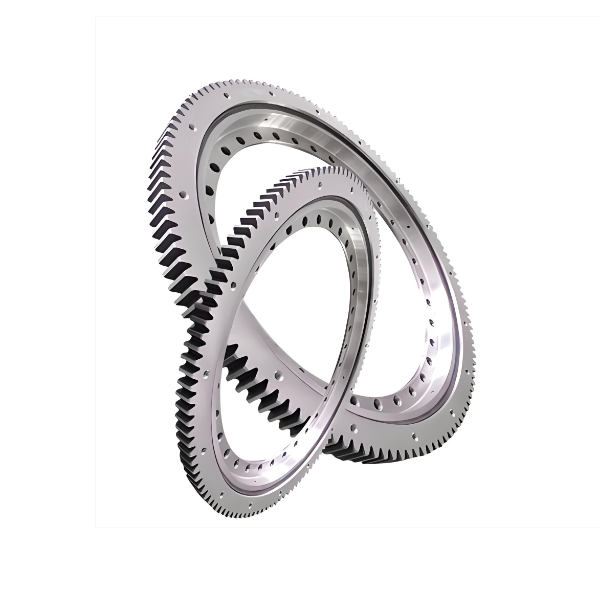

  • Integrated Gear Options: Many models in the VU lineup come with external gear teeth cut directly into the outer ring, simplifying drive integration for rotary tables and positioning systems.
  • Separable Rings: The inner and outer rings are often designed with offset filling slots, allowing for higher ball complement and easier installation without the need for a full split ring.

Critical Features for Engineering Reliability

When sourcing slewing bearings from China, quality consistency is the primary concern for international buyers. Our VU series production adheres to rigorous metallurgical and machining standards:
  1. High-Purity Steel & Induction Hardening: We utilize premium alloy steel (typically 50Mn or 42CrMo) with precise induction hardening on the raceways. This ensures a hardness depth that resists spalling and wear, extending service life in abrasive environments.
  2. Precision Ground Raceways: Post-hardening grinding guarantees smooth rotation and low starting torque, critical for servo-driven applications like robotic arms and antenna positioning systems.
  3. Advanced Sealing Solutions: Standard rubber seals (NBR) protect against dust and moisture, while optional labyrinth seals or felt strips can be configured for extreme conditions found in construction or mining sites.
  4. Customizable Mounting: Threaded mounting holes are precision-drilled to match ISO standards or customer-specific drawings, ensuring direct interchangeability with existing designs.

Tag: Single Row Ball Slewing Bearing | Single Row Four Point Contact Ball Slewing Support
