Clarifier Turntable Bearing: High-Load Rotational Solutions for Water Treatment
At ZZ, we understand that the efficiency of water and wastewater treatment relies heavily on the reliability of every mechanical component. As a premier manufacturer of回转 bearings (slewing bearings), we specialize in engineering robust Clarifier Turntable Bearings designed to withstand harsh environmental conditions while ensuring smooth, continuous rotation for scraper bridges and drive mechanisms.
Product Overview

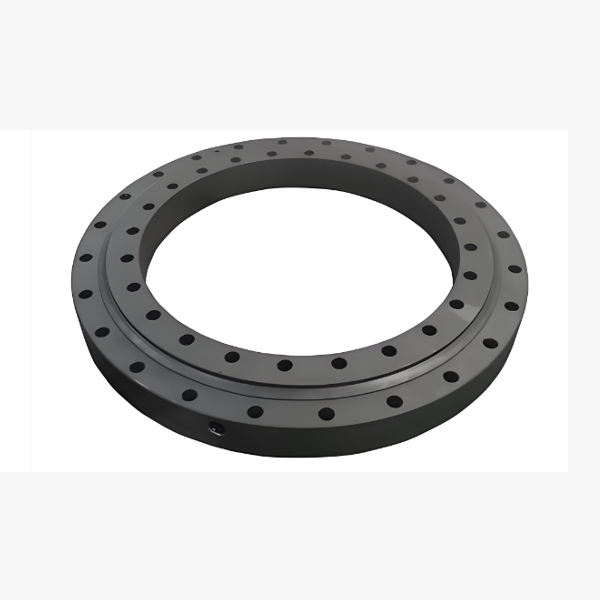

A clarifier turntable bearing, often referred to as a clarifier slew bearing or thickener bearing, is the core component of the central drive unit in sedimentation tanks. It supports the rotating scraper arm, allowing it to collect settled solids (sludge) from the bottom of the tank.
Unlike standard bearings, ZZ's clarifier bearings are engineered to handle combined loads—simultaneously supporting heavy axial loads from the bridge weight, radial loads from wind or uneven sludge distribution, and tilting moments. Our designs prioritize corrosion resistance and sealing integrity, which are critical in the wet and chemically aggressive environments of water treatment plants.
Performance and Quality Highlights
We manufacture our clarifier bearings with a focus on longevity and minimal maintenance. Here is why ZZ bearings are the preferred choice for OEMs and plant operators:
-
Superior Corrosion Resistance: Recognizing the high humidity and potential chemical exposure in clarifier tanks, we offer specialized surface treatments. Options include zinc plating, nickel plating, or full stainless steel construction (e.g., 304/316 grades) to prevent rust and pitting.
-
Advanced Sealing Technology: Contamination is the primary cause of bearing failure. Our multi-lip rubber seals (often H-shaped or labyrinth designs) effectively block water, sludge, and grit from entering the raceways, ensuring the longevity of the rolling elements.
-
Integrated Gear Options: For driven clarifiers, we machine high-precision external gear teeth directly onto the outer ring. These are hardened and ground to ensure smooth meshing with the drive pinion, reducing noise and wear during operation.
-
Self-Aligning Capability: Our spherical roller or four-point contact ball designs can accommodate slight misalignments caused by shaft deflection or installation tolerances, preventing premature stress.
-
Low Friction & Maintenance-Free: Pre-lubricated with high-quality grease and designed for low starting torque, our bearings ensure energy-efficient operation.
Technical Specifications
ZZ offers a wide range of standard and custom dimensions. Below are the typical parameters for our clarifier series.
|
Parameter
|
Specification Details
|
|
Bearing Type
|
Four-Point Contact Ball / Crossed Roller / Spherical Roller
|
|
Bore Diameter
|
100 mm – 1,500 mm (Customizable)
|
|
Material
|
42CrMo, 50Mn, 45# Steel, or Stainless Steel (AISI 304/316)
|
|
Gear Type
|
External Gear (Hardened), Internal Gear, or No Gear
|
|
Sealing
|
Heavy-duty Rubber Seals / Labyrinth Seals
|
|
Surface Treatment
|
Zinc Plated, Nickel Plated, Phosphating, or Painted
|
|
Lubrication
|
Pre-lubricated (Lithium-based grease) with re-lubrication nipples
|
|
Accuracy Class
|
P0, P6, P5 (DIN/ISO Standards)
|
Certifications and Standards
Quality is not just a promise; it is a documented process at ZZ. Our manufacturing facilities and products comply with rigorous international standards to ensure safety and performance.
-
ISO 9001:2015: Certified Quality Management System.
-
DIN / ISO Standards: Manufactured in accordance with DIN 69123 or ISO 19972 for slewing bearings.
-
SGS & TUV Inspection: Third-party testing available for material composition and hardness.
-
Traceability: Full material certificates (MTC 3.1) provided for every batch.
Product Applications
While primarily designed for water treatment, our robust turntable bearings are versatile.
-
Water & Wastewater Treatment:
-
Primary and Secondary Clarifiers
-
Sludge Thickeners
-
Sedimentation Tanks
-
Scraper Bridge Drives
-
Industrial Processing:
-
Mining Thickeners
-
Chemical Mixing Tanks
-
Heavy Machinery:
-
Small-scale Crane Turntables
-
Excavator Swing Circles (Mini/Midi)
-
Positioning Tables
Our Services
At ZZ, we don't just sell bearings; we provide engineering solutions.
-
OEM & ODM Support: We can reverse-engineer obsolete bearings or design new units based on your specific load calculations and spatial constraints.
-
Rapid Prototyping: Fast sampling for custom gear profiles or flange designs.
-
Technical Consultation: Our engineers assist in selecting the right material and seal type based on your operating environment (e.g., saline water vs. fresh water).
-
Global Logistics: Secure, waterproof packaging ensuring your bearings arrive in perfect condition, anywhere in the world.
Frequently Asked Questions (FAQ)
Q1: What is the difference between a single-row and double-row clarifier bearing?
A single-row four-point contact ball bearing is lighter and suitable for moderate loads. A double-row ball or three-row roller bearing offers significantly higher load-carrying capacity and rigidity, making them ideal for large-diameter clarifiers with heavy scraper bridges.
Q2: Can you manufacture bearings for highly corrosive environments (e.g., seawater desalination)?
Yes. For highly corrosive environments, we recommend using Duplex Stainless Steel or applying specialized coatings like Dacromet. We also utilize Viton seals which resist chemical degradation better than standard rubber.
Q3: How do I determine the correct replacement bearing for my clarifier?
You will need to provide:
-
The inner and outer diameter.
-
The height (thickness) of the bearing.
-
The number and size of mounting bolt holes.
-
Whether you require external gear teeth (and the module/pitch if known).
Photos of the nameplate or the old bearing are always helpful.
Q4: What is the lead time for a custom clarifier bearing?
Standard models are often available for immediate shipment. For custom-manufactured units, the typical lead time ranges from 4 to 8 weeks, depending on the complexity of the machining and material availability.
Q5: Do you provide installation support?
Yes. We provide detailed installation manuals. For large-scale industrial orders, our technical team can provide remote guidance or on-site supervision to ensure proper mounting and alignment.
